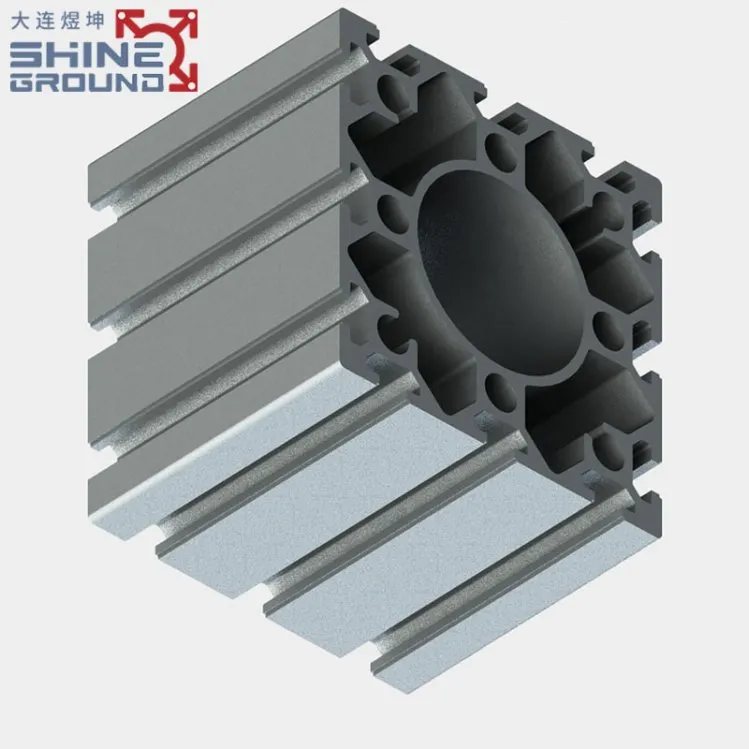

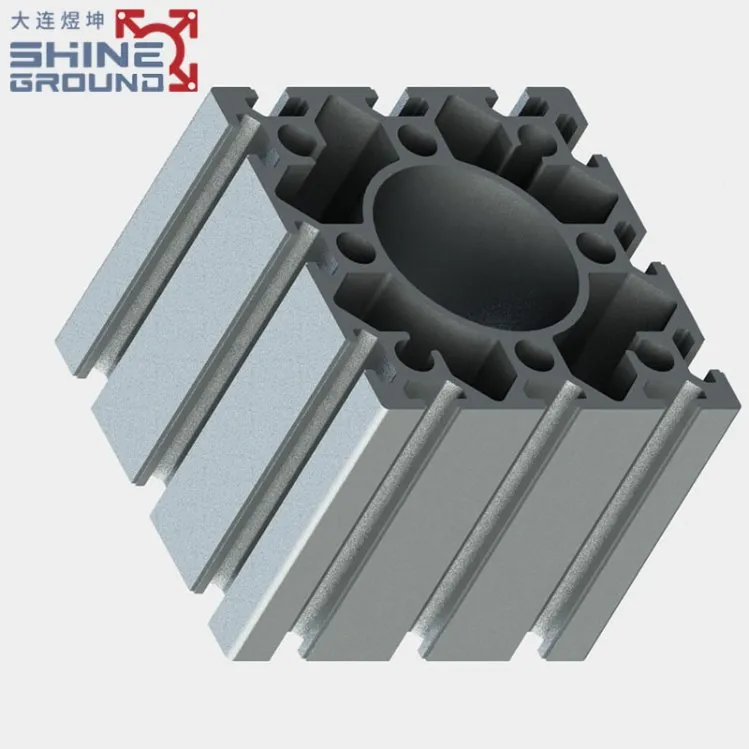

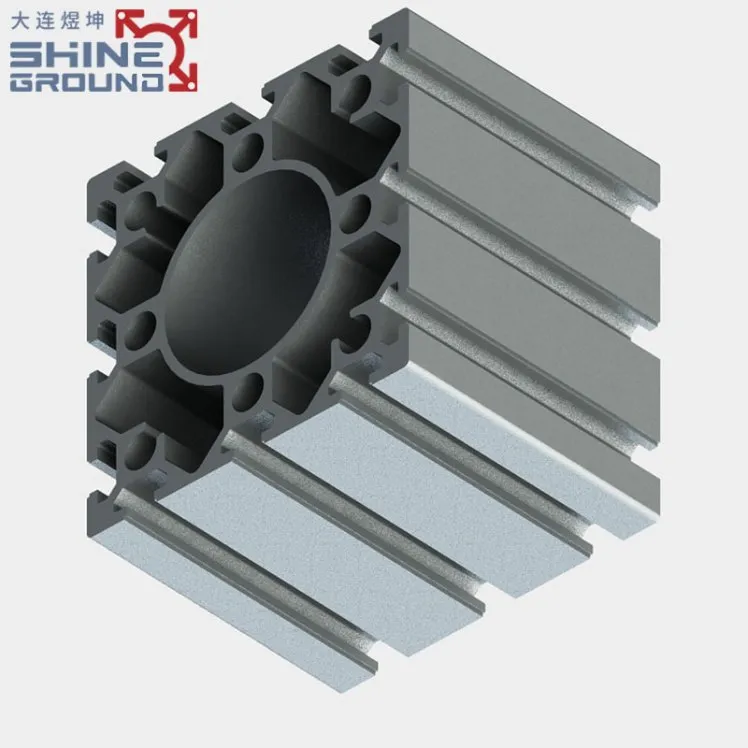

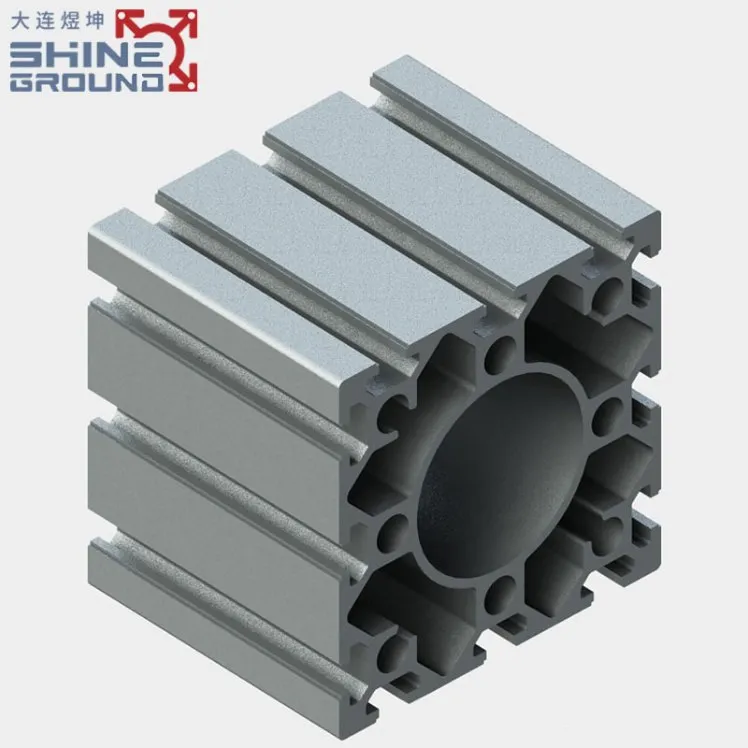

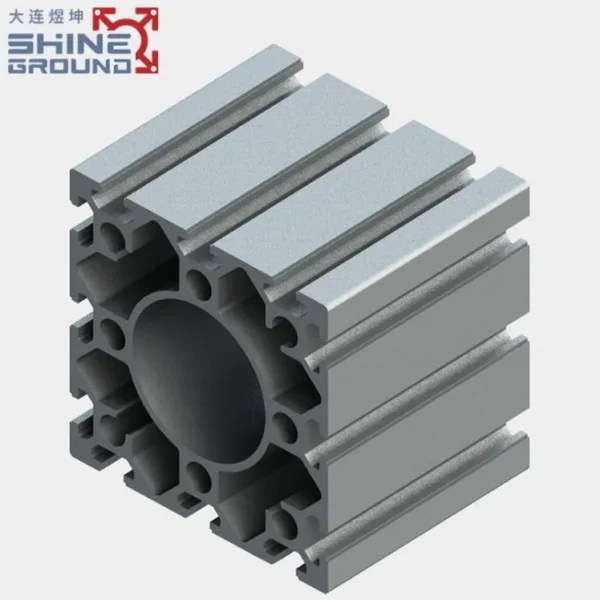

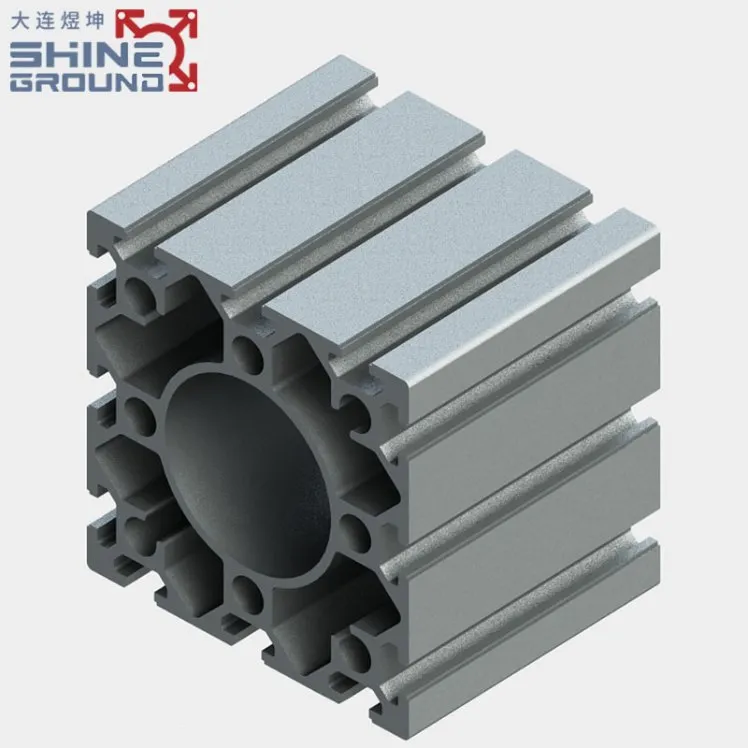

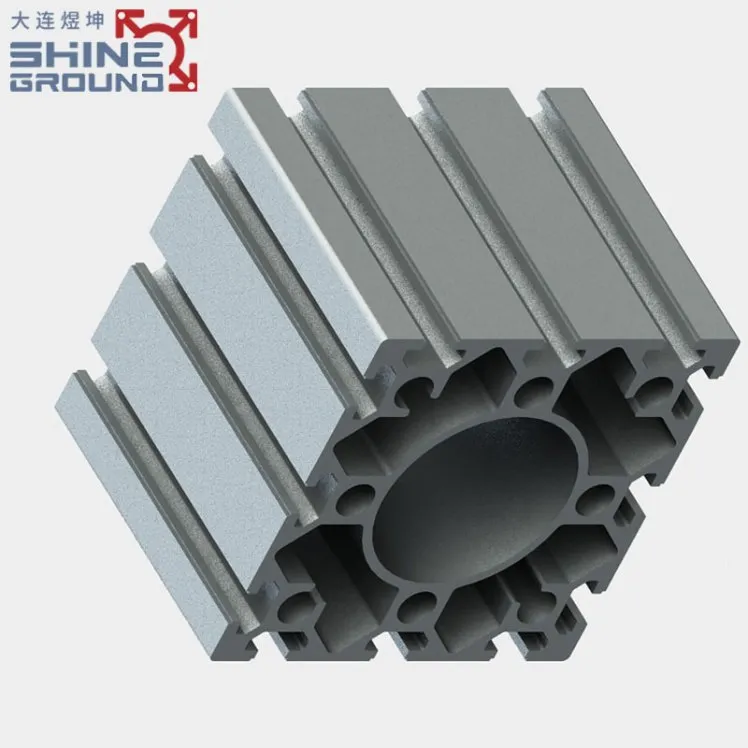

120x120mm 12-Slot T-Slot Aluminum Profile

Category Strut Profile PG40

Robust 120x120mm aluminum profile with 12 T-slots. High-strength 6000-series alloy for heavy-load structural framing, automation, and modular machine builds. Custom lengths available.

Additional information

Model NO	SGAP1225
Type	Industrial Aluminium Profile
Shape	Square
Certification	CE, ISO
Alloy	6063
Color	Sliver, Black, Customized
MOQ	1 Meter
Surface	Anodic Oxidation

Product Detalis

The 120x120mm 12-Slot T-Slot Aluminum Profile is engineered for demanding industrial applications requiring robust structural support. Crafted from high-strength 6000-series aluminum alloy (e.g., 6063), this profile features precision-machined T-slots on all four faces, enabling versatile multi-directional component attachment. Ideal for heavy-load frameworks, automation equipment, and large-scale structural assemblies, it combines exceptional rigidity with modular flexibility for easy customization and reconfiguration.

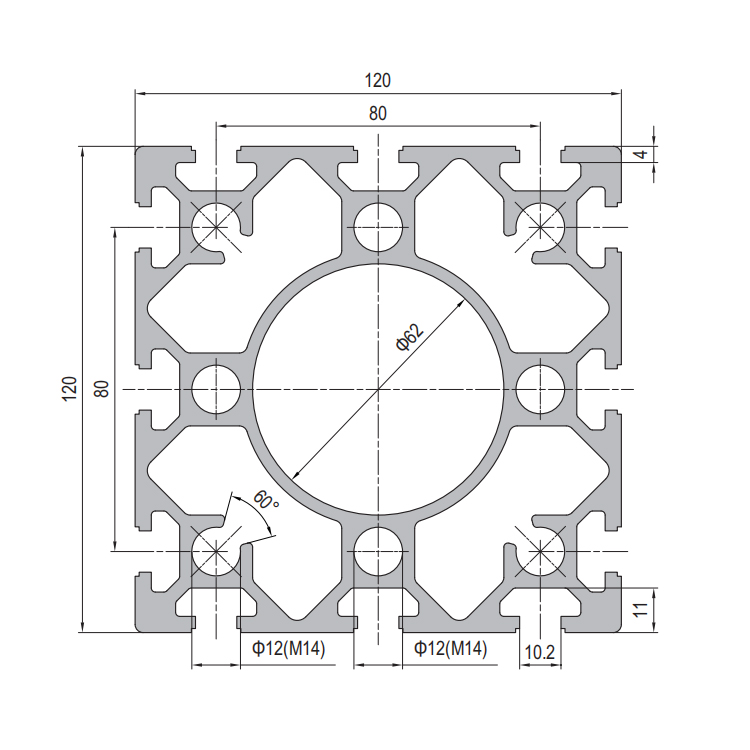

Dimensions & Slots: 120mm × 120mm cross-section with 12 T-slots (3 per face) for secure fastening.
High Strength: 6000-series alloy ensures superior load-bearing capacity and resistance to deformation.
Heavy-Duty Design: Optimized for maximum moment of inertia, supporting critical structural applications.
Modular Integration: Compatible with standard T-slot nuts, bolts, and accessories for rapid assembly.
Multi-Directional Mounting: Slots on all sides allow component attachment from any angle.
Durable Finish: Options include mill finish or corrosion-resistant anodizing for longevity.
Precision Engineering: Tight tolerances (±0.5mm) ensure consistent geometry and reliable assembly.
Customization: Supplied in standard 6m lengths, with cut-to-size options available.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
Strut Profile PG40 40×40 R90 2 slots	8.3	8.3	3	1.9	1.3	RT1.11.40.040040.R90.02
Strut Profile P40 40×40 1 slots	10.4	10.4	5.2	5	1.7	RT1.11.40.040040.01
Strut Profile PG40 40×40 2 slots Type A	9.6	9.6	4.5	4.5	1.5	RT1.11.40.040040.02A
Strut Profile PG40 40×40 2 slots Type B	9.6	8.6	4.8	4.3	1.5	RT1.11.40.040040.02B
Strut Profile PG40 40×40 3 slots	9.1	8.6	4.5	4.3	1.5	RT1.11.40.040040.03
Strut Profile PG40 40×40 4 slots Super Light	7.3	7.3	3.6	3.6	1.3	RT1.11.40.040040.04SL
Strut Profile PG40 40×40 4 slots Light	8.6	8.6	4.3	4.3	1.5	RT1.11.40.040040.04L
Strut Profile PG40 40×40 4 slots	9.1	9.1	4.6	4.6	1.6	RT1.11.40.040040.04
Strut Profile PG40 40×40 4 slots Heavy	11.5	11.5	5.8	5.8	2	RT1.11.40.040040.04H
Strut Profile PG40 40×60 4 slots	13.3	27.6	6.6	9.2	2.3	RT1.11.40.040060.04
Strut Profile PG40 40×80 6 slots Super Light	14.3	52	7.2	13	2.3	RT1.11.40.040080.06SL
Strut Profile PG40 40×80 6 slots Light	15.8	59.1	7.9	14.8	2.5	RT1.11.40.040080.06L
Strut Profile PG40 40×80 6 slots	16.6	63.2	8.3	15.8	2.7	RT1.11.40.040080.06
Strut Profile PG40 40×80 6 slots Heavy	22.2	80.8	11.1	20.2	3.6	RT1.11.40.040080.06H
Strut Profile PG40 40×120 8 slots	24.1	194.9	12.1	32.5	3.8	RT1.11.40.040120.08
Strut Profile PG40 40×120 8 slots Heavy	33	255.3	16.5	42.6	5.2	RT1.11.40.040120.08H
Strut Profile PG40 40×160 10 slots	31.6	435.7	15.8	54.5	4.8	RT1.11.40.040160.10
Strut Profile PG40 40×160 10 slots Heavy	43.7	582.2	21.8	72.8	6.8	RT1.11.40.040160.10H
Strut Profile PG40 80×80 8 slots	109.9	109.9	27.5	27.5	4.2	RT1.11.40.080080.08
Strut Profile PG40 80×80 8 slots Heavy	148.2	148.2	37.1	37.1	5.7	RT1.11.40.080080.08H
Strut Profile PG40 80×80 R90 6 slots	109.5	36.4	19.6	10.2	3.4	RT1.11.40.080080.R90.06
Strut Profile PG40 80×80 L 8 slots	111.8	56	20.1	11.9	4	RT1.11.40.080080L.08
Strut Profile PG40 80×120 10 slots	222.1	449.2	55.5	74.8	8.3	RT1.11.40.080120.10
Strut Profile PG40 80×160 12 slots	287.5	975.5	71.9	121.9	10.4	RT1.11.40.080160.10
Strut Profile PG40 80×200 14 slots	353.1	1789.8	88.3	179	12.3	RT1.11.40.080200.14
Strut Profile PG40 120×120 12 slots	659.1	659.1	109.9	109.9	11.5	RT1.11.30.120120.12
