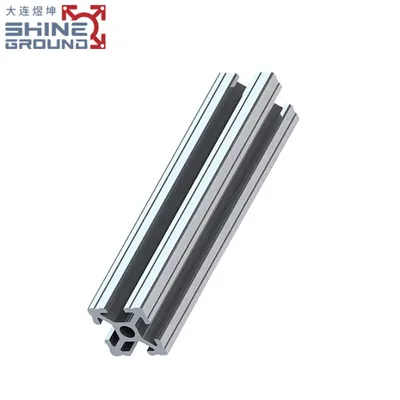

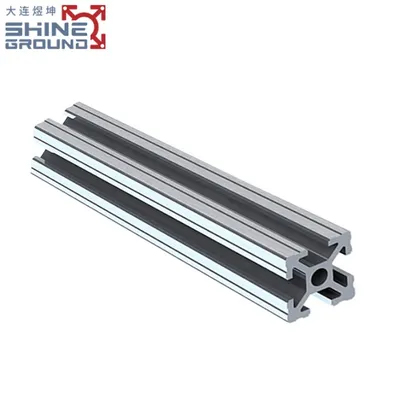

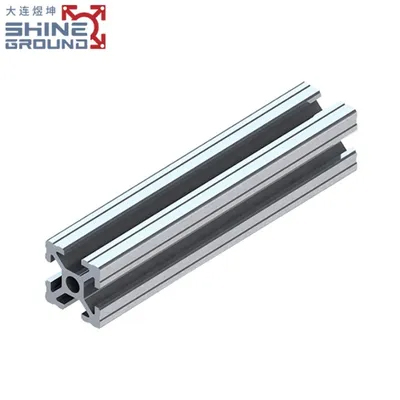

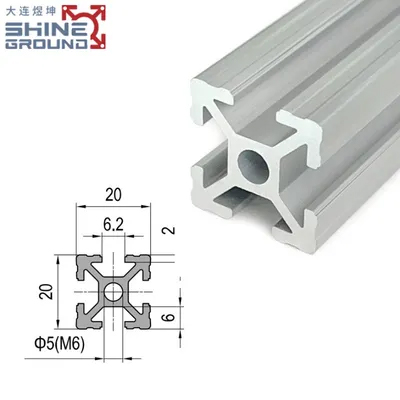

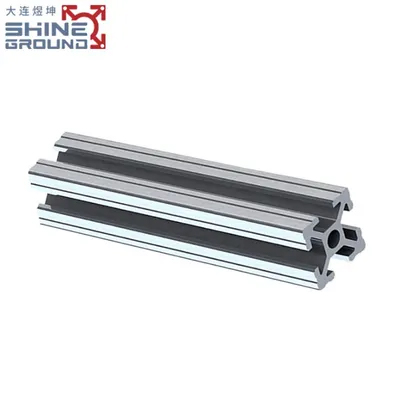

2020 T-Slot Aluminum Extrusion Profile

Category Strut Profile PG20

2020 T-slot aluminum extrusion profile made from 6063 alloy, featuring four T-slots for modular assembly. Offers high corrosion resistance, 200kg/m load capacity, and customizable lengths up to 6 meters. Ideal for industrial framing, workstations, and automated equipment.

Product Detalis

This 2020 T-slot aluminum extrusion profile is a square-shaped structural framing solution designed for industrial applications. Made from 6063 aluminum alloy, it features four integrated T-slots for seamless modular assembly. Ideal for constructing machine frames, workstations, conveyor systems, and protective enclosures, it combines lightweight durability with high load-bearing capacity (up to 200kg/m).

Material: 6063 aluminum alloy for strength and corrosion resistance.
Surface Finish: Anodized coating enhances wear resistance and longevity.
Design: Four T-slots enable flexible attachment of fittings, panels, and accessories.
Customization: Available in standard 6-meter lengths or custom-cut sizes.
Applications: Suitable for automation equipment, modular frameworks, and safety guards.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
Strut Profile PG20 20×20 R90 2 slots	0.6	0.6	0.5	0.5	0.45	RT1.11.20.020020.R90.02
Strut Profile PG20 20×20 4 slots	0.8	0.8	0.8	0.8	0.5	RT1.11.20.020020.04
Strut Profile PG20 20×40 6 slots	1.4	5.1	1.4	2.5	0.9	RT1.11.20.020040.06
Strut Profile PG20 20×60 8 slots	2	15.8	2	5.3	1.3	RT1.11.20.020060.08

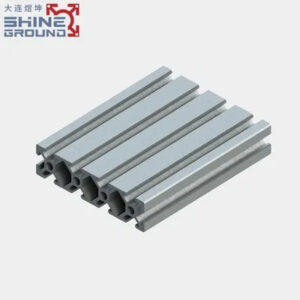

Strut Profile PG20 20×80 10 slots	2.6	35.9	2.6	9	1.7	RT1.11.20.020080.10

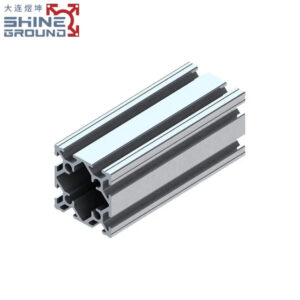

Strut Profile PG20 40×40 8 slots	8.9	8.9	4.5	4.5	1.3	RT1.11.20.040040.08

Product Information
Model NO.	SGAP0101	Type	Industrial Aluminium Profile
Shape	Square	Certification	CE, ISO
Alloying Ingredient	6063	Color	Sliver, Black, Customized
MOQ	1 Meter	Surface Finishing	Anodic Oxidation
