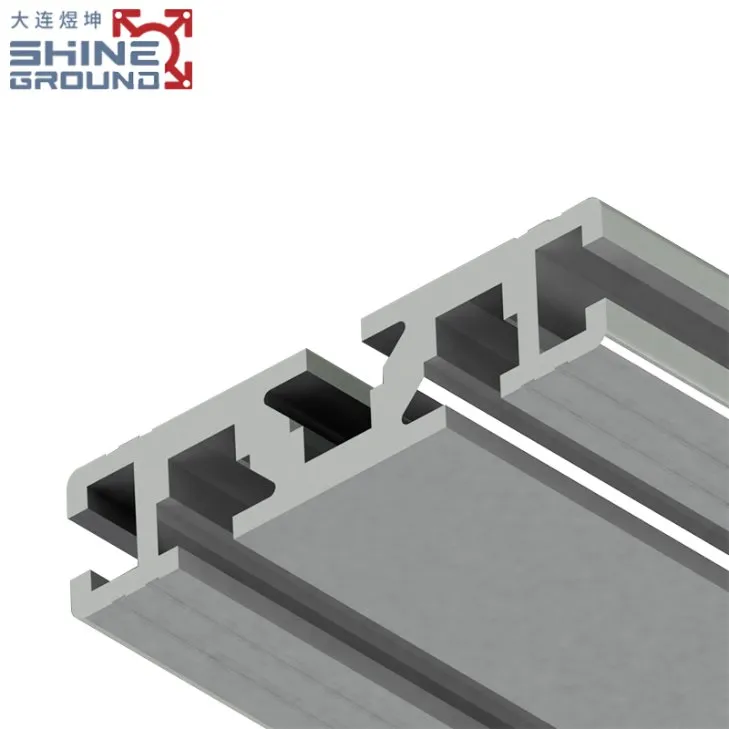

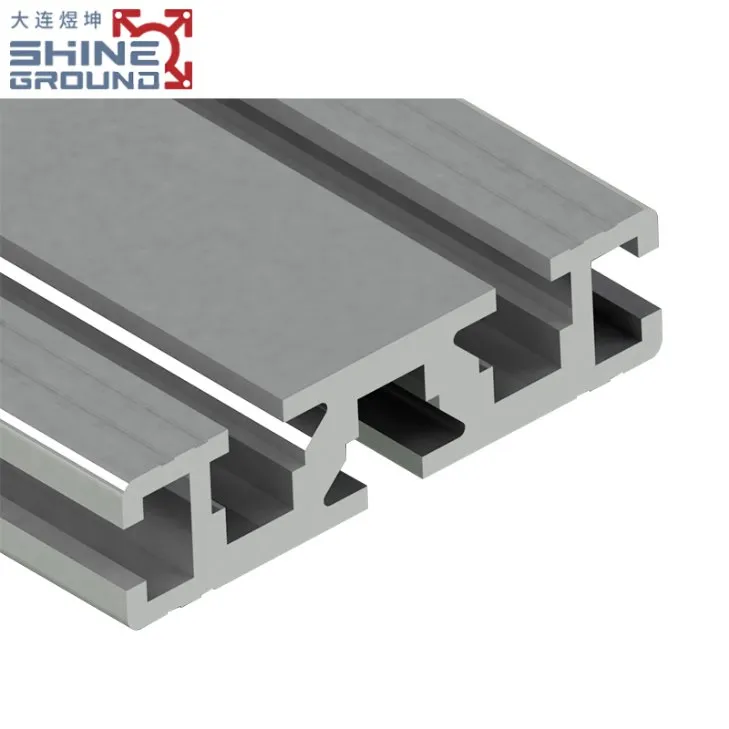

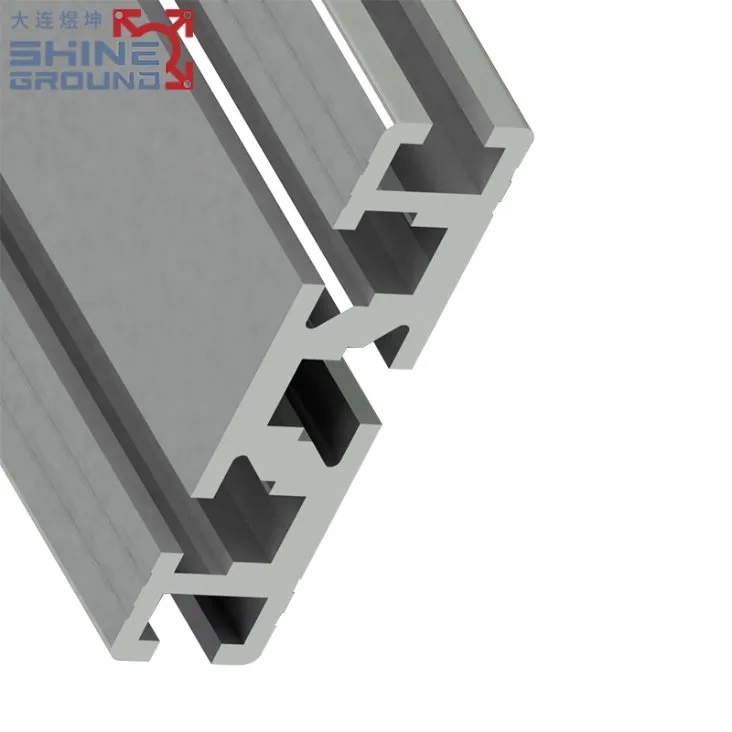

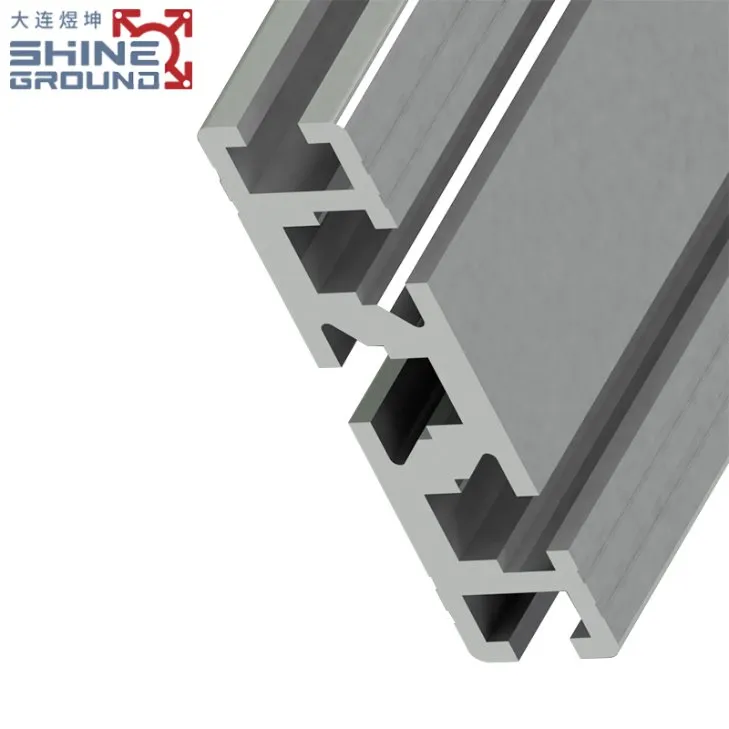

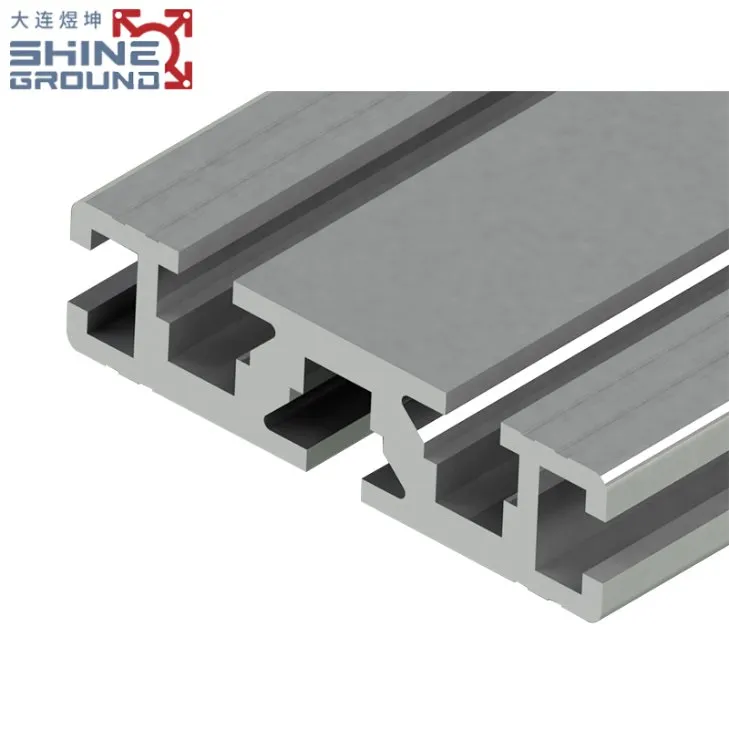

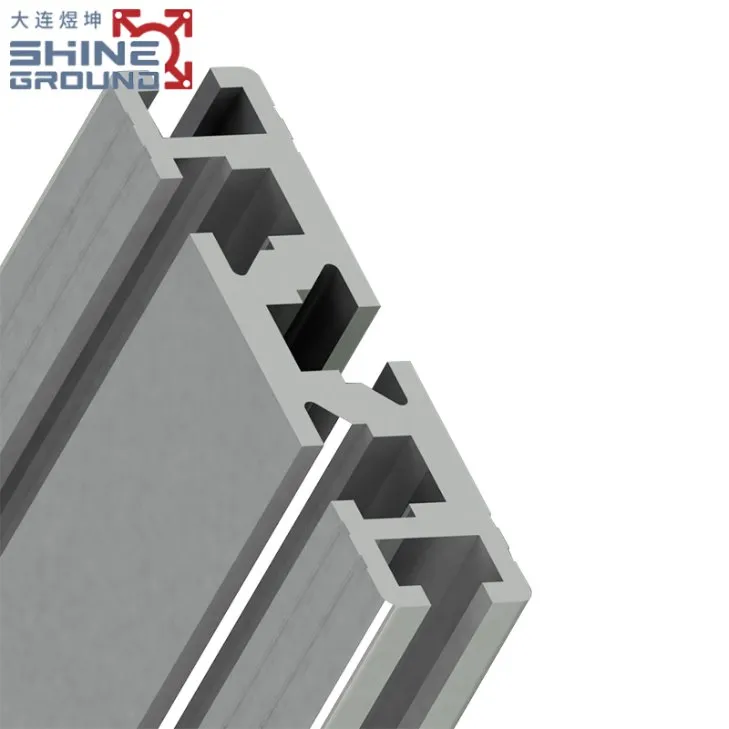

20x80mm T-Slot Aluminum Extrusion Profile

Aluminum Guide Rail Profiles
Aluminum Guide Rail Profiles
Aluminum Guide Rail Profiles
Aluminum Guide Rail Profiles
Aluminum Guide Rail Profiles
Aluminum Guide Rail Profiles
Aluminum Guide Rail Profiles
Aluminum Guide Rail Profiles

Category:

Tag: , ,

Industrial 20x80mm aluminum extrusion with 5 T-slots. Durable anodized finish, modular design, and high rigidity for CNC beds and assembly frames.

Customized services

Aluminum Factory

Spot goods

1-hour reply

Multiple Payment

Flexible Packaging

Ask For A Quote Online
Email Us
Whatsapp

Description

This 20x80mm aluminum extrusion features a high-density 5-slot design on its wide face, offering a stable and versatile foundation for modular construction. Crafted from high-strength aluminum alloy with an anodized finish, this profile provides a professional look while resisting wear and corrosion. Its flat, wide geometry makes it an essential component for engineers and builders who require a broad mounting surface without the bulk of larger square profiles.

  1. Five Integrated Slots: Provides multiple attachment points across an 80mm span for mounting sensors, brackets, and accessories simultaneously.
  2. Modular Assembly: Eliminates the need for welding; users can build, adjust, and disassemble structures using standard T-nuts and bolts.
  3. Structural Precision: Maintains strict tolerances to ensure perfectly flat surfaces for CNC beds, laser cutters, and linear motion tracks.
  4. High Strength-to-Weight Ratio: Delivers excellent horizontal rigidity while remaining lightweight enough for mobile frames and portable workstations.
  5. Durable Surface: The smooth anodized coating protects against oxidation and simplifies cleaning in industrial environments.

Additional information

Material

6063

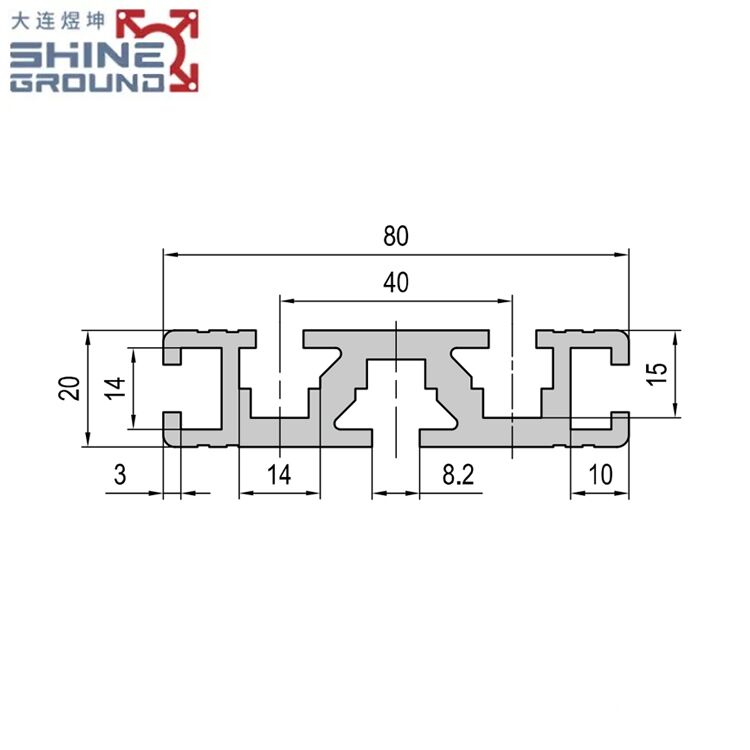

Size

20*80 mm
Surface Finishing

Anodic Oxidation
Certification

CE, ISO
MOQ

1 Meter

Reviews

There are no reviews yet.

Be the first to review “20x80mm T-Slot Aluminum Extrusion Profile”

Your email address will not be published. Required fields are marked *

High-Performance Industrial Aluminum Solutions

Heavy-Duty Industrial Equipment

• Structural Machinery Frames: Precision-engineered for the secure support of high-capacity machinery, including industrial compressors, hydraulic pumps, and heavy conveyor belts.

• Impact-Resistant Safety Systems: Robust guardrails and protective barriers designed to maintain structural integrity under high-impact conditions in factory environments.

> Core Specification: Optimized for maximum load-bearing capacity and long-term vibration resistance.

Precision Mechanical & Robotic Assembly

• Robotic Frameworks: Ultra-stable skeletal structures for multi-axis robots and high-speed automated lines requiring zero-deflection performance.

• Modular Engineering Systems: High-precision components for industrial workbenches, tool racks, and modular conveyor modules.

> Precision Standard: T-slot tolerance maintained at ±0.1mm for seamless integration with global linear systems.

Structural Transportation Components

• Transit Assembly: High-strength structural profiles for automotive chassis, railcar interior framing, and aerospace body components.

• Heavy-Duty Brackets: Load-securing brackets designed to support critical equipment within transit vehicles under dynamic stress conditions.

> Material Strength: 6063-T5/T6 alloy grades achieving tensile strength of 25,000+ PSI.

Logistics & Heavy-Capacity Warehousing

• High-Load Storage: Specialized profiles for heavy-duty pallet racks and automated storage/retrieval systems (AS/RS).

• Conveyor Framing: Durable support structures for high-speed sorting belts and automated logistics infrastructure.

> Durability: Superior structural rigidity to prevent sagging and misalignment in long-span installations.

Resilient Agricultural Infrastructure

• Reinforced Frameworks: Corrosion-resistant structural framing designed for extreme wind and snow loads in commercial greenhouses.

• Irrigation Systems: Support structures for heavy-duty piping and automated farming equipment.

> Corrosion Resistance: Specialized surface treatments for enhanced stability in high-humidity environments.

Product complete life cycle service

Step I: Series Selection & Stock Check

• Instant Inventory Verification: Access our massive stock of 2020-100100 series profiles. We provide real-time availability and technical drawings within 1 hour to keep your project moving.

• Global Standard Compatibility: Our standard profiles are strictly manufactured to international T-slot/V-slot standards, ensuring 100% compatibility with existing European and US systems.

> Objective: Rapid identification of standard profiles and immediate inventory commitment.

Step II: Precision Cutting & Processing

• Automated Sizing Service: We offer free high-precision cut-to-length services using industrial CNC sawing lines, maintaining a strict tolerance of ±0.1mm for perfect frame alignment.

• Standard Secondary Operations: Rapid drilling, tapping, and counter-boring based on standard connection kits (T-nuts, Brackets) to simplify your onsite assembly.

> Objective: Pre-processed standard components ready for immediate mechanical assembly.

Step III: Rapid Fulfillment & Shipping

• 48-Hour Rapid Dispatch: Standard profiles and matching accessories are packed and dispatched within 48 hours. We prioritize shipping speed for high-turnover inventory items.

• Sea-Worthy Protective Packing: Heavy-duty, multi-layer packaging designed for long-distance transit to ensure surface finish (Anodized/Powder Coated) remains scratch-free.

> Objective: Minimized lead times and secure delivery of structural frameworks.

Step IV: Supply Chain & Accessory Support

• Full-Spectrum Accessory Kit: One-stop sourcing for over 2,000+ standard accessories, including connectors, fasteners, and floor elements, ensuring a complete modular solution.

• Material Traceability (MTC): Every batch is supplied with Material Test Certificates, guaranteeing the chemical composition and mechanical properties of our 6063-T5 alloys.

> Objective: Long-term supply consistency and certified material reliability for industrial modularity.

FAQ

Q1: Are you an aluminum profile manufacturer or supplier?

A: We are an aluminum profile manufacturer with production base, that means we can control every step in processing. That allows us to provide stable quality, competitive price and reliable delivery time.

Q2: What is the MOQ for aluminum profiles?

A: For our standard aluminum profiles and accessories in stock, there is no MOQ—we support orders starting from even 1 piece for immediate dispatch. For customized extrusion projects, we prioritize large-scale industrial production with a typical MOQ of 500kg to 1,000kg per profile. As our facility is optimized for high-volume standardized output, we generally do not accept small-scale custom orders. If you have a large-volume custom requirement, please provide your blueprints for a strategic capacity evaluation. For all other modular needs, we highly recommend selecting from our 200+ standard series for the best cost-efficiency and zero lead time.

Q3: How long does aluminum extrusion production take?

A: Typical lead time for aluminum extrusion orders: Mold development: 7–10 working days. Sample production: around 3 days. Mass production: 10–12 working days

Q4: What is the tolerance of your aluminum profile cutting service?

A: Our aluminum profile cutting tolerance can reach ±0.05 mm with CNC machining. We also provide additional processing services such as drilling, tapping, chamfering, and deburring to meet assembly requirements.

Q5: Do you provide aluminum profile accessories and assembly systems?

A: Yes, we provide a one- stop aluminum profile purchasing including: Brackets and connectors T-bolts and fasteners Hinges, slides, and casters End caps and decorative parts This helps customers build full structures without sourcing from multiple suppliers.

Q6: What are your payment terms for international orders?

A: Our standard payment terms are: 50% deposit and 50% balance before shipment For long-term cooperation, we can offer 30% deposit and balance against B/L copy.

Q7: How do you ensure aluminum profile quality?

A: We follow a strict quality control system, our factory operates under ISO9001 standards, and third-party inspection (such as SGS) is available upon request.
