30 series standard frame profiles are commonly used in frame structures with moderate loads such as workbenches, material carts, factory workshop partitions, display racks, and material racks.
| System | Industrial aluminum profile modular assembly system |
|---|---|
| Profile series | Strut profile PG30 |
| Material | 6063-T6 |
| Surface | Anodized(Cut section not anodized) |
| Color | Silver |
| Effective length | 6000mm |

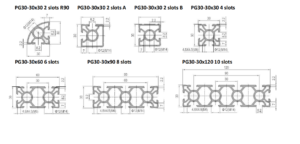

The 30 series standard frame profiles are industrial aluminum profiles with a groove width of 8.2mm and a central aperture of Φ12. This series includes 3030 profiles, 3060 profiles, 3090 profiles, 30120 profiles, 30150 profiles and 6060 profiles.
European standard 30 industrial aluminum profiles are widely used in frame combinations of medium-load structures with high stress, high strength, and high support requirements. The surface has decorative lines, which can effectively avoid reflection while being beautiful.
The matching connectors can usually use special anchor connecting pins for 30 profiles, and connect through internal hidden methods, or connect at fixed angles through angle aluminum. The structure is strong and reliable, and it is one of the widely used profiles for moderate load structures.
| Description | Moment of Inertialx(cm4) |
Moment of Inertialy(cm4) |
Moment of ResistanceWx(cm3) |
Moment of ResistanceWy(cm3) |
Mass
(kg/m) |
Part No. |

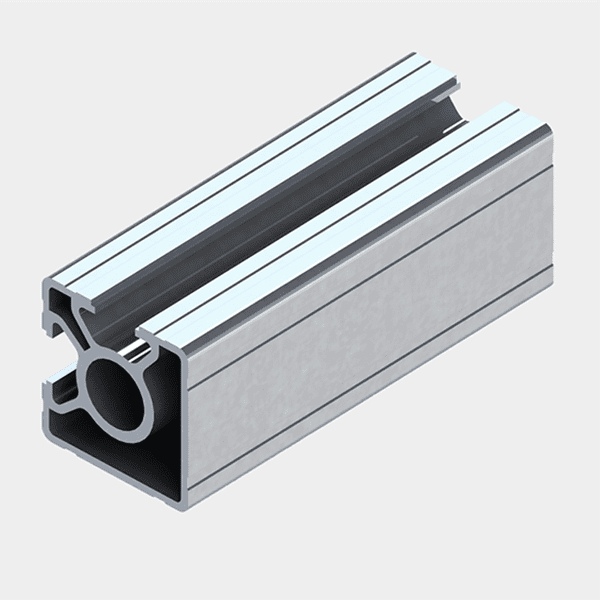

| Strut Profile 30×30 2 slots, Type A | 2.6 | 2.6 | 1.3 | 1.2 | 0.85 | 30.1.030030.02.01 |

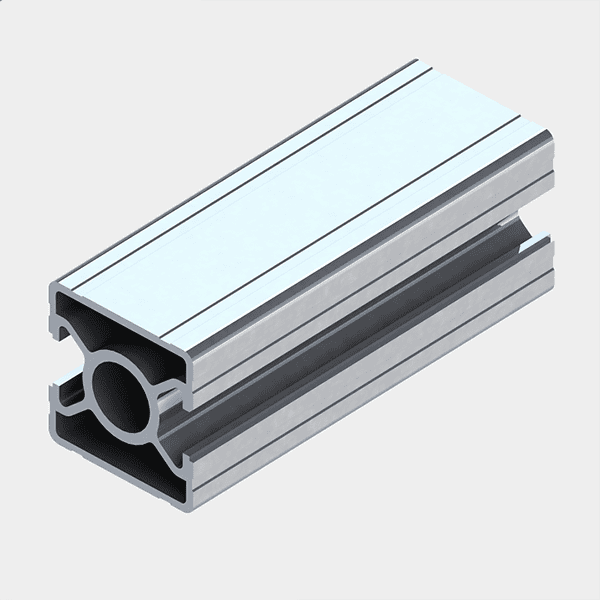

| Strut Profile 30×30 2 slots, Type B | 2.7 | 2.6 | 1.8 | 1.7 | 0.85 | 30.1.030030.02.02 |

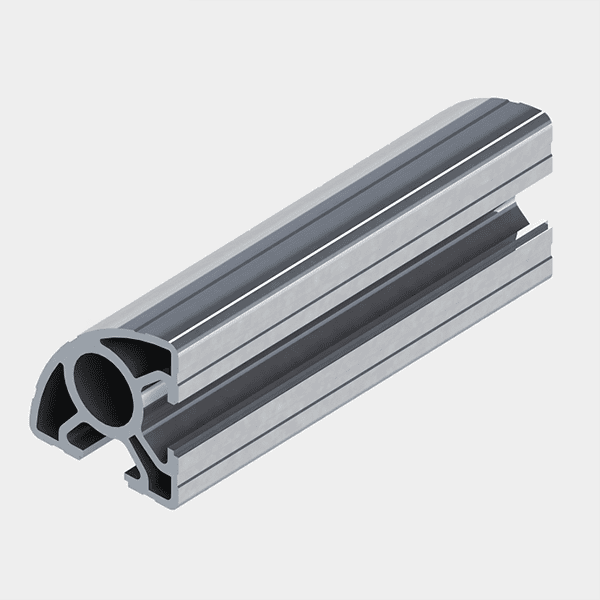

| Strut Profile 30×30 2 slots, R90 | 2.4 | 1.5 | 1.6 | 1 | 0.8 | 30.1.030030.02.90 |
| Strut Profile 60×60 8 slots | 35.3 | 35.3 | 11.8 | 11.8 | 2.7 | 30.1.060060.08 |

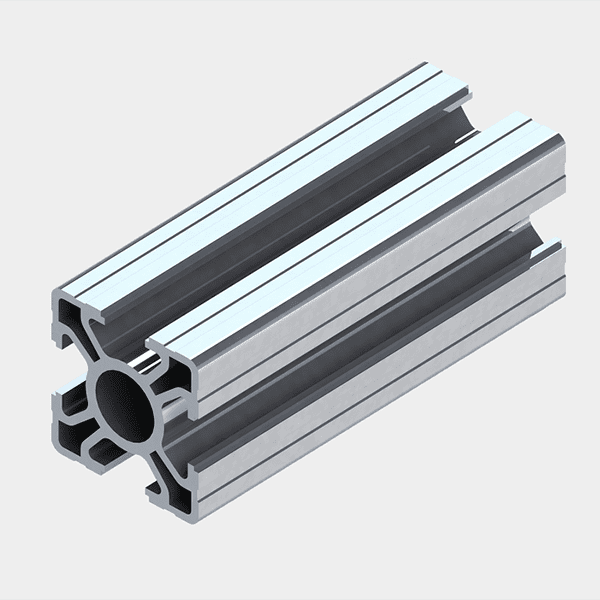

| Strut Profile 30×30 4 slots | 2.7 | 2.7 | 1.8 | 1.8 | 0.9 | 30.1.030030.04 |
| Strut Profile 30×60 6 slots | 5.3 | 19.5 | 3.5 | 6.5 | 1.6 | 30.1.030060.06 |
| Strut Profile 30×90 8 slots | 8.1 | 62.2 | 5.4 | 13.9 | 2.3 | 30.1.030090.08 |
| Strut Profile 30×120 10 slots | 10.9 | 142 | 7.2 | 23.7 | 3.1 | 30.1.030120.10 |
| Strut Profile 30×150 12 slots | 13.6 | 274.6 | 9.1 | 36.6 | 3.8 | 30.1.030150.12 |
