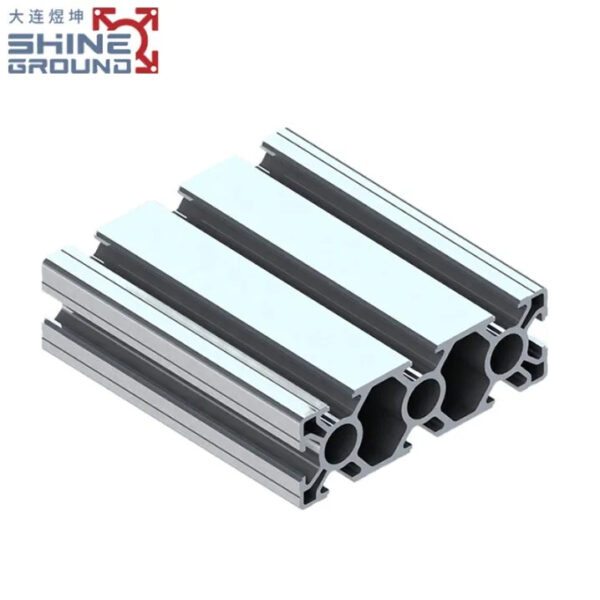

3090 T-Slot Aluminum Profile with 8 Slots

30x90mm T-slot aluminum profile with 8 grooves for industrial modular systems. High-strength 6000-series alloy, anodized finish, and precision-engineered slots for versatile structural assembly.

Product Information
Model NO. SGAP0206 Type Industrial Aluminium Profile
Shape Square Certification CE, ISO
Alloying Ingredient 6063 Color Sliver, Black, Customized
MOQ 1 Meter Surface Finishing Anodic Oxidation

Product Detalis

This T-slot aluminum profile (30x90mm) features 8 precision-engineered grooves for versatile modular assembly in industrial applications. Constructed from 6000-series aluminum alloy, it combines high strength with lightweight design, making it ideal for structural frameworks, automated machinery, and custom fabrication projects. The anodized surface ensures corrosion resistance and durability in demanding environments.

  1. ​8-Slot Design​​: Enables multi-directional component attachment for flexible configurations.
  2. ​High Strength-to-Weight Ratio​​: Optimized for load-bearing structures without excess mass.
  3. ​Corrosion-Resistant Finish​​: Anodized surface treatment enhances longevity in harsh conditions.
  4. ​Precision Machining​​: ±0.05mm dimensional accuracy ensures seamless assembly.
  5. ​Modular Compatibility​​: Works with standard T-slot nuts, bolts, and accessories.
  6. ​Customizable Length​​: Available in standard 6m lengths or custom-cut dimensions.



Description Moment of Inertia
lx(cm4)
Moment of Inertia
ly(cm4)
Moment of Resistance
Wx(cm3)
Moment of Resistance
Wy(cm3)
Mass
(kg/m)
Part No.
Strut Profile 30×30 2 slots, Type A 2.6 2.6 1.3 1.2 0.85 30.1.030030.02.01
Strut Profile 30×30 2 slots, Type B 2.7 2.6 1.8 1.7 0.85 30.1.030030.02.02
Strut Profile 30×30 2 slots, R90 2.4 1.5 1.6 1 0.8 30.1.030030.02.90
Strut Profile 60×60 8 slots 35.3 35.3 11.8 11.8 2.7 30.1.060060.08
Strut Profile 30×30 4 slots 2.7 2.7 1.8 1.8 0.9 30.1.030030.04
Strut Profile 30×60 6 slots 5.3 19.5 3.5 6.5 1.6 30.1.030060.06
Strut Profile 30×90 8 slots 8.1 62.2 5.4 13.9 2.3 30.1.030090.08
Strut Profile 30×120 10 slots 10.9 142 7.2 23.7 3.1 30.1.030120.10
Strut Profile 30×150 12 slots 13.6 274.6 9.1 36.6 3.8 30.1.030150.12
