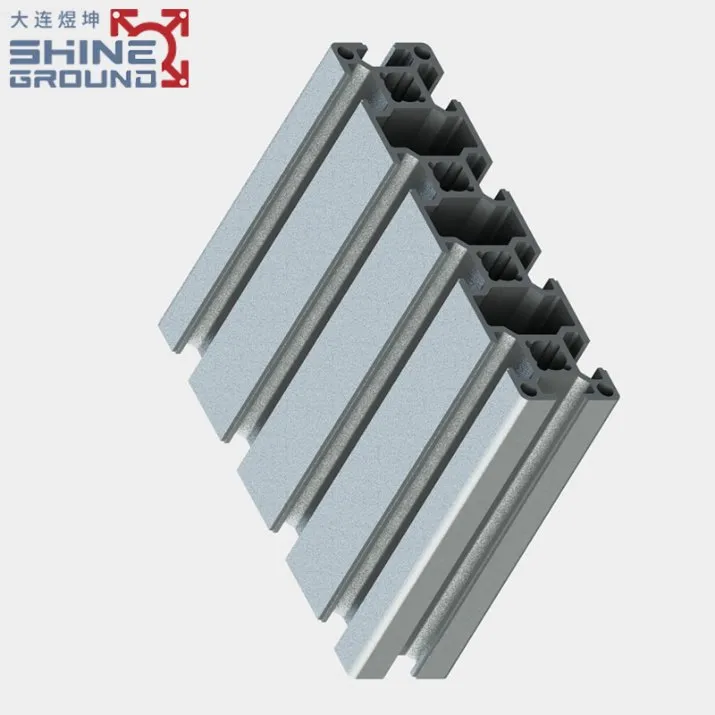

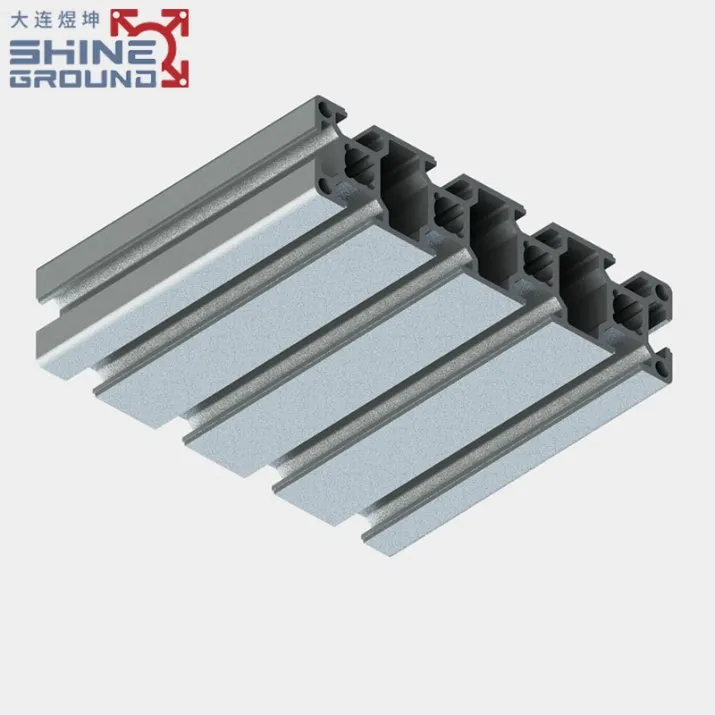

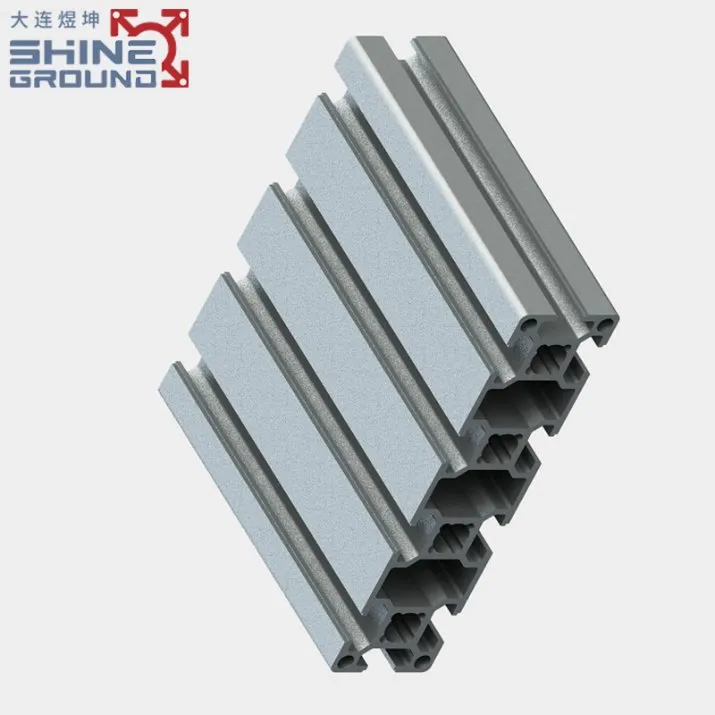

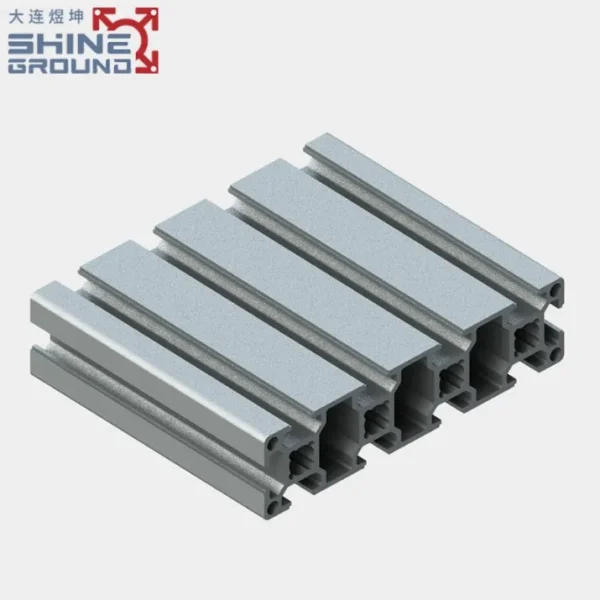

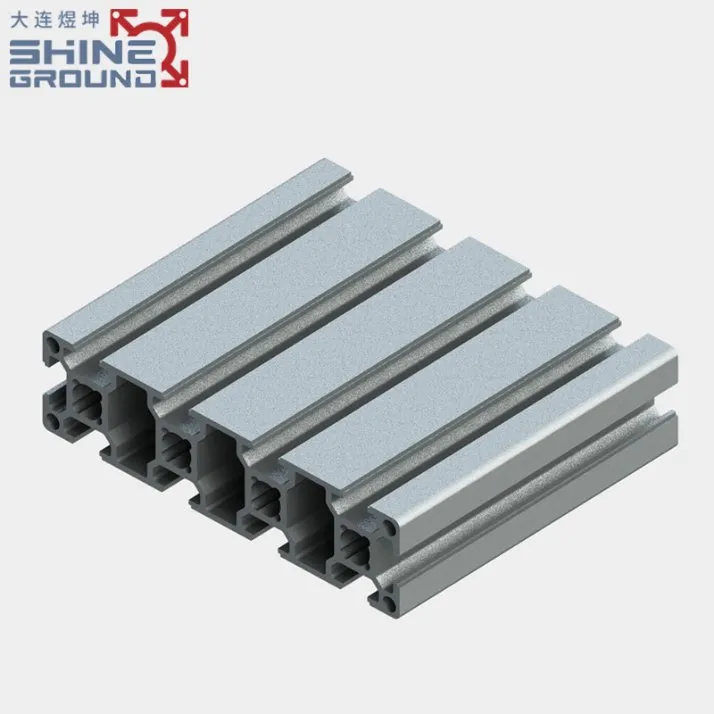

30×120 T-Slot Aluminum Extrusion Profile with 10 T-Slots

30x120 T-Slot Aluminum Extrusion Profile with 10 T-Slots
30x120 T-Slot Aluminum Extrusion Profile with 10 T-Slots
30x120 T-Slot Aluminum Extrusion Profile with 10 T-Slots
30x120 T-Slot Aluminum Extrusion Profile with 10 T-Slots
30x120 T-Slot Aluminum Extrusion Profile with 10 T-Slots
30x120 T-Slot Aluminum Extrusion Profile with 10 T-Slots
Category

30×120 V-slot aluminum extrusion with 10 T-slots for modular industrial frames. Multi-axis assembly, 6063-T5 alloy, anodized finish, CE/ISO certified. Custom lengths available.

Product Information
Model NO. SGAP1109 Type Industrial Aluminium Profile
Shape Square Certification CE, ISO
Alloying Ingredient 6063 Color Sliver, Black, Customized
MOQ 1 Meter Surface Finishing Anodic Oxidation

Additional information

Ask For a Quote
Send Made In China Inquiry

Product Detalis

This 30×120 T-slot aluminum extrusion profile features 10 integrated T-slots for versatile modular assembly in industrial applications. Designed for structural frameworks, automation systems, and custom machinery, the profile offers high strength-to-weight ratio and multi-axis fastening capabilities.

  1. 10 continuous T-slots for tool-less assembly from multiple angles
  2. Precision extruded 6063-T5 aluminum alloy construction
  3. Anodized surface treatment for corrosion resistance
  4. ±0.1mm/m dimensional accuracy for precision alignment
  5. Compatible with standard M6/M8 hardware components
  6. Thermal and electrical insulation properties
  7. Customizable lengths up to 6 meters
  8. CE/ISO certified manufacturing process



Description Moment of Inertia
lx(cm4)		 Moment of Inertia
ly(cm4)		 Moment of Resistance
Wx(cm3)		 Moment of Resistance
Wy(cm3)		 Mass
(kg/m)		 Part No.
 15×90 7 slots 1.4 40.4 1.9 9 1.5 RT1.11.30.015090.07
 30×30 R90 2 slots 2.5 1.6 1.2 0.9 0.8 RT1.11.30.030030.R90.02
 30×30 2 slots Type A 2.9 2.9 2 2 0.9 RT1.11.30.030030.02A
 30×30 2 slots Type B 2.8 3.2 1.9 2.1 0.9 RT1.11.30.030030.02B
 30×30 3 slots 3 2.9 2 1.9 0.9 RT1.11.30.030030.03
 30×30 4 slots Light 2.6 2.6 1.8 1.8 0.8 RT1.11.30.030030.04L
 30×30 4 slots 2.9 2.9 2 2 0.9 RT1.11.30.030030.04
 30×60 6 slots 5.3 19.9 3.5 6.7 1.6 RT1.11.30.030060.06
 30×90 8 slots 7.7 62 5.1 13.8 2.2 RT1.11.30.030090.08

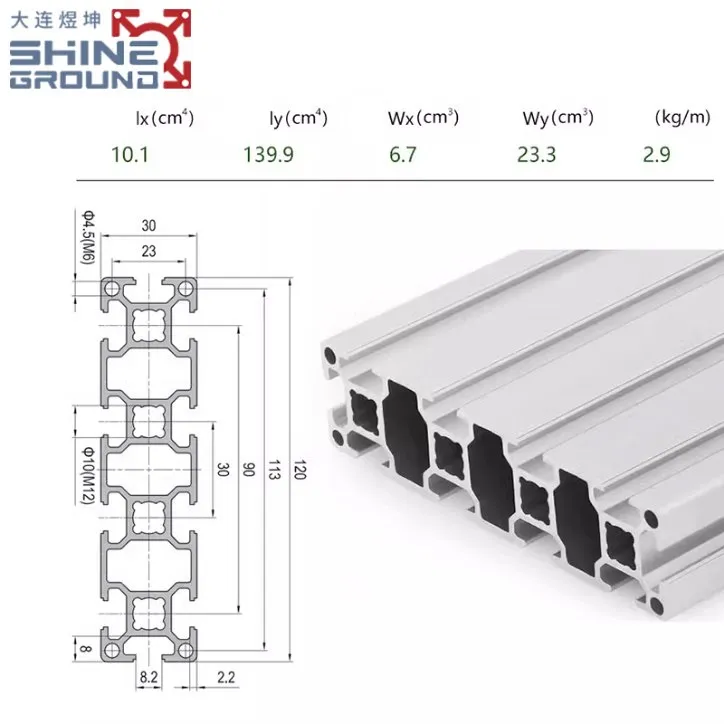

 30×120 10 slots 10.1 139.9 6.7 23.3 2.9 RT1.11.30.030120.10
 60×60 8 slots 35.3 35.3 11.8 11.8 2.5 RT1.11.30.060060.08
 60×60 L 8 slots 35.2 17.6 8.5 5 2.3 RT1.11.30.060060L.08
 60×120 12 slots 74.7 252.6 24.9 42.1 4.8 RT1.11.30.060120.12
