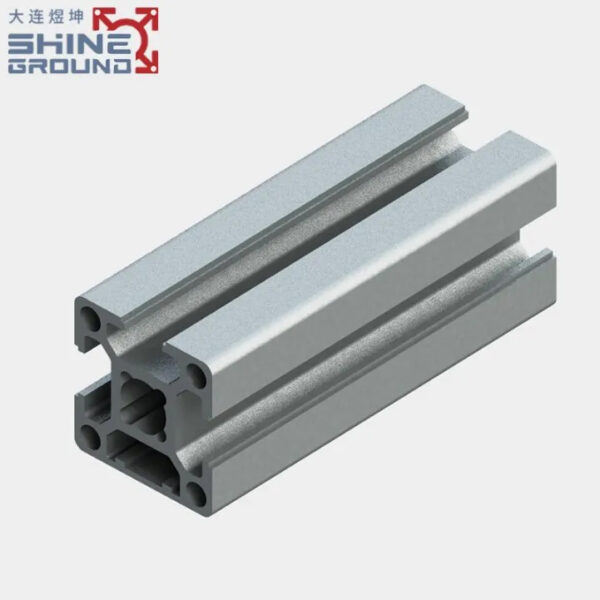

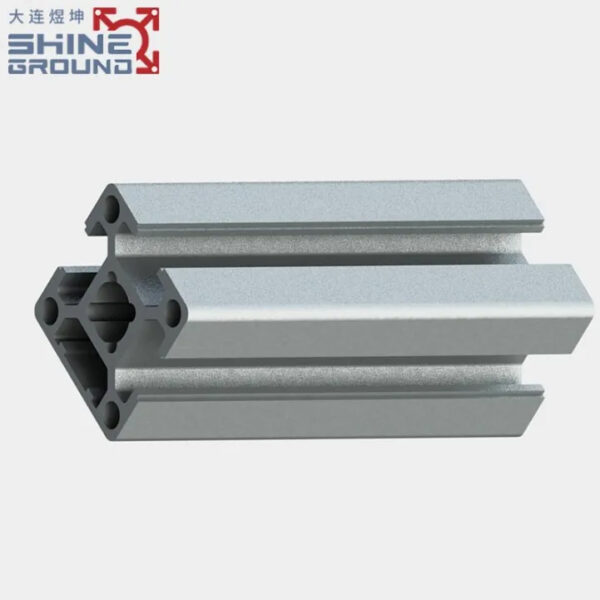

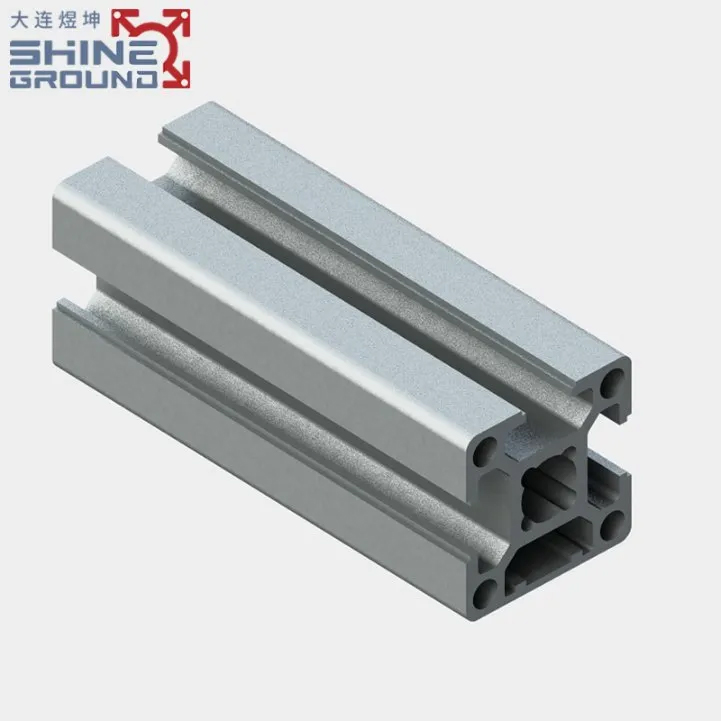

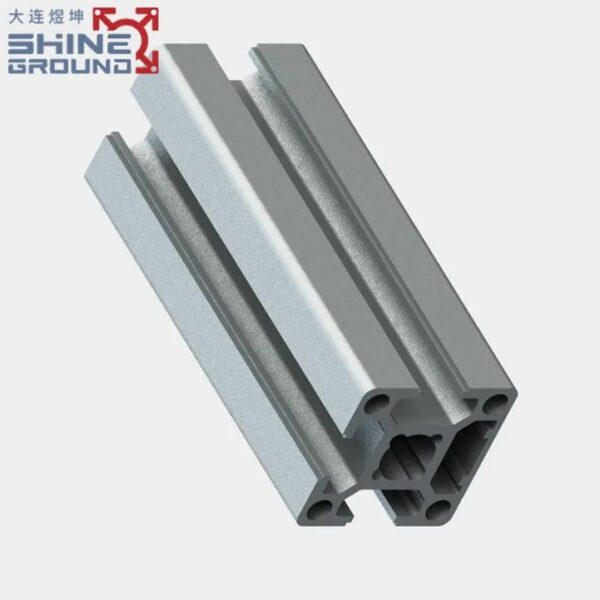

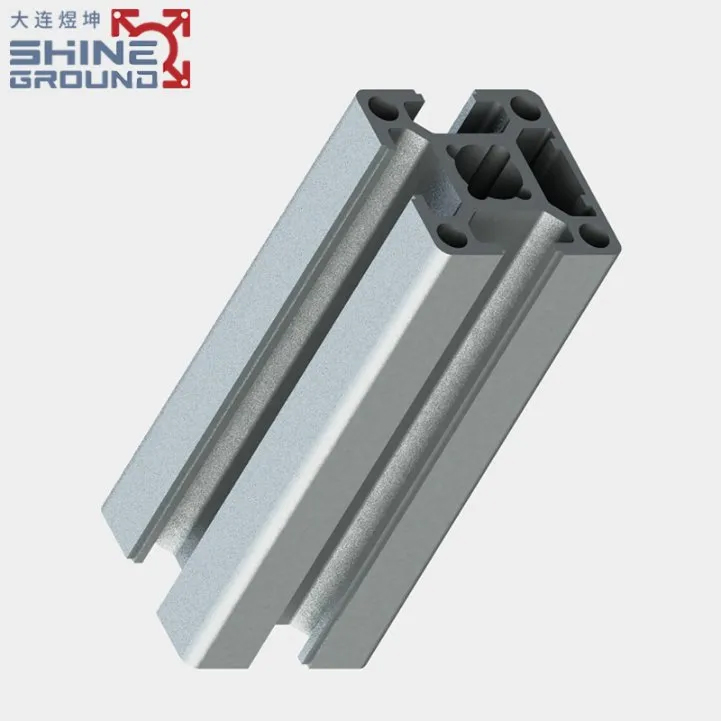

30×30 Aluminum Profile with 3 T-Slots

Versatile 30×30 aluminum profile with three T-slots for modular structures. Lightweight, durable, and corrosion-resistant, ideal for industrial, DIY, and machinery applications.

Product Information
Model NO. SGAP1103 Type Industrial Aluminium Profile
Shape Square Certification CE, ISO
Alloying Ingredient 6063 Color Sliver, Black, Customized
MOQ 1 Meter Surface Finishing Anodic Oxidation

Additional information

Product Detalis

This 30×30 aluminum profile is a versatile structural component designed for modular assembly in industrial, machinery, and DIY applications. Featuring three precision-engineered T-slots on each face, it enables easy integration of fasteners, panels, and accessories for customizable frameworks.

  1. ​Triple T-Slot Design:​​ Three evenly spaced T-slots per face for multi-directional component attachment and alignment flexibility.
  2. ​Standard 30 Series Dimensions:​​ 30mm x 30mm cross-section with consistent wall thickness ensures structural stability and compatibility with modular systems.
  3. ​High Precision Extrusion:​​ Tight dimensional tolerances (±0.1mm) guarantee seamless assembly and interchangeability.
  4. ​Corrosion-Resistant Alloy:​​ Anodized surface treatment enhances durability in demanding environments.
  5. ​Lightweight Strength:​​ Optimized aluminum alloy provides superior strength-to-weight ratio for portable yet robust structures.
  6. ​Multi-Scene Adaptability:​​ Compatible with brackets, connectors, and mounting hardware for machinery guards, workstations, automation equipment, and display systems.



Description Moment of Inertia
lx(cm4)
Moment of Inertia
ly(cm4)
Moment of Resistance
Wx(cm3)
Moment of Resistance
Wy(cm3)
Mass
(kg/m)
Part No.
 15×90 7 slots 1.4 40.4 1.9 9 1.5 RT1.11.30.015090.07
 30×30 R90 2 slots 2.5 1.6 1.2 0.9 0.8 RT1.11.30.030030.R90.02
 30×30 2 slots Type A 2.9 2.9 2 2 0.9 RT1.11.30.030030.02A
 30×30 2 slots Type B 2.8 3.2 1.9 2.1 0.9 RT1.11.30.030030.02B

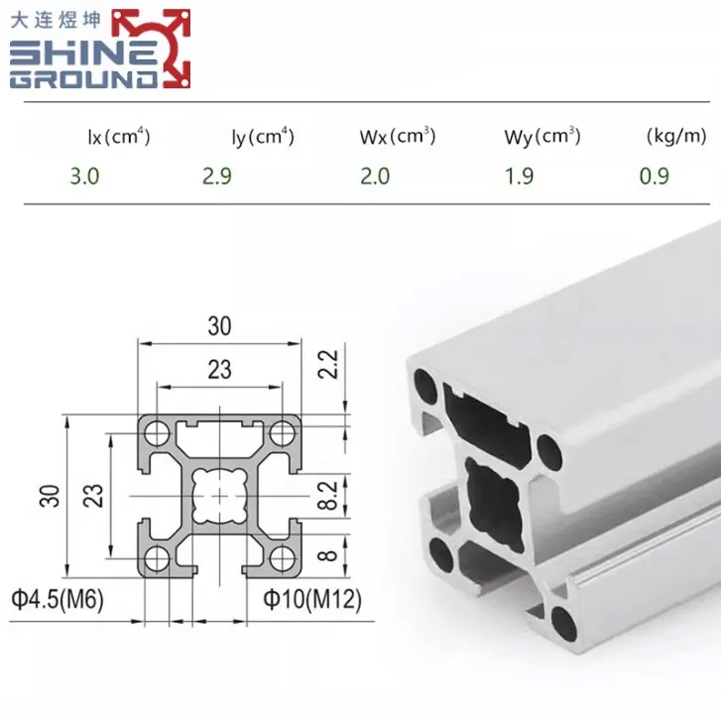

 30×30 3 slots 3 2.9 2 1.9 0.9 RT1.11.30.030030.03
 30×30 4 slots Light 2.6 2.6 1.8 1.8 0.8 RT1.11.30.030030.04L
 30×30 4 slots 2.9 2.9 2 2 0.9 RT1.11.30.030030.04
 30×60 6 slots 5.3 19.9 3.5 6.7 1.6 RT1.11.30.030060.06
 30×90 8 slots 7.7 62 5.1 13.8 2.2 RT1.11.30.030090.08
 30×120 10 slots 10.1 139.9 6.7 23.3 2.9 RT1.11.30.030120.10
 60×60 8 slots 35.3 35.3 11.8 11.8 2.5 RT1.11.30.060060.08
 60×60 L 8 slots 35.2 17.6 8.5 5 2.3 RT1.11.30.060060L.08
 60×120 12 slots 74.7 252.6 24.9 42.1 4.8 RT1.11.30.060120.12
