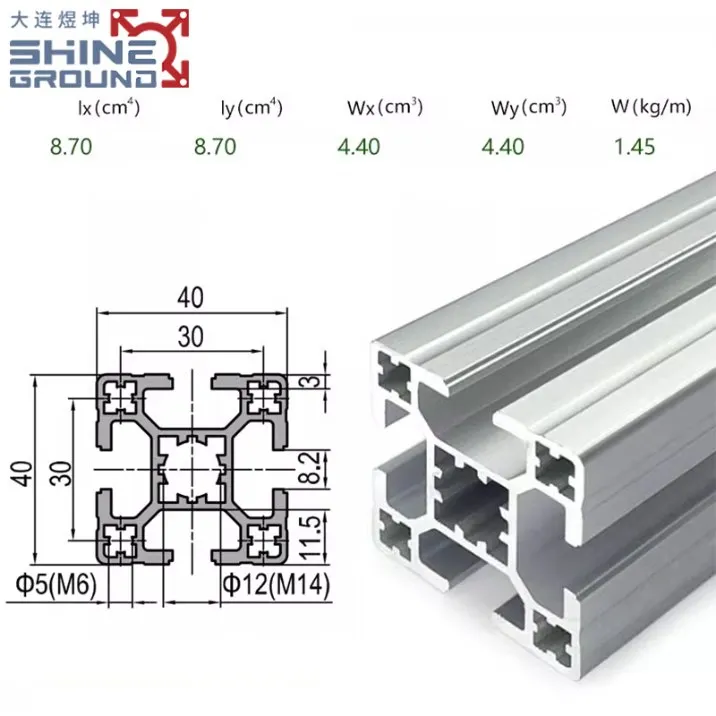

40x40mm 4-Slot T-Slot Aluminum Extrusion Profile for Industrial Framing

40x40mm T-slot aluminum profile with 4 slots for heavy-duty industrial framing. High-strength 6063-T5 alloy, anodized finish, ±0.05mm precision cutting.

Product Information
Model NO. SGAP0404 Type Industrial Aluminium Profile
Shape Square Certification CE, ISO
Alloying Ingredient 6063 Color Sliver, Black, Customized
MOQ 1 Meter Surface Finishing Anodic Oxidation

Additional information

Product Detalis

This 40x40mm T-slot aluminum extrusion profile is engineered for heavy-duty industrial applications requiring modular, adaptable structural frameworks. Featuring four precision-machined T-slots on all sides, the profile enables secure and flexible assembly of machinery frames, automated systems, and material handling equipment. Made from 6000-series aluminum alloy, it combines high strength-to-weight performance with corrosion resistance for long-term durability in demanding environments.

  1. ​Multi-Slot Design​​: Four integrated T-slots (8mm width) for 360° mounting flexibility
  2. ​High-Strength Material​​: 6063-T5 aluminum alloy with 220-240 MPa tensile strength
  3. ​Enhanced Surface Finish​​: Anodized oxidation treatment for wear/corrosion resistance
  4. ​Interchangeable Compatibility​​: Works with standard T-slot nuts, brackets, and connectors
  5. ​Structural Precision​​: ±0.05mm dimensional tolerance on custom-cut lengths
  6. ​Load Capacity​​: Supports up to 500kg/meter in vertical load applications
  7. ​Thermal Efficiency​​: Optimized for heat dissipation in electromechanical systems
  8. ​Customizable​​: Available in black or silver finishes with cut-to-size options



Description Moment of Inertia
lx(cm4)
Moment of Inertia
ly(cm4)
Moment of Resistance
Wx(cm3)
Moment of Resistance
Wy(cm3)
Mass
(kg/m)
Part No.
Strut Profile PG40 40×40 R90 2 slots 8.3 8.3 3 1.9 1.3 RT1.11.40.040040.R90.02
Strut Profile P40 40×40 1 slots 10.4 10.4 5.2 5 1.7 RT1.11.40.040040.01
Strut Profile PG40 40×40 2 slots Type A 9.6 9.6 4.5 4.5 1.5 RT1.11.40.040040.02A
Strut Profile PG40 40×40 2 slots Type B 9.6 8.6 4.8 4.3 1.5 RT1.11.40.040040.02B
Strut Profile PG40 40×40 3 slots 9.1 8.6 4.5 4.3 1.5 RT1.11.40.040040.03
Strut Profile PG40 40×40 4 slots Super Light 7.3 7.3 3.6 3.6 1.3 RT1.11.40.040040.04SL
Strut Profile PG40 40×40 4 slots Light 8.6 8.6 4.3 4.3 1.5 RT1.11.40.040040.04L
Strut Profile PG40 40×40 4 slots 9.1 9.1 4.6 4.6 1.6 RT1.11.40.040040.04
Strut Profile PG40 40×40 4 slots Heavy 11.5 11.5 5.8 5.8 2 RT1.11.40.040040.04H
Strut Profile PG40 40×60 4 slots 13.3 27.6 6.6 9.2 2.3 RT1.11.40.040060.04
Strut Profile PG40 40×80 6 slots Super Light 14.3 52 7.2 13 2.3 RT1.11.40.040080.06SL
Strut Profile PG40 40×80 6 slots Light 15.8 59.1 7.9 14.8 2.5 RT1.11.40.040080.06L
Strut Profile PG40 40×80 6 slots 16.6 63.2 8.3 15.8 2.7 RT1.11.40.040080.06
Strut Profile PG40 40×80 6 slots Heavy 22.2 80.8 11.1 20.2 3.6 RT1.11.40.040080.06H
Strut Profile PG40 40×120 8 slots 24.1 194.9 12.1 32.5 3.8 RT1.11.40.040120.08
Strut Profile PG40 40×120 8 slots Heavy 33 255.3 16.5 42.6 5.2 RT1.11.40.040120.08H
Strut Profile PG40 40×160 10 slots 31.6 435.7 15.8 54.5 4.8 RT1.11.40.040160.10
Strut Profile PG40 40×160 10 slots Heavy 43.7 582.2 21.8 72.8 6.8 RT1.11.40.040160.10H
Strut Profile PG40 80×80 8 slots 109.9 109.9 27.5 27.5 4.2 RT1.11.40.080080.08
Strut Profile PG40 80×80 8 slots Heavy 148.2 148.2 37.1 37.1 5.7 RT1.11.40.080080.08H
Strut Profile PG40 80×80 R90 6 slots 109.5 36.4 19.6 10.2 3.4 RT1.11.40.080080.R90.06
Strut Profile PG40 80×80 L 8 slots 111.8 56 20.1 11.9 4 RT1.11.40.080080L.08
Strut Profile PG40 80×120 10 slots 222.1 449.2 55.5 74.8 8.3 RT1.11.40.080120.10
Strut Profile PG40 80×160 12 slots 287.5 975.5 71.9 121.9 10.4 RT1.11.40.080160.10
Strut Profile PG40 80×200 14 slots 353.1 1789.8 88.3 179 12.3 RT1.11.40.080200.14
Strut Profile PG40 120×120 12 slots 659.1 659.1 109.9 109.9 11.5 RT1.11.30.120120.12
