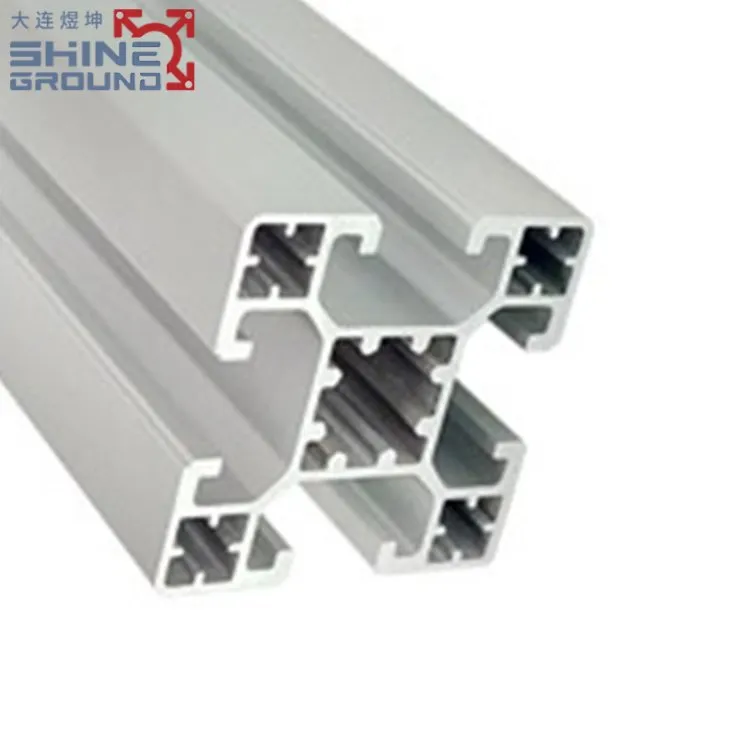

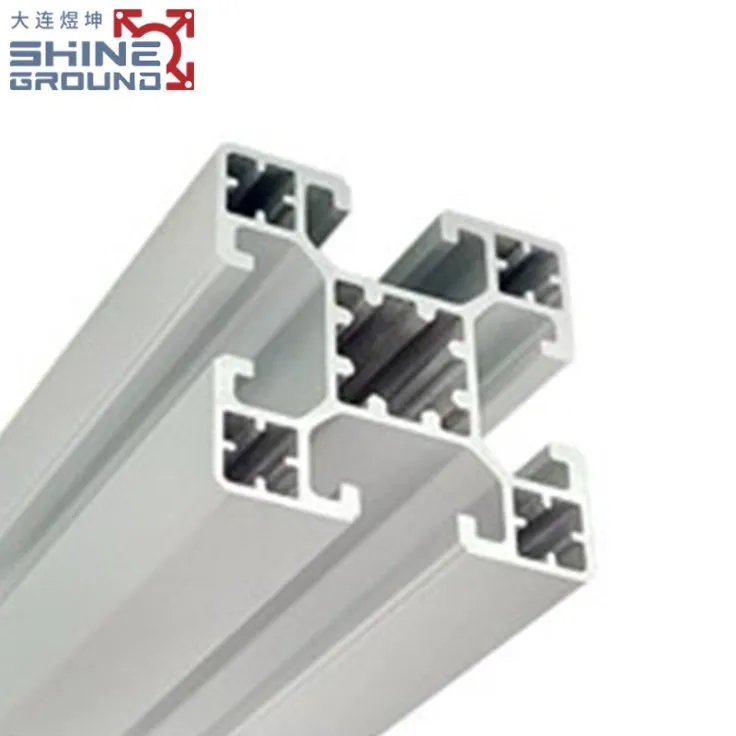

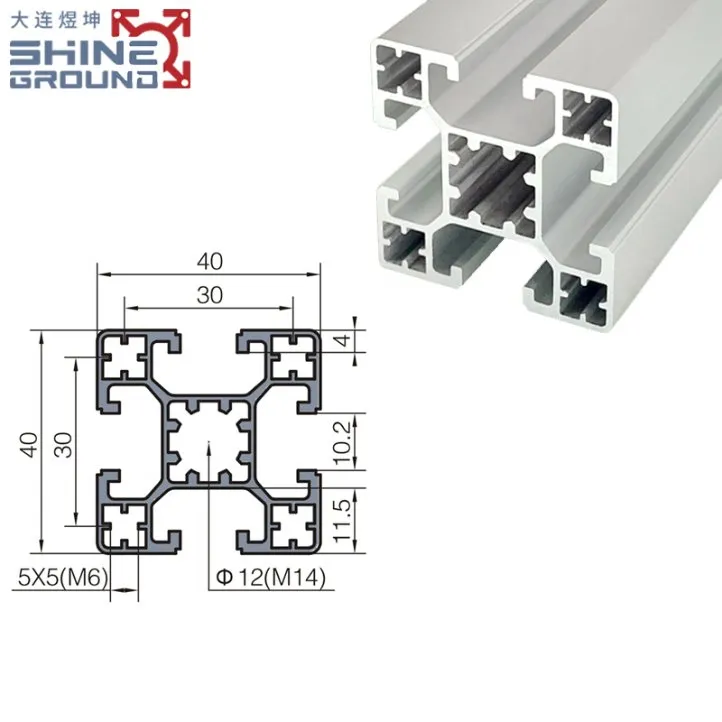

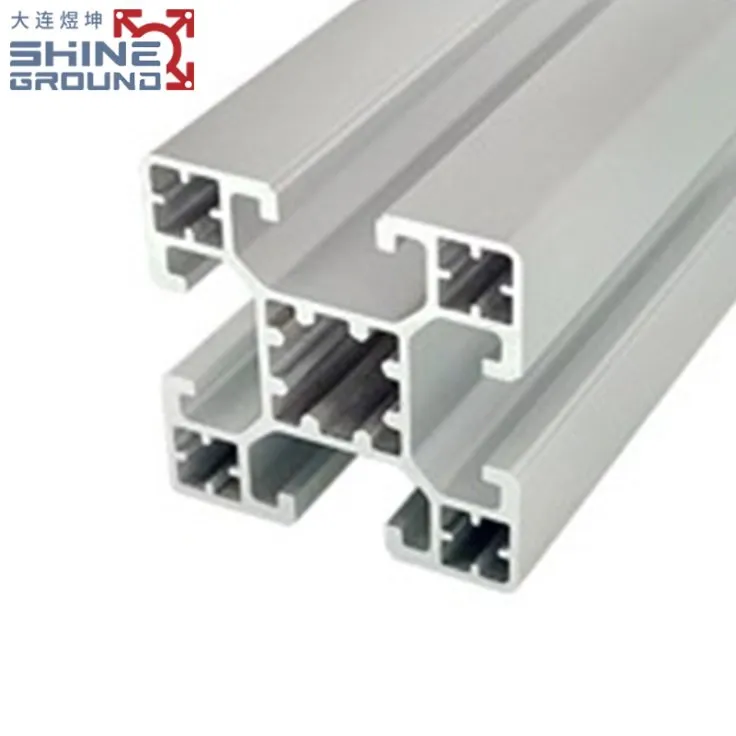

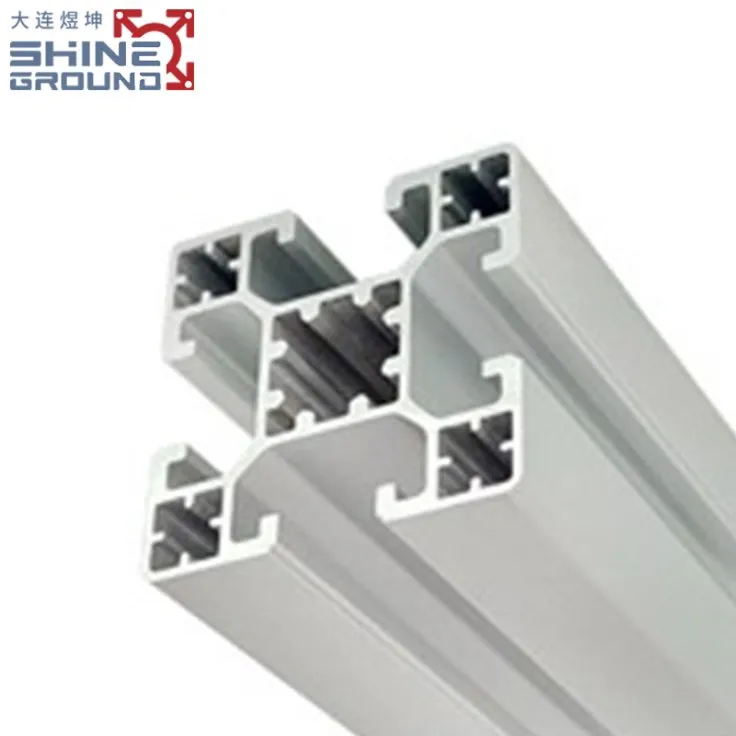

40x40mm T-Slot Aluminum Profile with 4 Slots

Category Strut Profile PG40

40x40mm T-slot aluminum profile with 4 slots, lightweight and anodized. Ideal for industrial framing, machinery, and modular systems. Corrosion-resistant, customizable lengths.

Additional information

Product Detalis

The 40 Series T-Slot Aluminum Profile (40x40mm) is a precision-engineered, lightweight extrusion designed for versatile structural and industrial applications. Featuring four T-slots for modular assembly, this profile combines high-grade aluminum alloys (6063/6061) with anodized surface treatment for enhanced durability and corrosion resistance. Available in standard 6-meter lengths or custom-cut dimensions, it supports rapid assembly of frameworks, machinery enclosures, and automation systems while ensuring exceptional strength-to-weight performance.

Multi-Slot Design: Four T-slots per face enable flexible component attachment and reconfiguration.
High-Strength Material: 6000-series aluminum alloys (T3-T8 temper) for rigidity and load-bearing capacity.
Surface Options: Mill finish or anodized coating (silver/black/custom) for corrosion resistance.
Precision Machining: ±0.05mm dimensional tolerance with CNC-cut ends for seamless alignment.
Modular Compatibility: Integrates with brackets, connectors, and accessories for system builds.
Lightweight Construction: Optimized profile geometry reduces weight without compromising strength.
Sustainability: Fully recyclable material with eco-friendly production processes.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
Strut Profile PG40 40×40 R90 2 slots	8.3	8.3	3	1.9	1.3	RT1.11.40.040040.R90.02
Strut Profile P40 40×40 1 slots	10.4	10.4	5.2	5	1.7	RT1.11.40.040040.01
Strut Profile PG40 40×40 2 slots Type A	9.6	9.6	4.5	4.5	1.5	RT1.11.40.040040.02A
Strut Profile PG40 40×40 2 slots Type B	9.6	8.6	4.8	4.3	1.5	RT1.11.40.040040.02B
Strut Profile PG40 40×40 3 slots	9.1	8.6	4.5	4.3	1.5	RT1.11.40.040040.03
Strut Profile PG40 40×40 4 slots Super Light	7.3	7.3	3.6	3.6	1.3	RT1.11.40.040040.04SL
Strut Profile PG40 40×40 4 slots Light	8.6	8.6	4.3	4.3	1.5	RT1.11.40.040040.04L
Strut Profile PG40 40×40 4 slots	9.1	9.1	4.6	4.6	1.6	RT1.11.40.040040.04
Strut Profile PG40 40×40 4 slots Heavy	11.5	11.5	5.8	5.8	2	RT1.11.40.040040.04H
Strut Profile PG40 40×60 4 slots	13.3	27.6	6.6	9.2	2.3	RT1.11.40.040060.04
Strut Profile PG40 40×80 6 slots Super Light	14.3	52	7.2	13	2.3	RT1.11.40.040080.06SL
Strut Profile PG40 40×80 6 slots Light	15.8	59.1	7.9	14.8	2.5	RT1.11.40.040080.06L
Strut Profile PG40 40×80 6 slots	16.6	63.2	8.3	15.8	2.7	RT1.11.40.040080.06
Strut Profile PG40 40×80 6 slots Heavy	22.2	80.8	11.1	20.2	3.6	RT1.11.40.040080.06H
Strut Profile PG40 40×120 8 slots	24.1	194.9	12.1	32.5	3.8	RT1.11.40.040120.08
Strut Profile PG40 40×120 8 slots Heavy	33	255.3	16.5	42.6	5.2	RT1.11.40.040120.08H
Strut Profile PG40 40×160 10 slots	31.6	435.7	15.8	54.5	4.8	RT1.11.40.040160.10
Strut Profile PG40 40×160 10 slots Heavy	43.7	582.2	21.8	72.8	6.8	RT1.11.40.040160.10H
Strut Profile PG40 80×80 8 slots	109.9	109.9	27.5	27.5	4.2	RT1.11.40.080080.08
Strut Profile PG40 80×80 8 slots Heavy	148.2	148.2	37.1	37.1	5.7	RT1.11.40.080080.08H
Strut Profile PG40 80×80 R90 6 slots	109.5	36.4	19.6	10.2	3.4	RT1.11.40.080080.R90.06
Strut Profile PG40 80×80 L 8 slots	111.8	56	20.1	11.9	4	RT1.11.40.080080L.08
Strut Profile PG40 80×120 10 slots	222.1	449.2	55.5	74.8	8.3	RT1.11.40.080120.10
Strut Profile PG40 80×160 12 slots	287.5	975.5	71.9	121.9	10.4	RT1.11.40.080160.10
Strut Profile PG40 80×200 14 slots	353.1	1789.8	88.3	179	12.3	RT1.11.40.080200.14
Strut Profile PG40 120×120 12 slots	659.1	659.1	109.9	109.9	11.5	RT1.11.30.120120.12

Product Information
Model NO.	SGAP1503	Type	Industrial Aluminium Profile
Shape	Square	Certification	CE, ISO
Alloying Ingredient	6063	Color	Sliver, Black, Customized
MOQ	1 Meter	Surface Finishing	Anodic Oxidation
