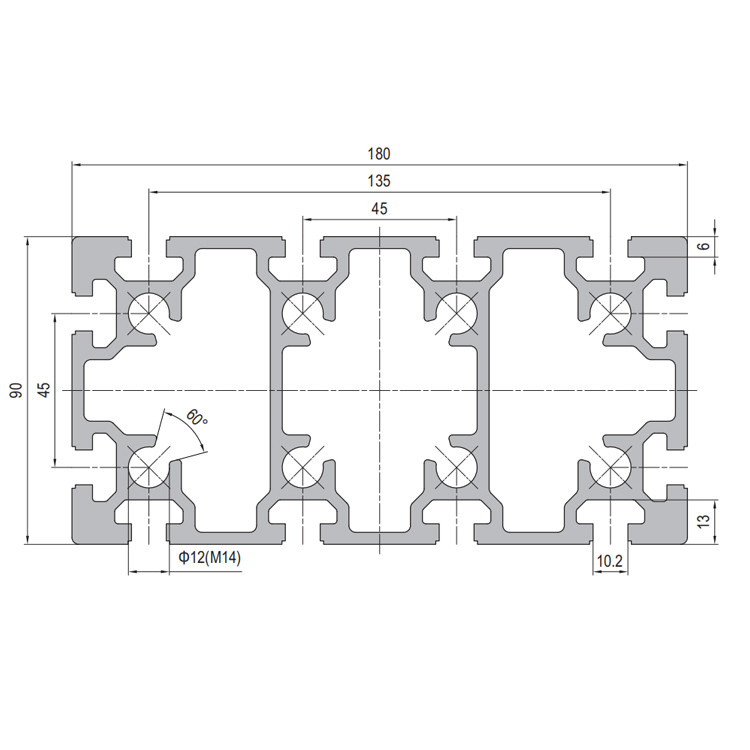

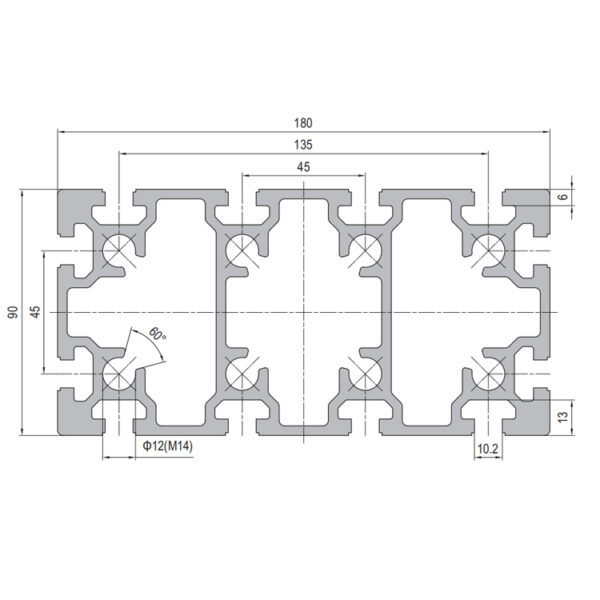

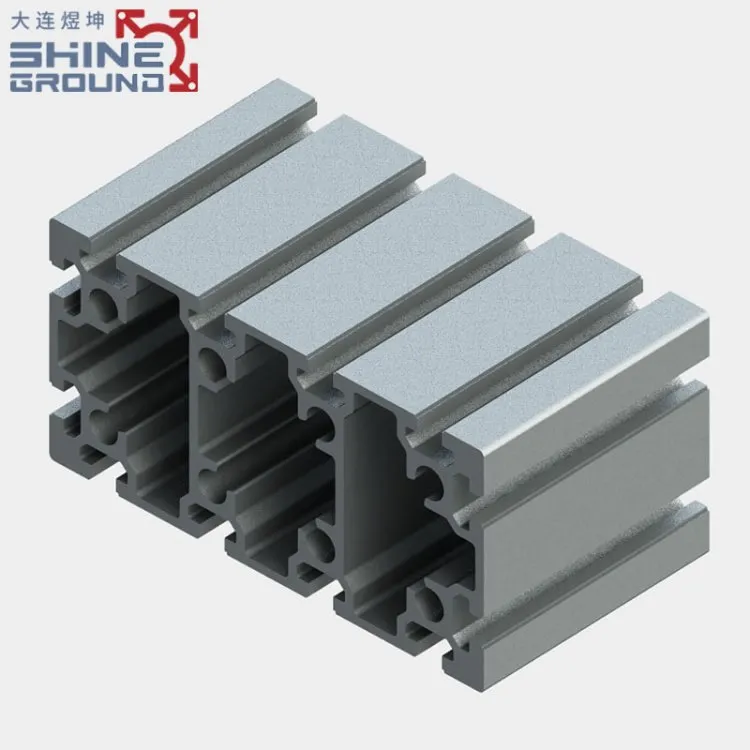

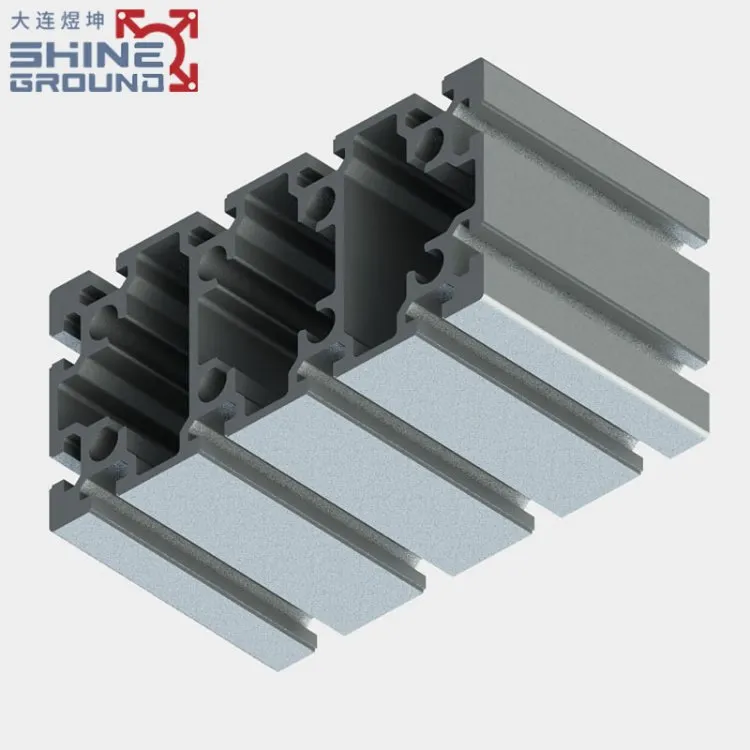

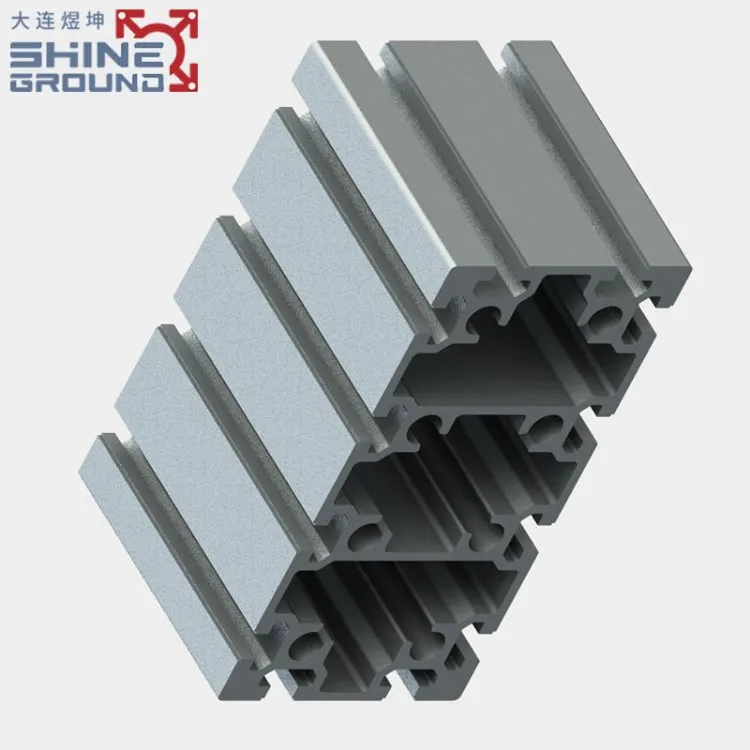

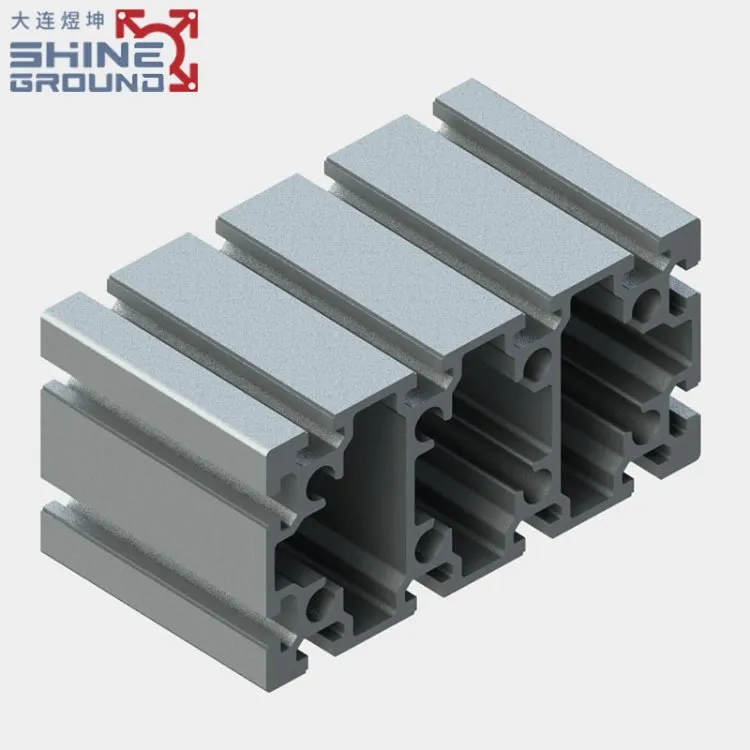

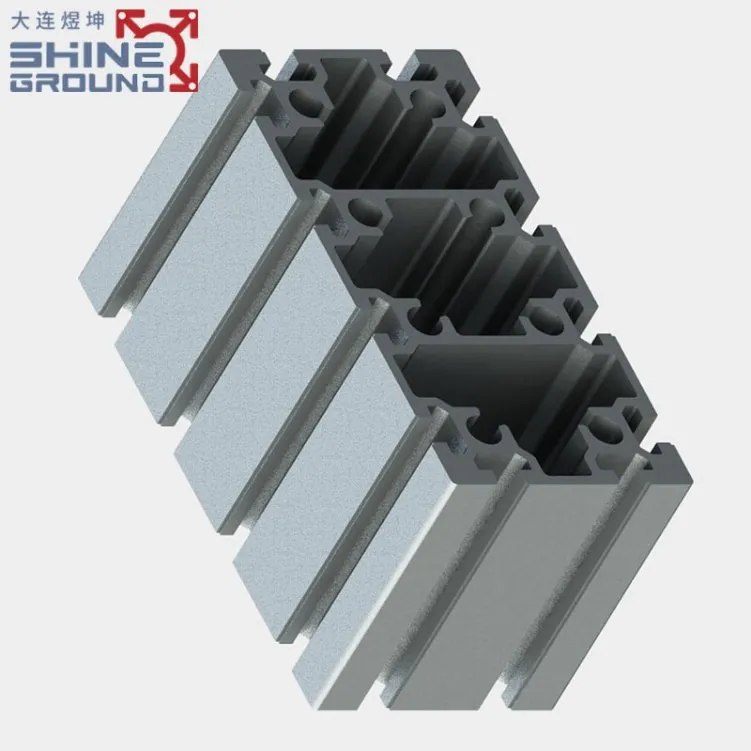

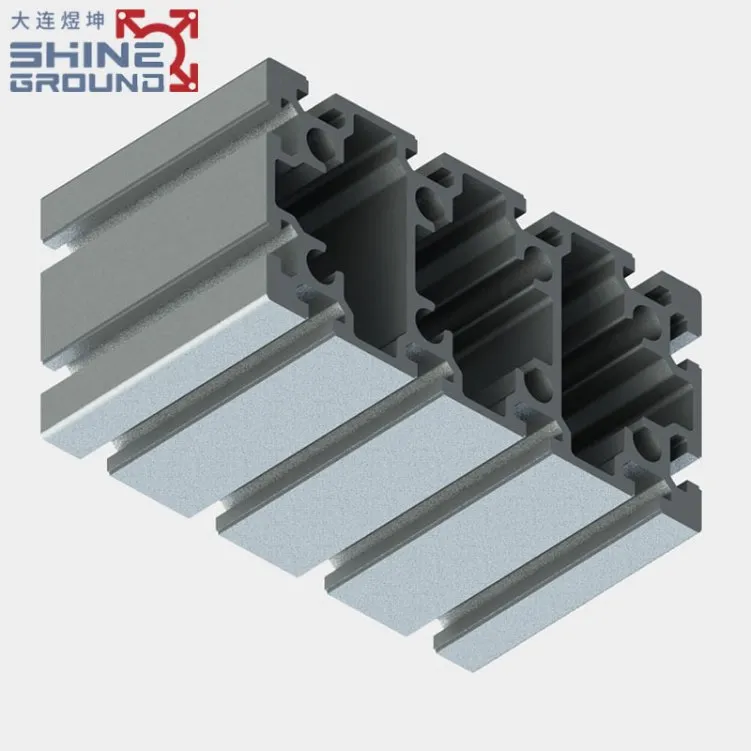

45 Series 90x180mm 12-Slot T-Slot Aluminum Profile

Category Strut Profile PG45

Heavy-duty 90x180mm Series 45 aluminum extrusion with 12 integrated T-slots. Engineered for high-load industrial framing, machinery bases, and modular structures requiring maximum strength and versatility. Durable, corrosion-resistant finish.

Product Information
Model NO.	SGAP1314	Type	Industrial Aluminium Profile
Shape	Square	Certification	CE, ISO
Alloying Ingredient	6063	Color	Sliver, Black, Customized
MOQ	1 Meter	Surface Finishing	Anodic Oxidation

Product Detalis

This 90x180mm heavy-duty T-slot aluminum profile, belonging to the 45 series, is engineered for demanding structural applications requiring exceptional strength and stability. Featuring 12 integrated T-slots, it enables versatile and robust modular assembly, making it ideal for constructing large frames, heavy-duty machinery supports, platforms, and specialized industrial structures.

Large Cross-Section (90x180mm): Provides superior structural rigidity and high load-bearing capacity for heavy-duty applications.
12 Integrated T-Slots: Offers maximum flexibility for component attachment and adjustment from multiple directions on all faces.
Heavy-Duty Design: Specifically engineered for demanding environments like construction scaffolding, large equipment frames, and industrial platforms.
Standard Aluminum Alloy: Manufactured from high-strength 6000 series aluminum alloy (e.g., 6063) for an optimal balance of strength and machinability.
Durable Surface Finish: Features a protective anodized or powder-coated surface for enhanced corrosion resistance and longevity.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
Strut Profile PG45 45×45 R90 2 slots	8.4	8.4	4.3	4.3	1.5	RT1.11.45.045045.R90.02
Strut Profile PG45 45×45 2 slots Type A	12.9	12.9	5.7	5.7	1.9	RT1.11.45.045045.02A
Strut Profile PG45 45×45 2 slots Type B	13.7	12.1	6.1	5.4	1.9	RT1.11.45.045045.02B
Strut Profile PG45 45×45 3 slots	12.9	12.1	5.7	5.4	1.8	RT1.11.45.045045.03
Strut Profile PG45 45×45 4 slots Light	10.5	10.5	4.7	4.7	1.6	RT1.11.45.045045.04L
Strut Profile PG45 45×45 4 slots	12.1	12.1	5.4	5.4	1.8	RT1.11.45.045045.04
Strut Profile PG45 45×45 4 slots Heavy	16.5	16.5	7.4	7.4	2.4	RT1.11.45.045045.04H
Strut Profile PG45 45×60 4 slots	16.2	27.8	7.2	9.3	2.4	RT1.11.45.045060.04
Strut Profile PG45 45×90 6 slots	24.2	89.3	10.8	19.9	3.2	RT1.11.45.045090.06
Strut Profile PG45 45×90 6 slots Heavy	32.5	122.2	14.5	27.2	4.4	RT1.11.45.045090.06H
Strut Profile PG45 45×180 10 slots	48.4	640.6	21.5	71.2	5.8	RT1.11.45.045180.10
Strut Profile PG45 90×90 8 slots	163.2	163.2	36.3	36.3	5	RT1.11.45.090090.08
Strut Profile PG45 90×90 8 slots Heavy	222.9	222.9	49.6	49.6	6.8	RT1.11.45.090090.08H
Strut Profile PG45 90×90 L8 slots	121.5	121.5	32	32	4.6	RT1.11.45.090090L.08
Strut Profile PG45 90×180 12 slots	454.9	1585.7	101.1	176.2	12.7	RT1.11.45.090180.12
