45×45 Aluminium Alloy Profile 4 Slots

Description

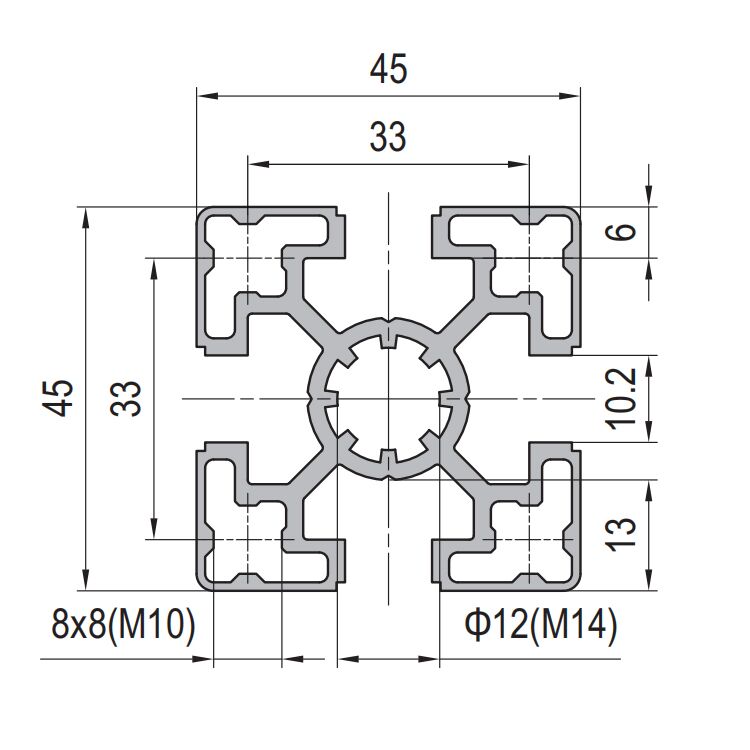

The 45×45 Aluminium Alloy Profile is a high-strength structural framing component crafted from 6000 series aluminum alloy. It is designed for constructing robust, modular frameworks in industrial automation, workstations, machinery guards, and architectural applications. Its square 45mm x 45mm cross-section with four integrated T-slots (typically 8mm or 10mm) on each face allows for immense design flexibility and easy assembly using standard connectors, eliminating the need for welding. The clear anodized finish enhances corrosion resistance and provides a durable, professional appearance. Offering an excellent strength-to-weight ratio (approx. 1.63 kg/m), this profile is ideal for building reusable, adaptable structures quickly and cost-effectively.

1. High-Strength Material:​ Made from 6000-series aluminum alloy (such as EN AW-6060 T6 or 6063-T5), ensuring superior mechanical properties and a high strength-to-weight ratio.
2. Modular T-Slot Design:​ Features four 10mm T-slots (one on each side) for flexible and adjustable component mounting along the entire profile length.
3. Durable & Corrosion-Resistant:​ The clear anodized surface layer (approx. 15 µm thick) offers enhanced resistance to wear and corrosion, suitable for various environments.
4. Easy Assembly & Reusability:​ Enables quick, tool-free assembly with standard brackets and fasteners. Structures can be easily disassembled and reconfigured, maximizing long-term value.
5. Wide Compatibility:​ Designed to be compatible with standard modular framing systems, making it versatile for numerous industrial and commercial applications.
