Description

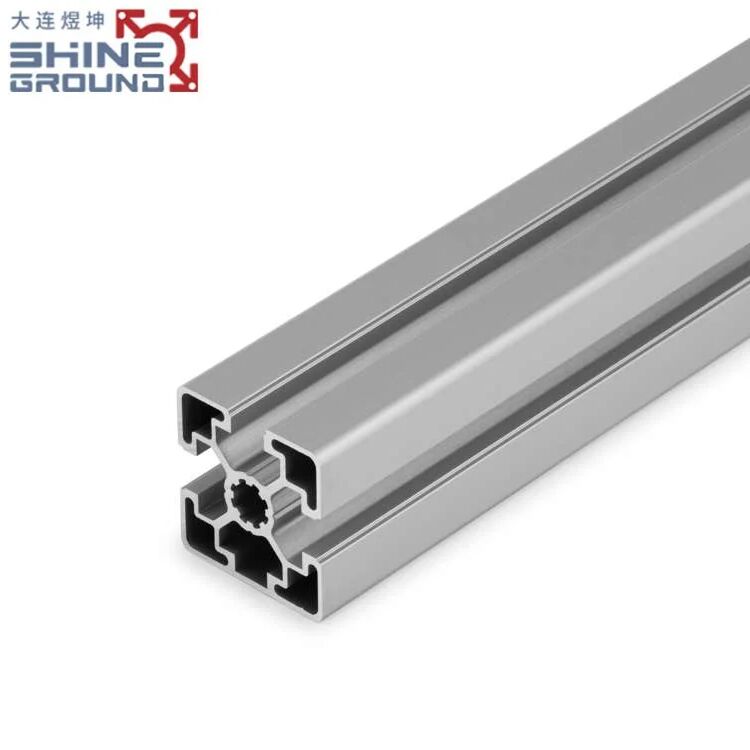

The 45 Series Triple T-Slot Aluminum Profile is a structural extrusion designed for industrial frameworks and modular assembly systems. With a square cross-section of 45×45mm and three integrated T-slot channels, it enables versatile, rigid, and reconfigurable connections for machinery, workstations, and automation equipment. Its standardized dimensions ensure compatibility with a wide range of fasteners and accessories.
- Dimensions & Structure
- Cross-section: 45mm × 45mm (±0.2mm tolerance).
- Slot configuration: Three T-shaped channels (slot width: 10mm, depth: 8–12.5mm), compatible with M6/M8 bolts and standard T-nuts.
- Wall thickness: 2.0mm (standard grade), balancing strength and weight efficiency.
- Material & Durability
- Alloy: 6063-T5 aluminum, offering tensile strength ≥160 MPa and corrosion resistance.
- Surface treatment: Anodized finish (silver/customizable), providing enhanced wear resistance and a uniform aesthetic.
- Functional Design
- Symmetrical T-slots on three faces for multi-directional assembly flexibility.
- Rounded corners (R5 radius) to reduce stress concentration and improve safety.
- Linear mass: ~1.95 kg/m, optimizing load capacity without excessive weight.
- Applications
- Ideal for robotic frames, conveyor supports, assembly jigs, and modular enclosures requiring high rigidity and easy reconfiguration.
