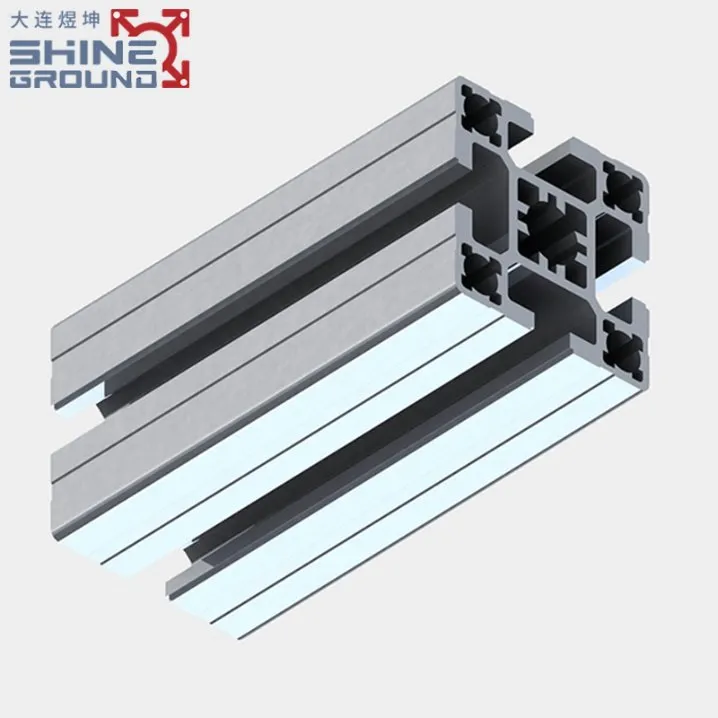

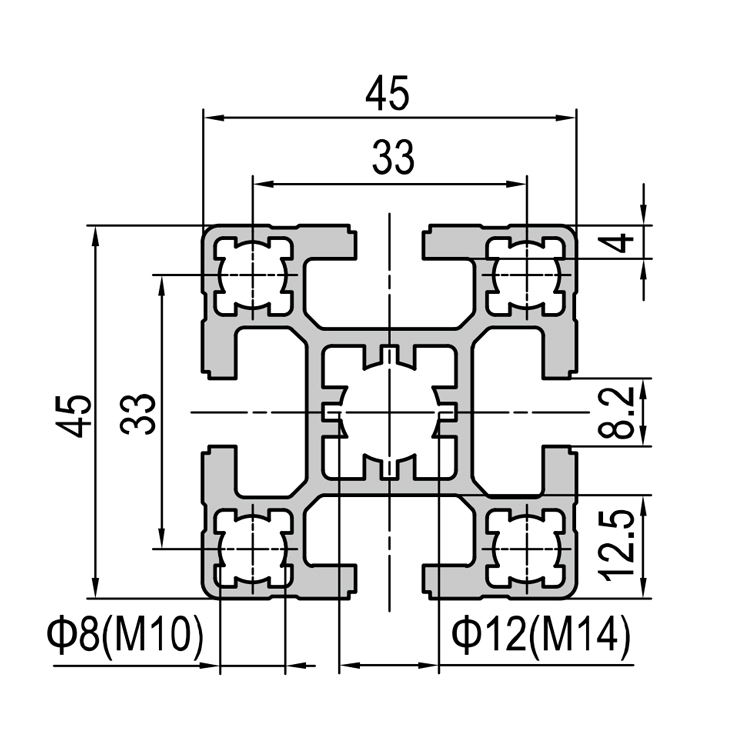

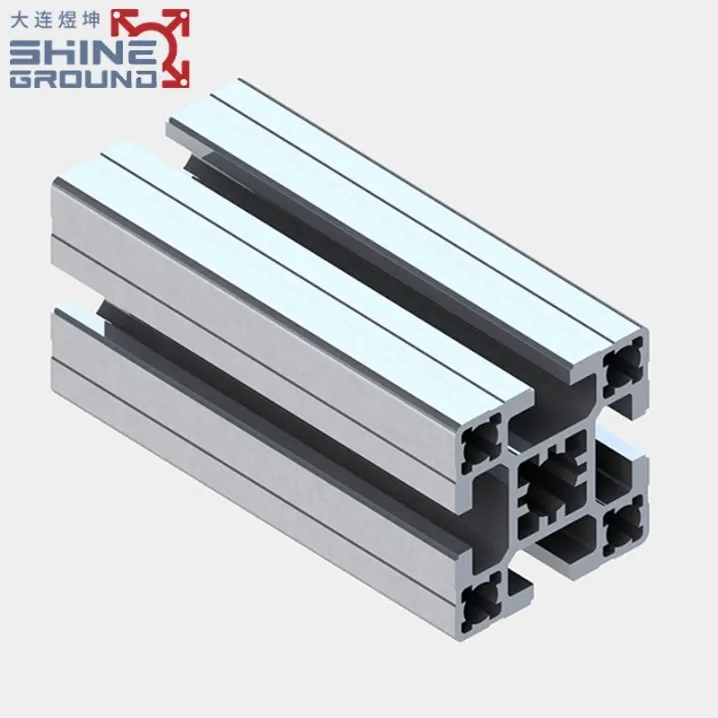

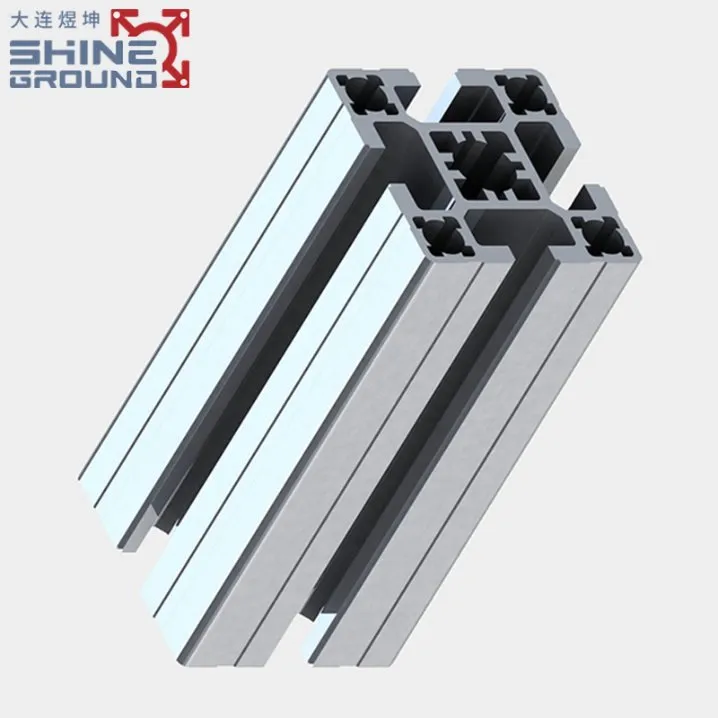

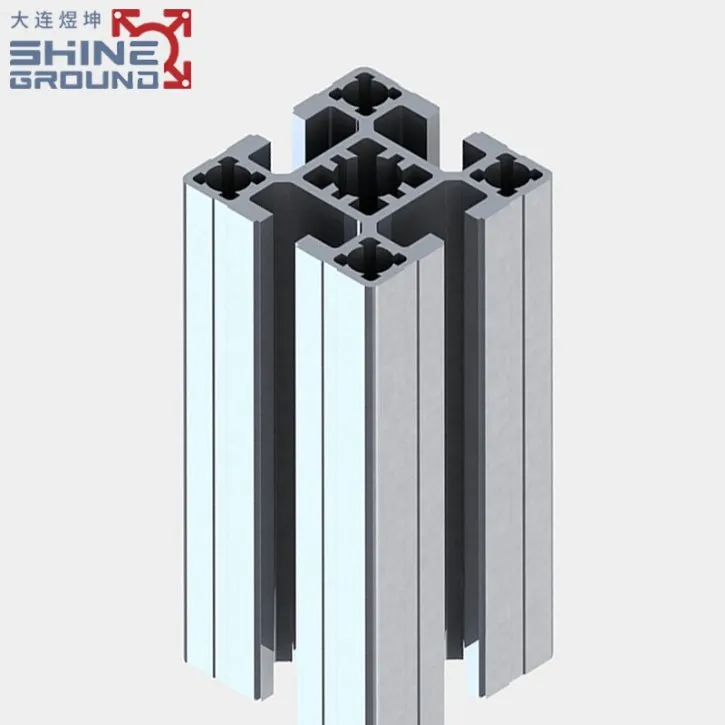

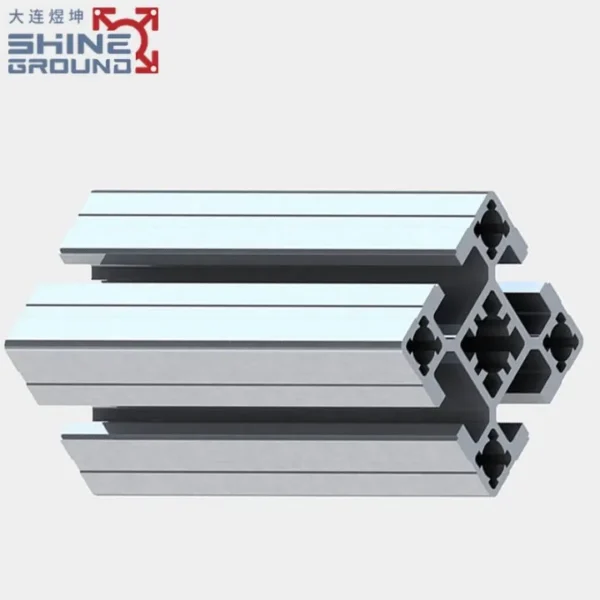

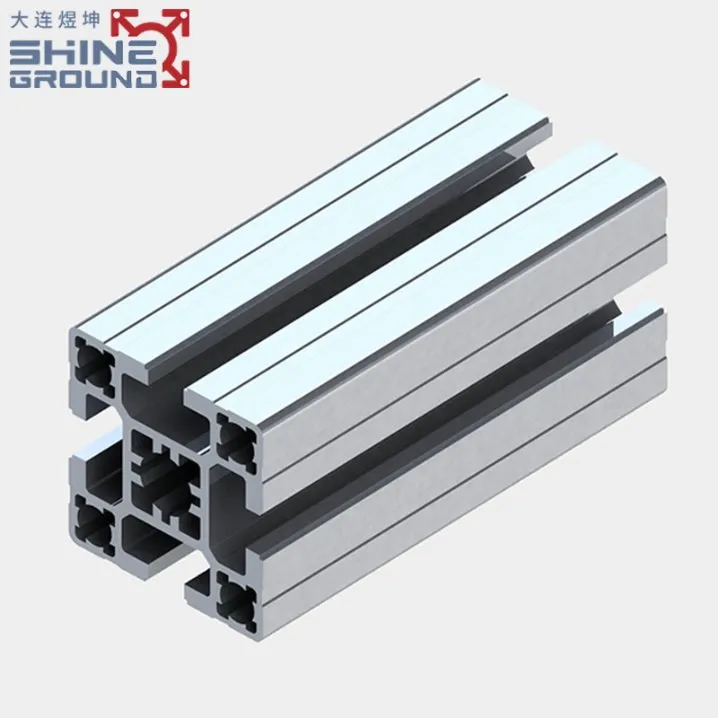

​​45×45 T-Slot Aluminum Profile with 4 Slots​​

A 45×45 T-slot aluminum profile with 4 slots, offering high strength, modular assembly, and corrosion resistance for industrial framing, automation, and custom projects. Load capacity: 200kg/m.

Product Information
Model NO. SGAP0502 Type Industrial Aluminium Profile
Shape Square Certification CE, ISO
Alloying Ingredient 6063 Color Sliver, Black, Customized
MOQ 1 Meter Surface Finishing Anodic Oxidation

Product Detalis

This 45×45 T-slot aluminum profile features four integrated T-slots, designed for versatile industrial and mechanical applications. It serves as a core component in modular framing systems, enabling easy assembly without welding or complex tools. Made from high-strength aluminum alloy, it offers excellent durability and load-bearing capacity, suitable for automation equipment, workbenches, and custom structures.

  1. ​Modular Design​​: Four T-slots allow for quick integration with nuts, brackets, and connectors, facilitating tool-free assembly and reconfiguration.
  2. ​High Strength​​: Constructed from durable aluminum alloy with a load capacity of up to 200kg per meter, ensuring reliability in demanding environments.
  3. ​Corrosion Resistance​​: Anodic oxidation surface finishing provides long-lasting protection against wear and environmental factors.
  4. ​Precision Engineering​​: Manufactured to tight tolerances for consistent fit and performance in applications like industrial automation and furniture design.
  5. ​Eco-Friendly​​: Fully recyclable material supports sustainable manufacturing practices.
  6. ​Versatile Applications​​: Ideal for robotic arms, conveyor systems, machine enclosures, and exhibition setups.



Description Moment of Inertia
lx(cm4)
Moment of Inertia
ly(cm4)
Moment of Resistance
Wx(cm3)
Moment of Resistance
Wy(cm3)
Mass
(kg/m)
Part No.
Strut Profile PG45 45×45 R90 2 slots 8.4 8.4 4.3 4.3 1.5 RT1.11.45.045045.R90.02
Strut Profile PG45  45×45 2 slots Type A 12.9 12.9 5.7 5.7 1.9 RT1.11.45.045045.02A
Strut Profile PG45  45×45 2 slots Type B 13.7 12.1 6.1 5.4 1.9 RT1.11.45.045045.02B
Strut Profile PG45  45×45 3 slots 12.9 12.1 5.7 5.4 1.8 RT1.11.45.045045.03
Strut Profile PG45  45×45 4 slots  Light 10.5 10.5 4.7 4.7 1.6 RT1.11.45.045045.04L
Strut Profile PG45  45×45 4 slots 12.1 12.1 5.4 5.4 1.8 RT1.11.45.045045.04
Strut Profile PG45  45×45 4 slots Heavy 16.5 16.5 7.4 7.4 2.4 RT1.11.45.045045.04H
Strut Profile PG45  45×60 4 slots 16.2 27.8 7.2 9.3 2.4 RT1.11.45.045060.04
Strut Profile PG45  45×90 6 slots 24.2 89.3 10.8 19.9 3.2 RT1.11.45.045090.06
Strut Profile PG45  45×90 6 slots Heavy 32.5 122.2 14.5 27.2 4.4 RT1.11.45.045090.06H
Strut Profile PG45  45×180 10 slots 48.4 640.6 21.5 71.2 5.8 RT1.11.45.045180.10
Strut Profile PG45  90×90 8 slots 163.2 163.2 36.3 36.3 5 RT1.11.45.090090.08
Strut Profile PG45  90×90 8 slots Heavy 222.9 222.9 49.6 49.6 6.8 RT1.11.45.090090.08H
Strut Profile PG45  90×90 L8 slots 121.5 121.5 32 32 4.6 RT1.11.45.090090L.08
