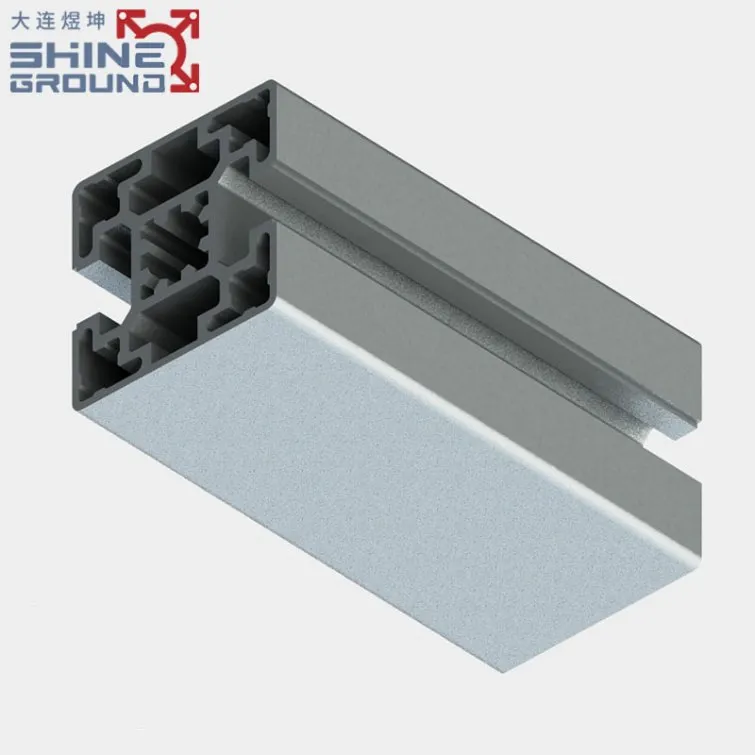

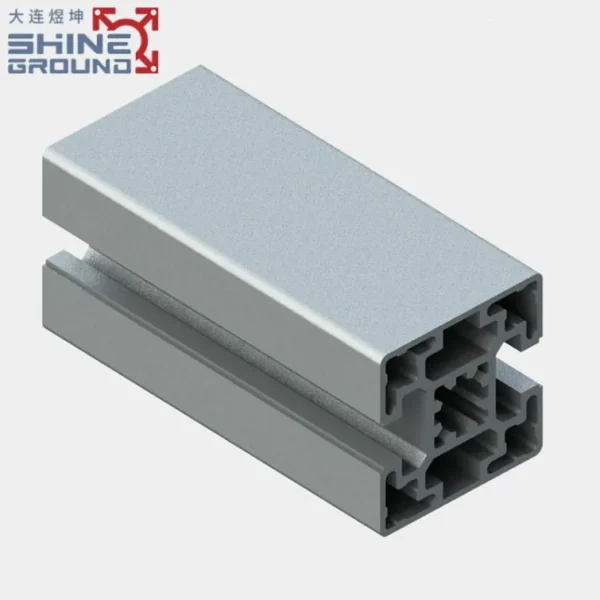

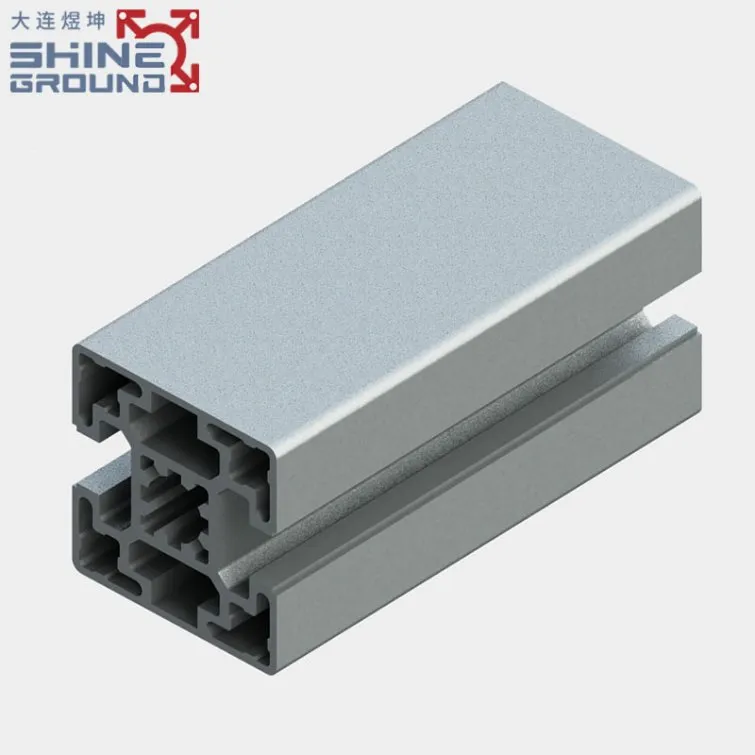

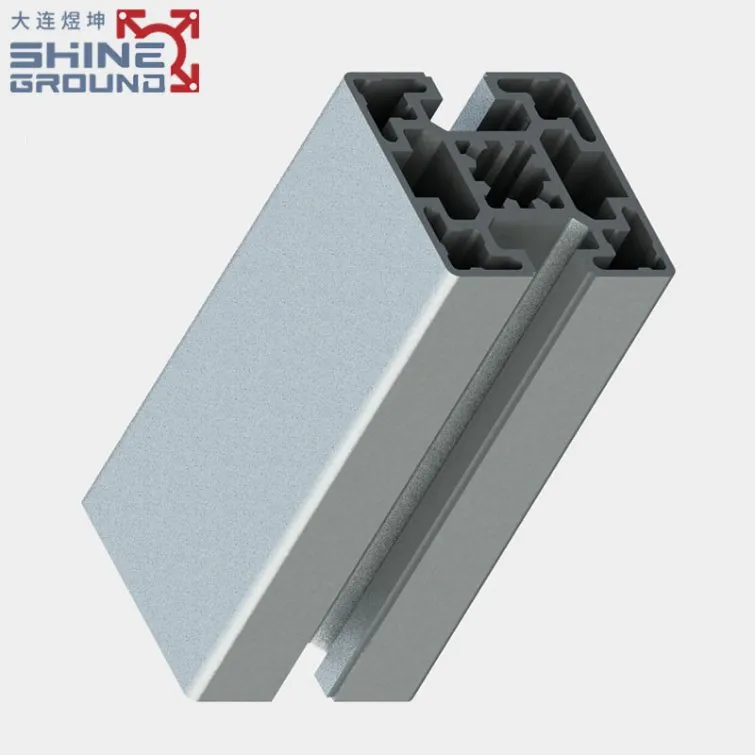

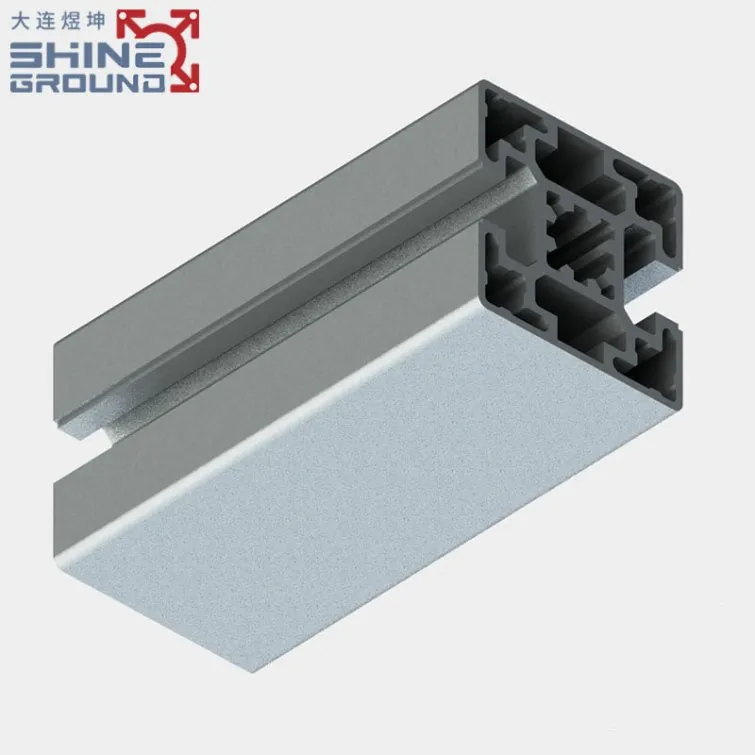

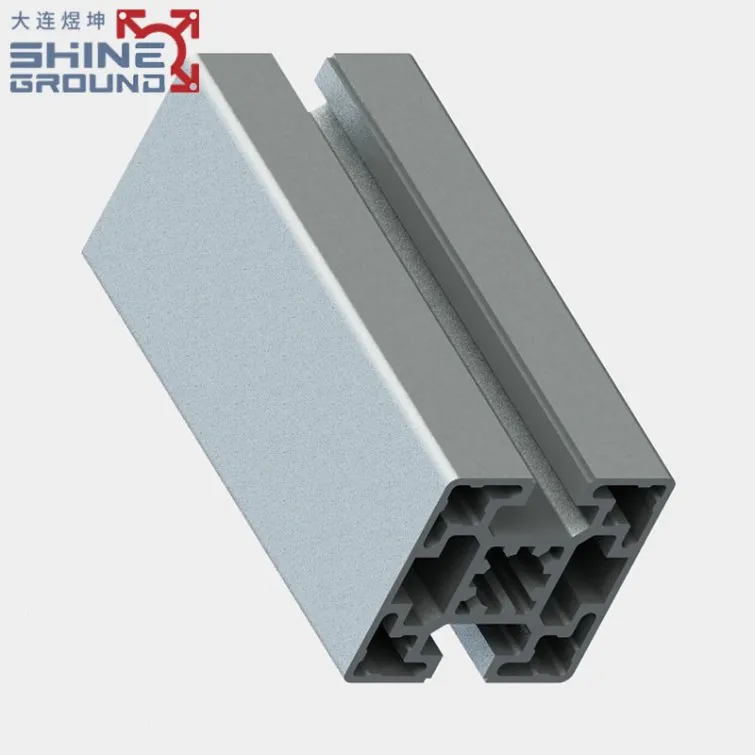

45x45mm 2-Slot T-Slot Aluminum Strut Profile

Category Strut Profile PG45

High-precision 45x45mm aluminum strut profile with 2 T-slots. Anodized, CNC-cut, and lightweight for modular frames, automation, and machine structures. Custom lengths available.

Product Information
Model NO.	SGAP1302	Type	Industrial Aluminium Profile
Shape	Square	Certification	CE, ISO
Alloying Ingredient	6063	Color	Sliver, Black, Customized
MOQ	1 Meter	Surface Finishing	Anodic Oxidation

Product Detalis

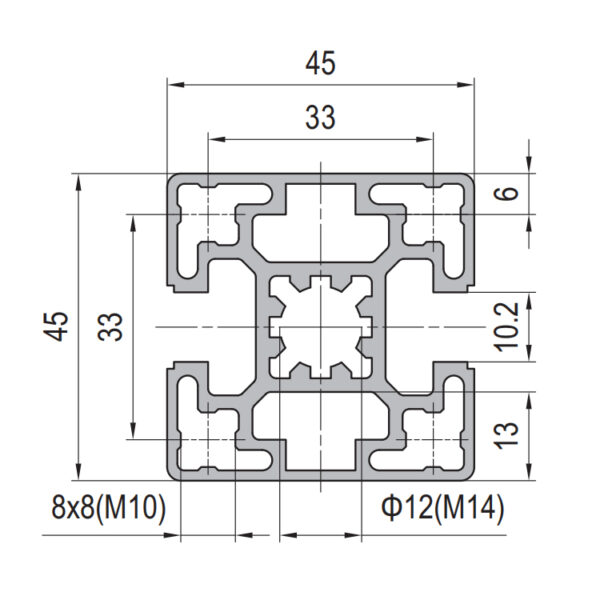

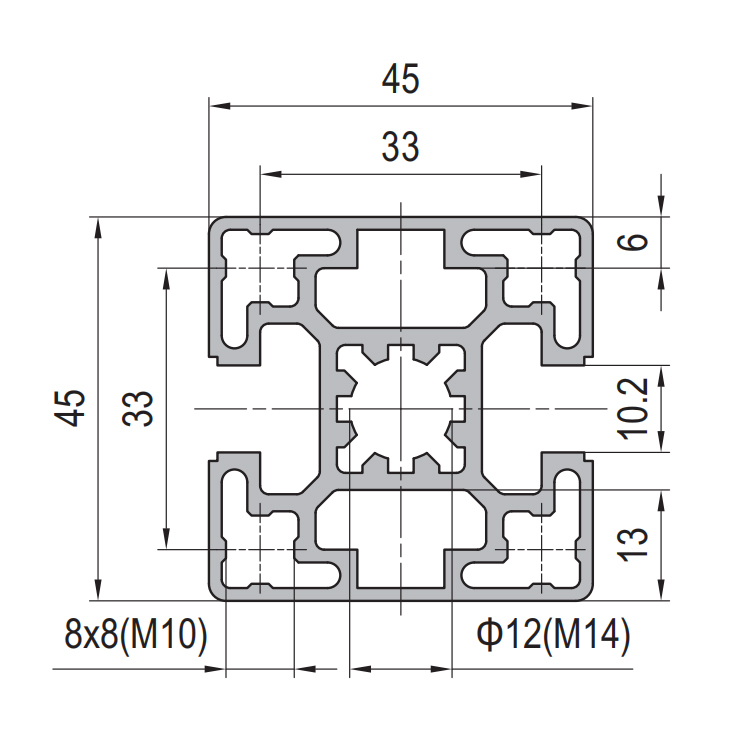

The 45x45mm 2-Slot T-Slot Aluminum Strut Profile is a precision-engineered structural framing component designed for modular machine builds, automation systems, and industrial workstations. Featuring two continuous T-slots for tool-less assembly, it offers versatile mounting options and robust load-bearing capabilities while maintaining lightweight properties.

Dual-Axis T-Slots: Enables multi-angle fastening with standard M6/M8 hardware.
High Strength-to-Weight Ratio: 6063-T5 aluminum alloy construction for durability.
Corrosion Resistance: Anodized surface finish (mill, silver, black, or custom).
Precision Tolerances: ±0.1mm/m dimensional accuracy with CNC-cut ends.
Optimized Structural Performance: 12.4cm⁴ moment of inertia (lx/ly), 5.5cm³ moment of resistance (Wx/Wy).
Lightweight Design: 1.50kg/m mass for easy handling.
Modular Compatibility: Integrates with brackets, connectors, and accessories.
Safety & Insulation: Non-conductive, non-magnetic, and burr-free edges.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
Strut Profile PG45 45×45 R90 2 slots	8.4	8.4	4.3	4.3	1.5	RT1.11.45.045045.R90.02
Strut Profile PG45 45×45 2 slots Type A	12.9	12.9	5.7	5.7	1.9	RT1.11.45.045045.02A
Strut Profile PG45 45×45 2 slots Type B	13.7	12.1	6.1	5.4	1.9	RT1.11.45.045045.02B
Strut Profile PG45 45×45 3 slots	12.9	12.1	5.7	5.4	1.8	RT1.11.45.045045.03
Strut Profile PG45 45×45 4 slots Light	10.5	10.5	4.7	4.7	1.6	RT1.11.45.045045.04L
Strut Profile PG45 45×45 4 slots	12.1	12.1	5.4	5.4	1.8	RT1.11.45.045045.04
Strut Profile PG45 45×45 4 slots Heavy	16.5	16.5	7.4	7.4	2.4	RT1.11.45.045045.04H
Strut Profile PG45 45×60 4 slots	16.2	27.8	7.2	9.3	2.4	RT1.11.45.045060.04
Strut Profile PG45 45×90 6 slots	24.2	89.3	10.8	19.9	3.2	RT1.11.45.045090.06
Strut Profile PG45 45×90 6 slots Heavy	32.5	122.2	14.5	27.2	4.4	RT1.11.45.045090.06H
Strut Profile PG45 45×180 10 slots	48.4	640.6	21.5	71.2	5.8	RT1.11.45.045180.10
Strut Profile PG45 90×90 8 slots	163.2	163.2	36.3	36.3	5	RT1.11.45.090090.08
Strut Profile PG45 90×90 8 slots Heavy	222.9	222.9	49.6	49.6	6.8	RT1.11.45.090090.08H
Strut Profile PG45 90×90 L8 slots	121.5	121.5	32	32	4.6	RT1.11.45.090090L.08
Strut Profile PG45 90×180 12 slots	454.9	1585.7	101.1	176.2	12.7	RT1.11.45.090180.12
