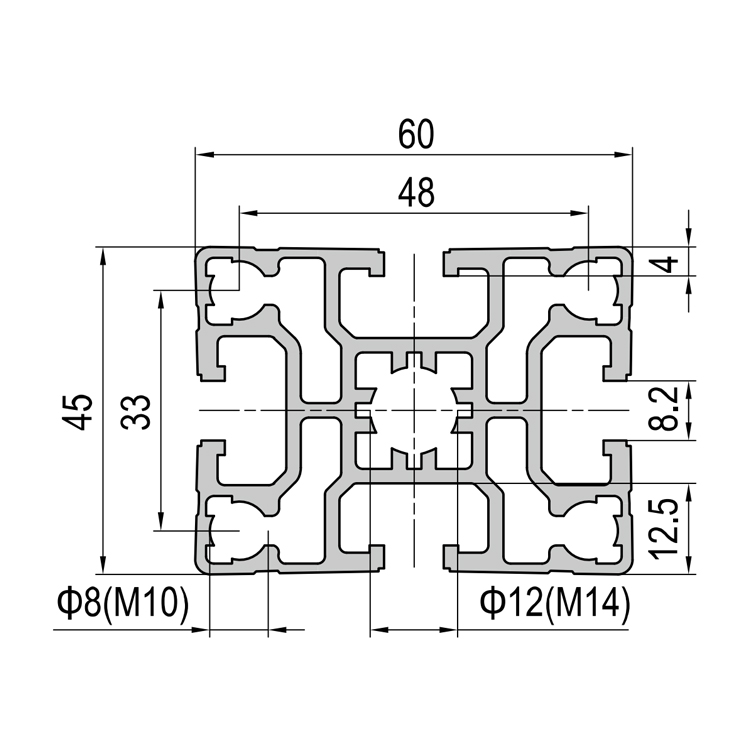

45x60mm 4-Slot Structural Aluminum T-Slot Profile

Category Strut Profile PG45

45x60mm 4-slot T-slot aluminum profile. 6063 alloy, anodized finish. High strength, corrosion resistant & modular design for industrial framing & structural projects.

Product Information
Model NO.	SGAP1308	Type	Industrial Aluminium Profile
Shape	Square	Certification	CE, ISO
Alloying Ingredient	6063	Color	Sliver, Black, Customized
MOQ	1 Meter	Surface Finishing	Anodic Oxidation

Product Detalis

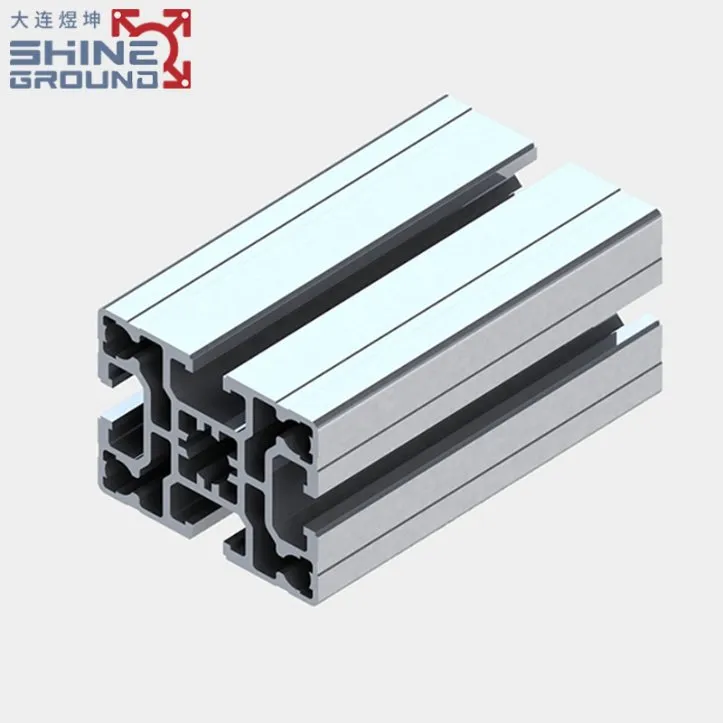

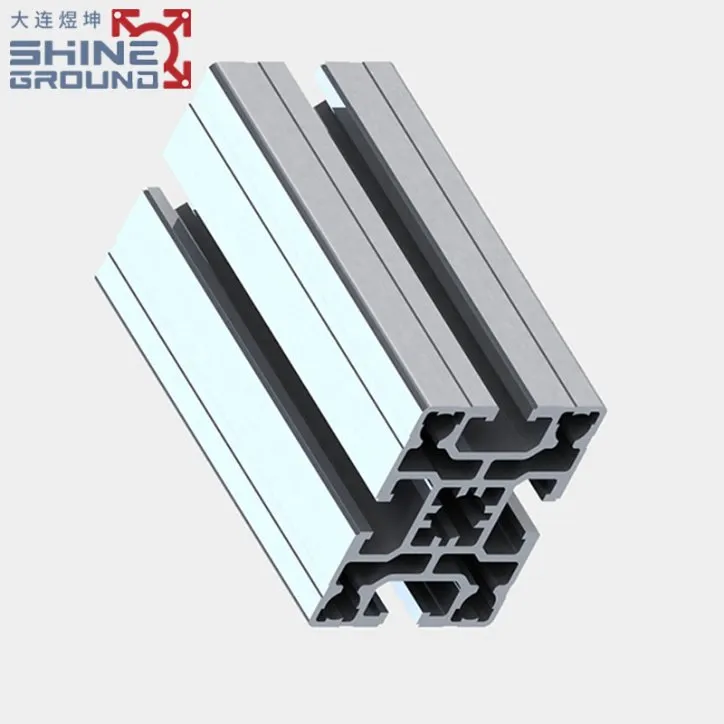

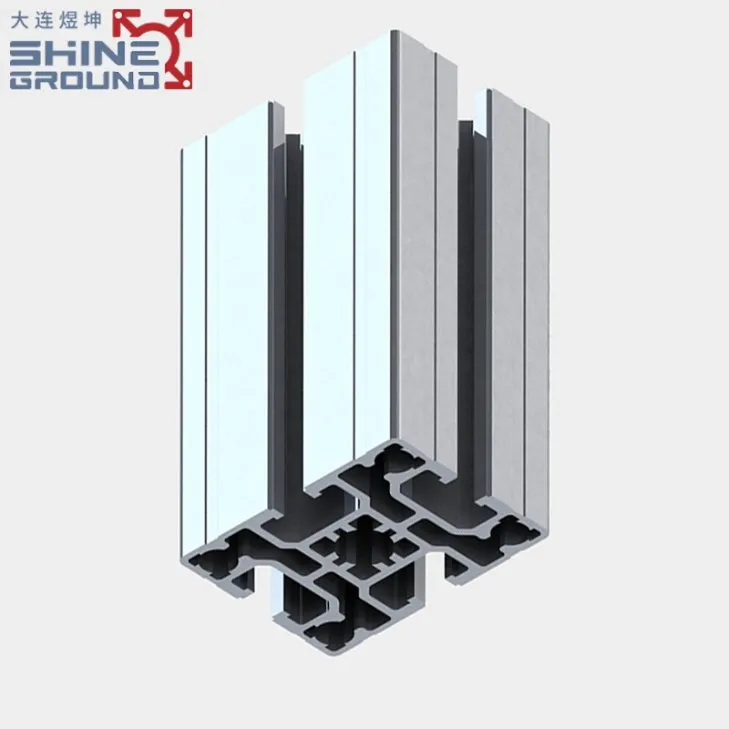

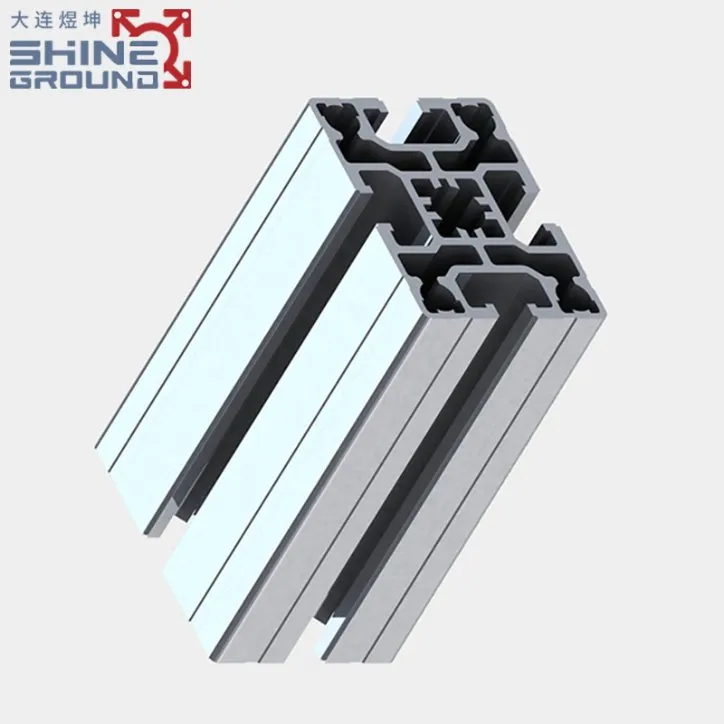

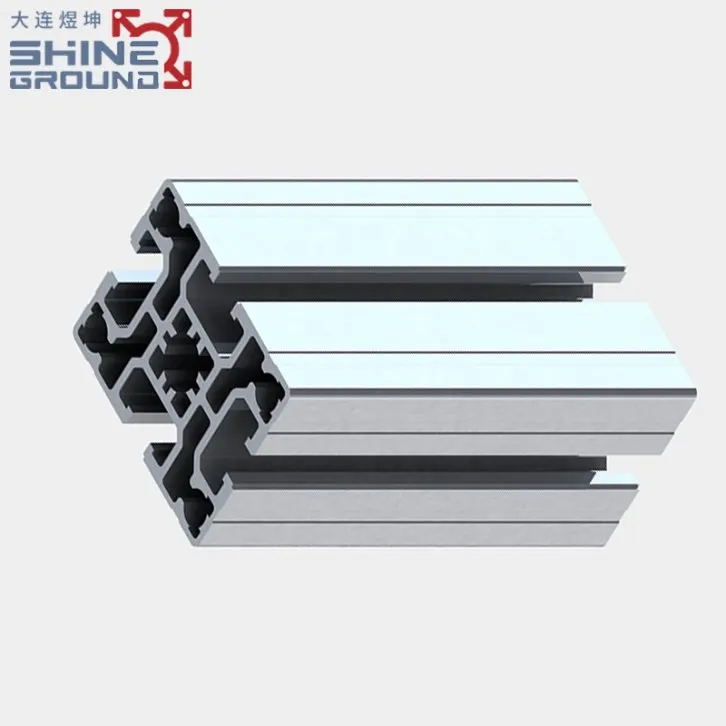

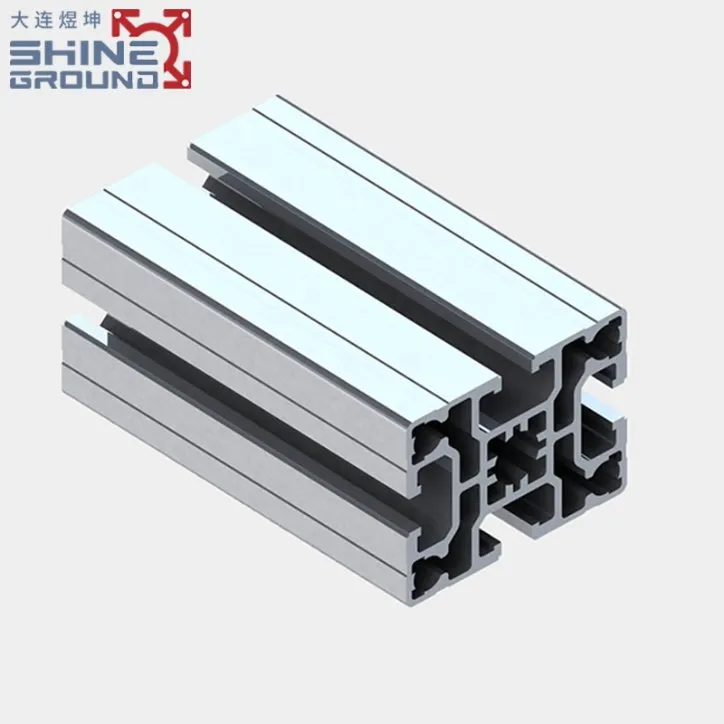

This 45x60mm Industrial Aluminum T-Slot Profile features four integrated T-slots for versatile structural framing applications. Machined from high-strength 6063 aluminum alloy and finished with a protective anodized surface, it offers an optimal balance of durability, corrosion resistance, and design flexibility. The profile’s design enables rapid assembly and reconfiguration using standard T-slot nuts and connectors.

Robust Dimensions: 45mm x 60mm cross-section for enhanced strength and load capacity.
Integrated T-Slots: Four T-slots (one per face) provide maximum flexibility for component attachment and adjustment.
High-Strength Alloy: Constructed from 6063 aluminum alloy for excellent structural integrity.
Protective Finish: Anodized surface treatment ensures superior corrosion resistance and a durable, scratch-resistant exterior.
Engineered Load Capacity: Designed for demanding structural applications requiring reliable performance.
Modular Compatibility: Seamlessly integrates with a wide range of standard T-slot accessories (brackets, connectors, fasteners, panels).
Versatile Applications: Ideal for building machine frames, workstations, safety guards, automation equipment, assembly lines, and custom structures.

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
Strut Profile PG45 45×45 R90 2 slots	8.4	8.4	4.3	4.3	1.5	RT1.11.45.045045.R90.02
Strut Profile PG45 45×45 2 slots Type A	12.9	12.9	5.7	5.7	1.9	RT1.11.45.045045.02A
Strut Profile PG45 45×45 2 slots Type B	13.7	12.1	6.1	5.4	1.9	RT1.11.45.045045.02B
Strut Profile PG45 45×45 3 slots	12.9	12.1	5.7	5.4	1.8	RT1.11.45.045045.03
Strut Profile PG45 45×45 4 slots Light	10.5	10.5	4.7	4.7	1.6	RT1.11.45.045045.04L
Strut Profile PG45 45×45 4 slots	12.1	12.1	5.4	5.4	1.8	RT1.11.45.045045.04
Strut Profile PG45 45×45 4 slots Heavy	16.5	16.5	7.4	7.4	2.4	RT1.11.45.045045.04H
Strut Profile PG45 45×60 4 slots	16.2	27.8	7.2	9.3	2.4	RT1.11.45.045060.04
Strut Profile PG45 45×90 6 slots	24.2	89.3	10.8	19.9	3.2	RT1.11.45.045090.06
Strut Profile PG45 45×90 6 slots Heavy	32.5	122.2	14.5	27.2	4.4	RT1.11.45.045090.06H
Strut Profile PG45 45×180 10 slots	48.4	640.6	21.5	71.2	5.8	RT1.11.45.045180.10
Strut Profile PG45 90×90 8 slots	163.2	163.2	36.3	36.3	5	RT1.11.45.090090.08
Strut Profile PG45 90×90 8 slots Heavy	222.9	222.9	49.6	49.6	6.8	RT1.11.45.090090.08H
Strut Profile PG45 90×90 L8 slots	121.5	121.5	32	32	4.6	RT1.11.45.090090L.08
Strut Profile PG45 90×180 12 slots	454.9	1585.7	101.1	176.2	12.7	RT1.11.45.090180.12
