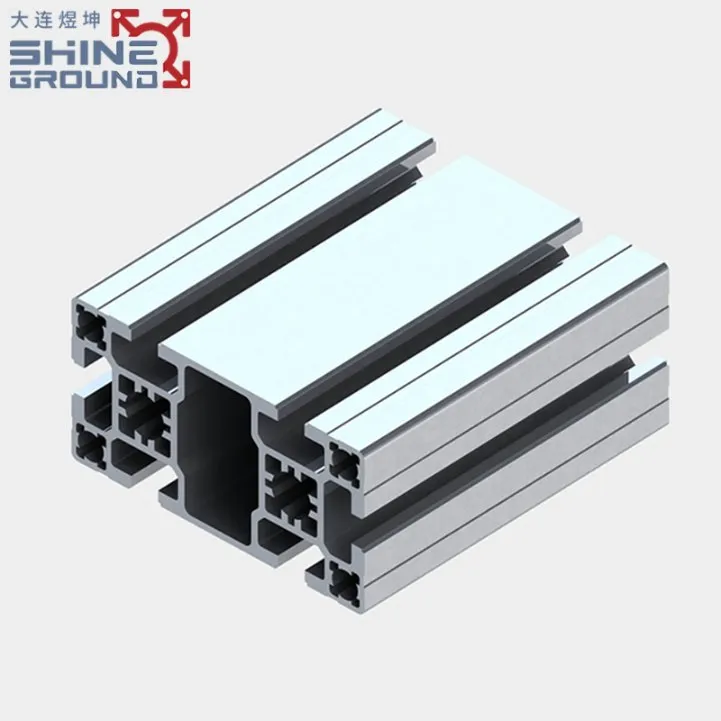

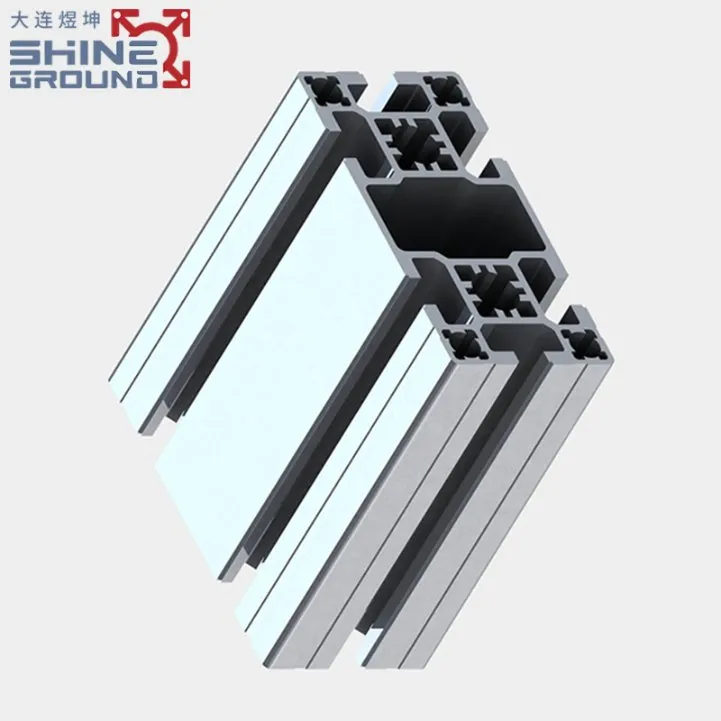

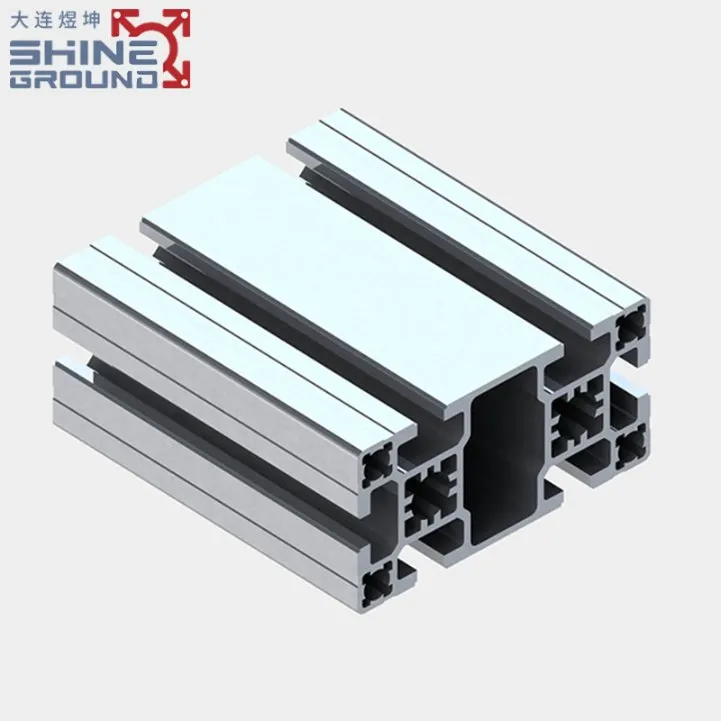

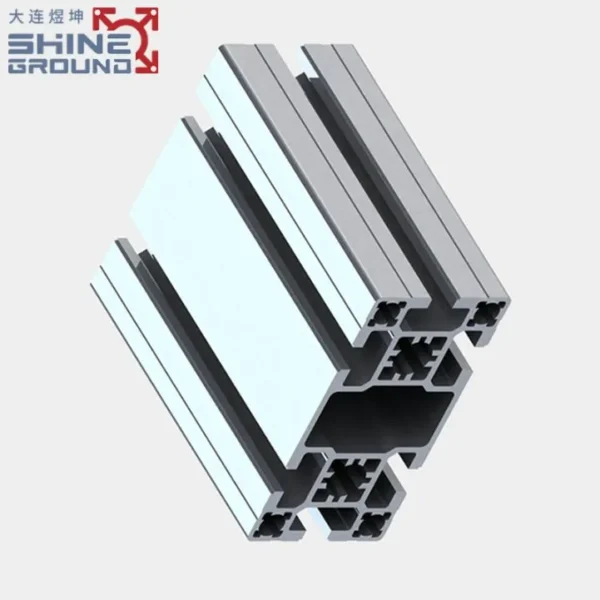

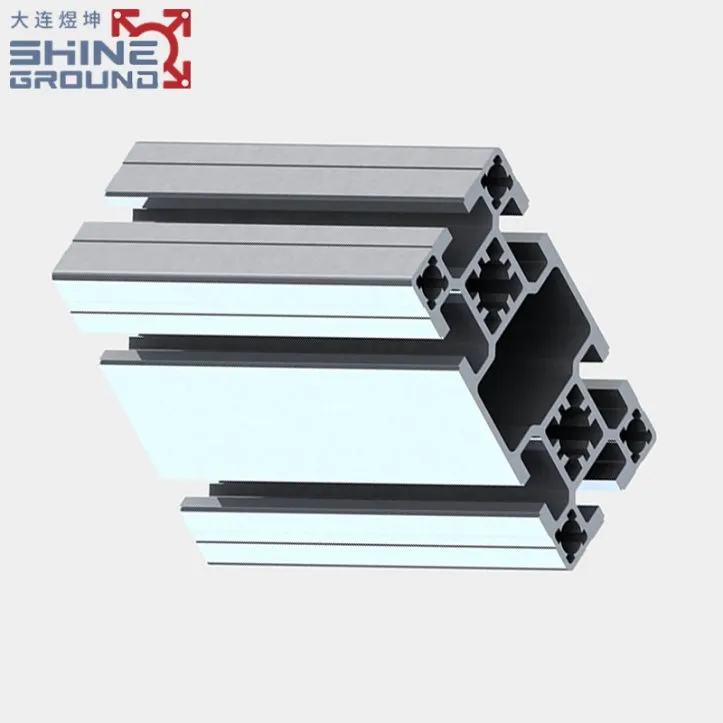

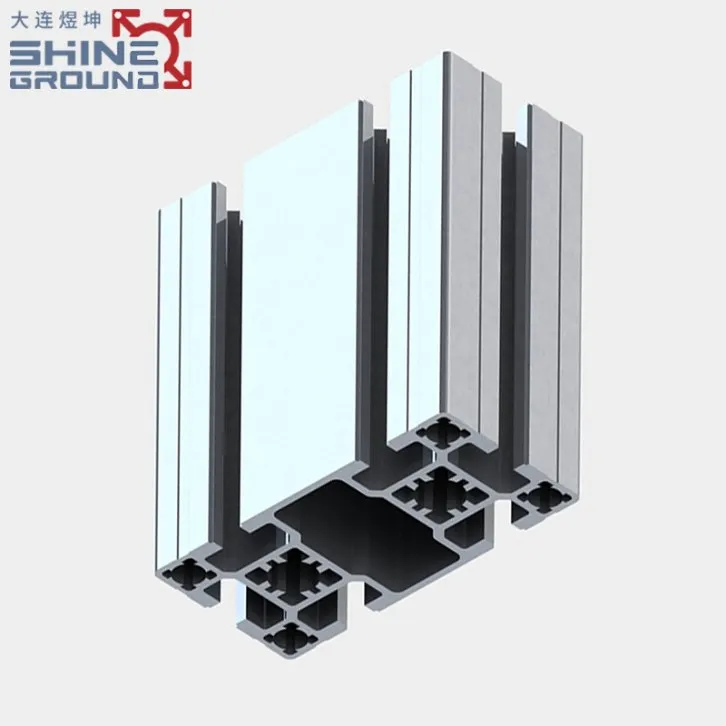

The 45×90 T-Slot Aluminum Profile is a heavy-duty structural extrusion designed for demanding industrial applications. Featuring six integrated T-slots, this profile offers exceptional strength and rigidity while providing versatile modular assembly capabilities. Its large cross-section is ideal for constructing robust frames, machinery bases, workstations, and safety guarding systems where high load-bearing capacity and stability are paramount.​​

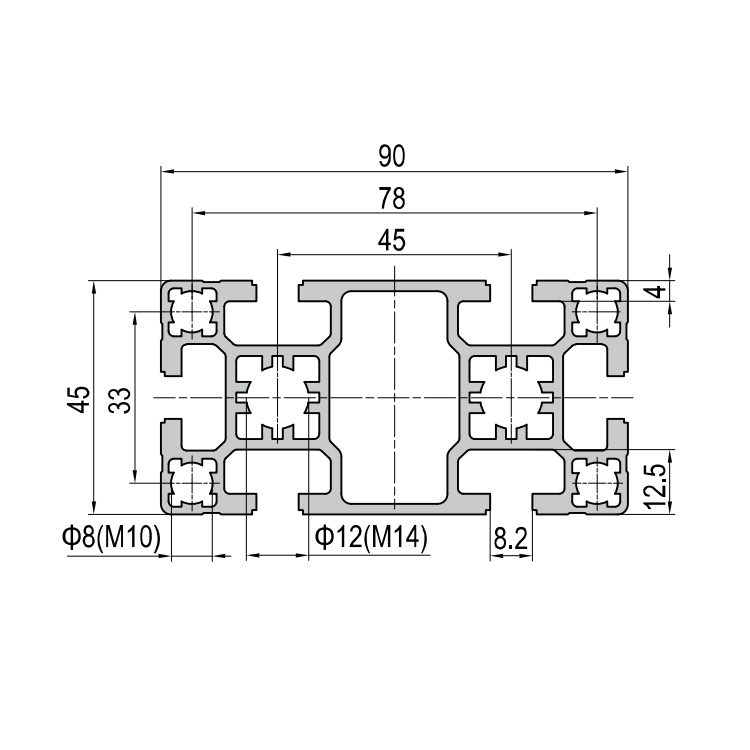

1. ​​Dimensions:​​ 45mm x 90mm cross-section.
2. ​​Slots:​​ Six integrated T-slots for maximum component mounting flexibility and connection strength.
3. ​​Material:​​ Manufactured from high-strength 6000 series aluminum alloy.
4. ​​Strength & Rigidity:​​ High moment of inertia (lx: 26.00 cm⁴, ly: 98.30 cm⁴) and moment of resistance (Wx: 11.60 cm³, Wy: 21.90 cm³) provide excellent structural integrity under load.
5. ​​Weight:​​ 3.25 kg/m – Offers a favorable strength-to-weight ratio.
6. ​​Surface Finish:​​ Standard anodized surface for enhanced corrosion resistance and durability.
7. ​​Functionality:​​ Enables quick, tool-less assembly and reconfiguration using standard T-slot nuts and fasteners. Ideal for building large frames, automation equipment, conveyors, heavy workbenches, and protective barriers.
8. ​​Heavy-Duty:​​ Designed for applications requiring superior structural performance compared to smaller profiles.
