6060 T Slot Aluminum Extrusion Profile Custom Aluminum Frame Extrusion

Category Strut Profile PG60

60 series standard industrial aluminum profiles with a groove width of 8.2mm are suitable for the design and construction of heavy load frame structures.

Product Detalis

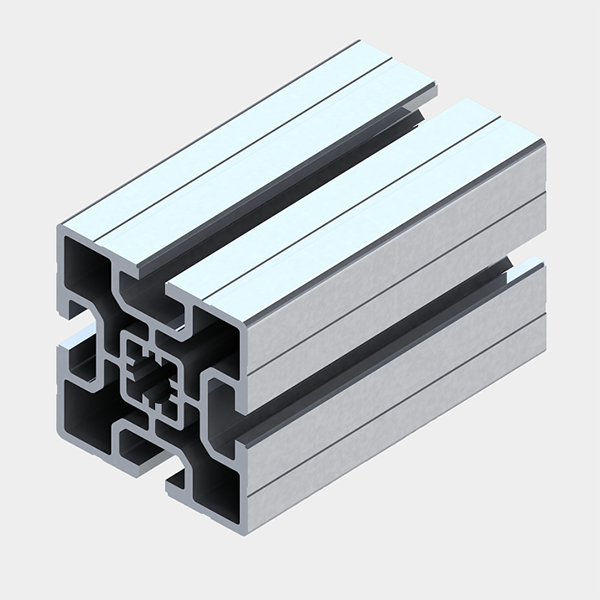

6060 series aluminum profile is an industrial aluminum profile with a groove width of 8.2mm and a central aperture of Φ 12. The surface undergoes bright oxidation treatment, which is beautiful, durable, and corrosion resistant.

It can bear heavy equipment structures and is widely used in frame structures with high stress, high strength, and heavy load, such as heavy equipment mechanical frames. Matching connectors usually use universal anchor connection pins or standard anchor connection pins for 60 profiles, which are connected and locked through internal concealment, or are connected at right angles, 45 degrees, or 135 degrees through angle aluminum.

T Slot	Section	Center Hole(Ø)	Slot Width(mm)	Slot Depth(mm)	Thickness(mm)
		12	8.2	12.5	4

Description

Moment
of
Inertialx(cm⁴)

Moment
of
Inertialy(cm⁴)

Moment
of
ResistanceWx(cm³)

Moment
of
ResistanceWy(cm³)

Mass

(kg/m)

Part No.

Strut Profile 60×60 4 slots

39.5

13.2

3.4

60.1.060060.04
