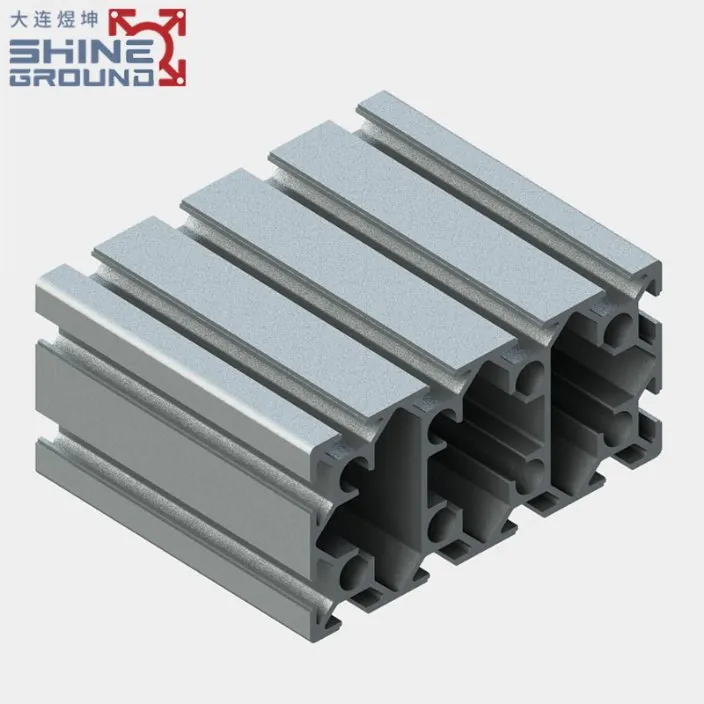

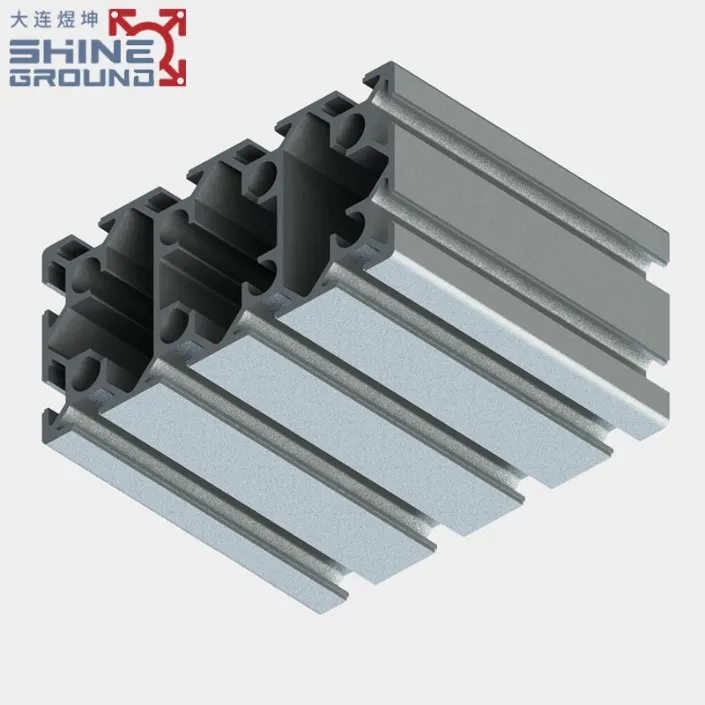

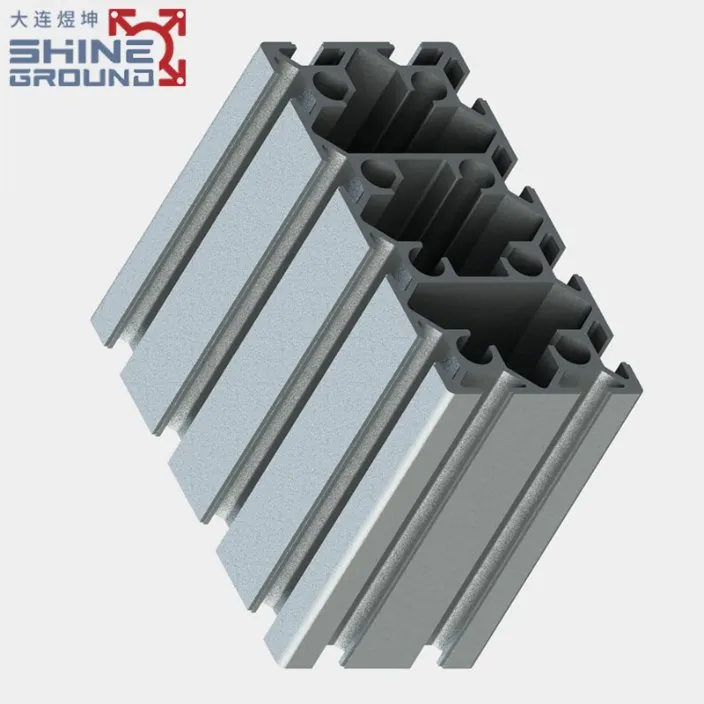

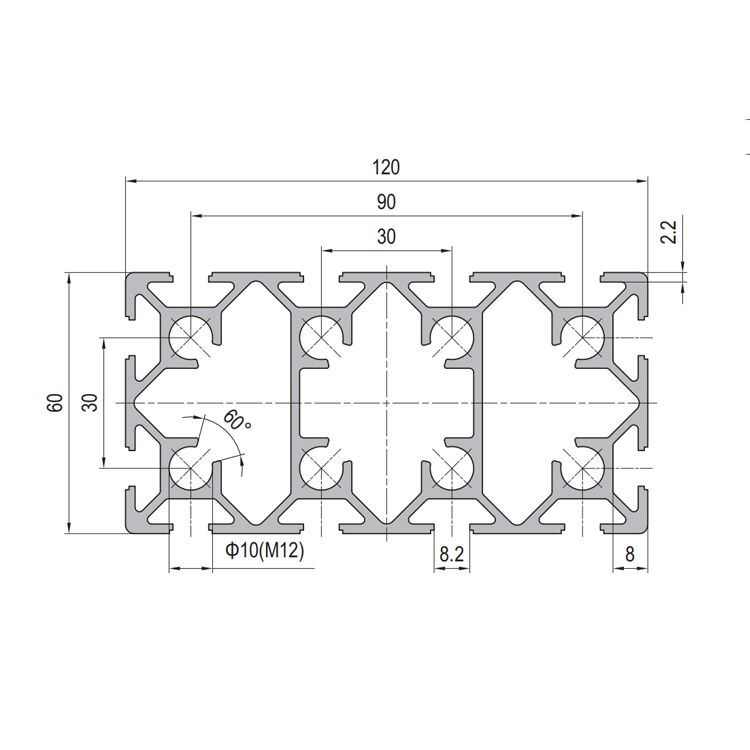

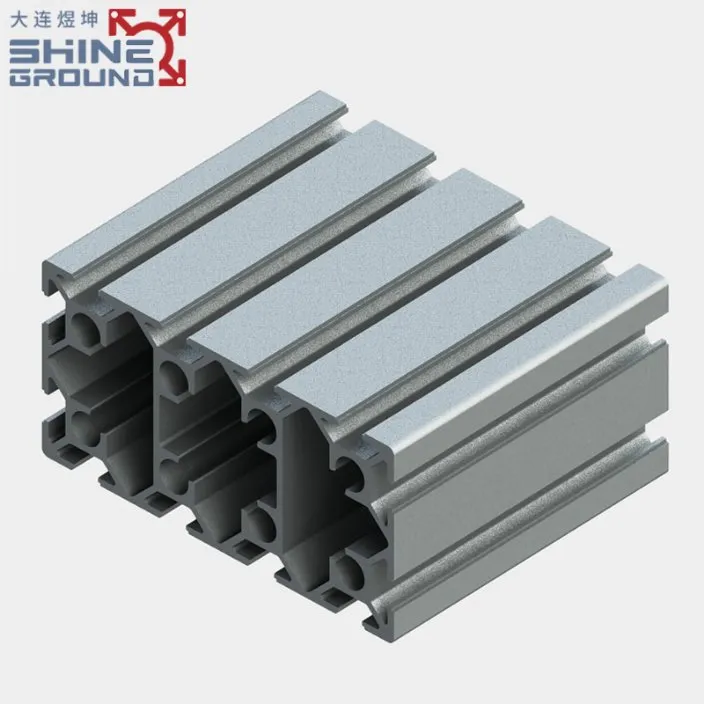

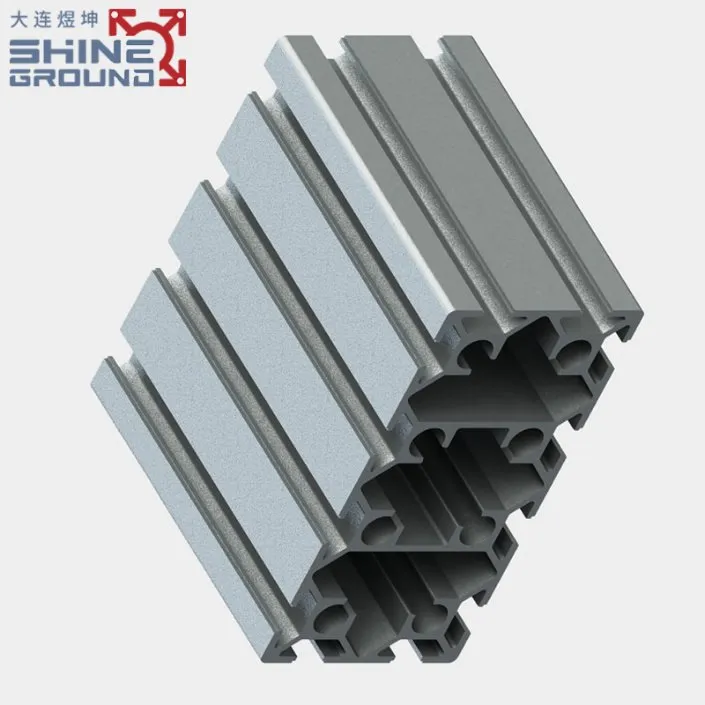

60×120 Aluminium Frame Profile 12 Slots

Description

The 60×120 Series 30 T-Slot Aluminum Extrusion Profile with 12 Slots is a heavy-duty structural component engineered for industrial applications requiring rigidity and modular flexibility. Designed with 12 continuous T-slots across multiple axes, this profile enables tool-less assembly and infinite configuration possibilities for machine frames, automation systems, conveyor structures, and robotic equipment.

1. ​​6063-T5 Aluminum Alloy​​: High strength-to-weight ratio with corrosion-resistant properties.
2. ​​12 T-Slot Design​​: Multi-axis slots for secure fastening from any angle using standard M6/M8 hardware.
3. ​​Precision Tolerances​​: ±0.1mm dimensional accuracy per meter for seamless modular integration.
4. ​​Anodized Finish​​: Enhanced durability and resistance to wear, oxidation, and environmental factors.
5. ​​Thermal/Electrical Insulation​​: Non-conductive and non-magnetic properties for safe industrial use.
6. ​​Customizable Lengths​​: Available in standard cuts up to 6 meters or custom lengths to meet project requirements.
