Description

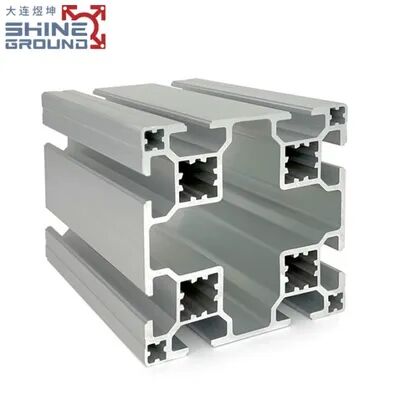

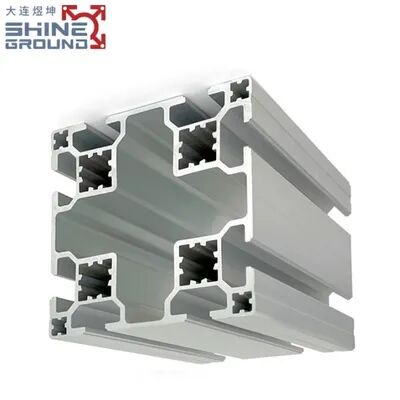

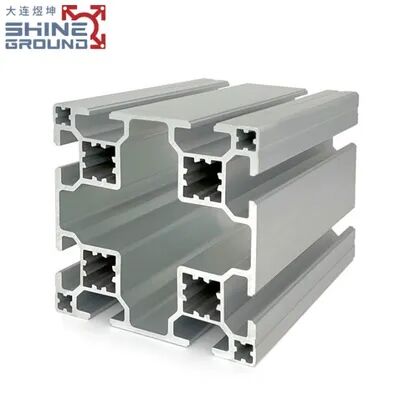

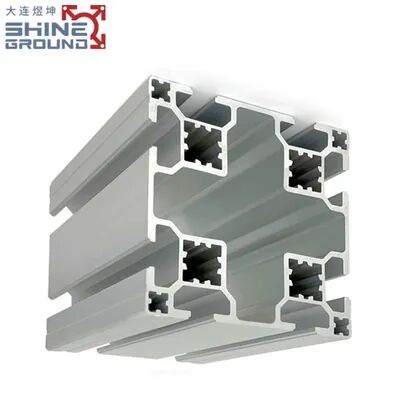

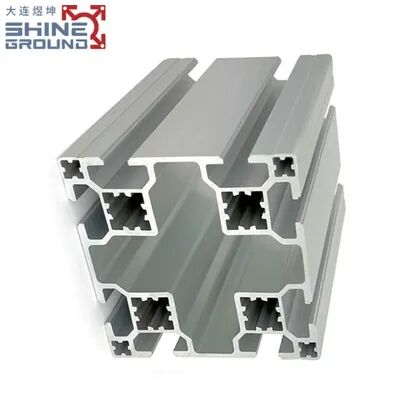

The 80×80 T-Slot Aluminum Profile is engineered for heavy-duty industrial frameworks requiring exceptional rigidity and versatile assembly. Featuring eight integrated T-slots across all faces, it enables multi-directional fastening of components like brackets, panels, and functional accessories. Extruded from 6063 aluminum alloy, this profile offers inherent strength and corrosion resistance, further enhanced by optional anodized or powder-coated finishes. Ideal for automated production lines, machinery guards, and structural enclosures, its modular design simplifies reconfiguration and expansion.

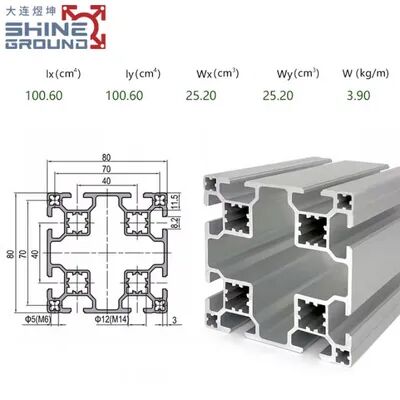

- High Load Capacity: Optimized moment of inertia (100.80 cm⁴) and section modulus (25.20 cm³) ensure stability under significant mechanical stress and dynamic loads.
- Multi-Directional Assembly: Eight precision-machined T-slots (8mm width) allow 360° component attachment, supporting complex framing systems.
- Corrosion Resistance: Natural oxide layer combined with optional surface treatments (anodizing/powder coating) extends lifespan in harsh environments.
- Precision Engineering: CNC-cut with ±0.05mm dimensional tolerance and chamfered edges for seamless integration and safety.
- Certified Durability: Complies with ISO 9001 and CE standards for material integrity and manufacturing consistency.
- Custom Flexibility: Available in standard mill finish, anodized silver/black, or custom RAL colors; cut to specified lengths (e.g., 6020mm).
