80×80 Aluminium Profile 8 Slots

Description

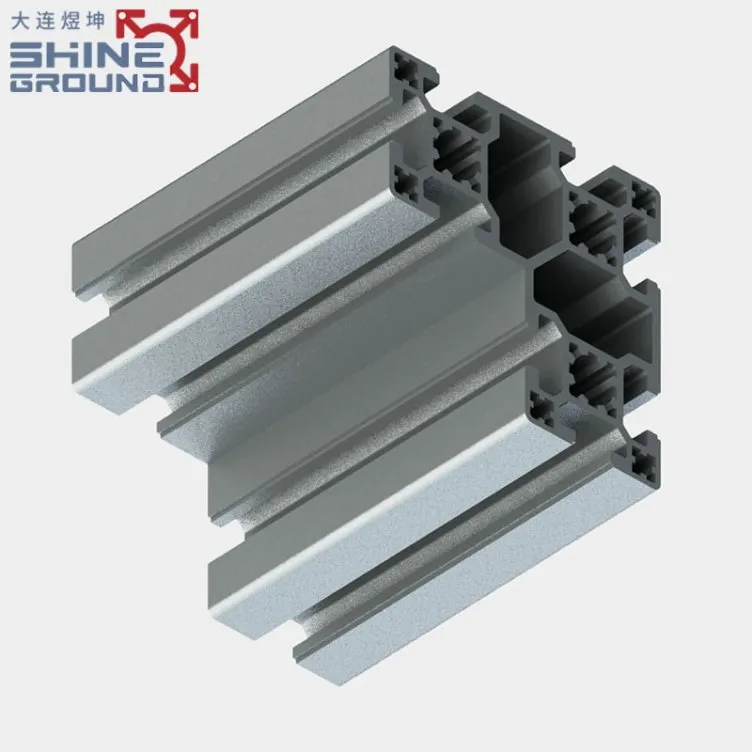

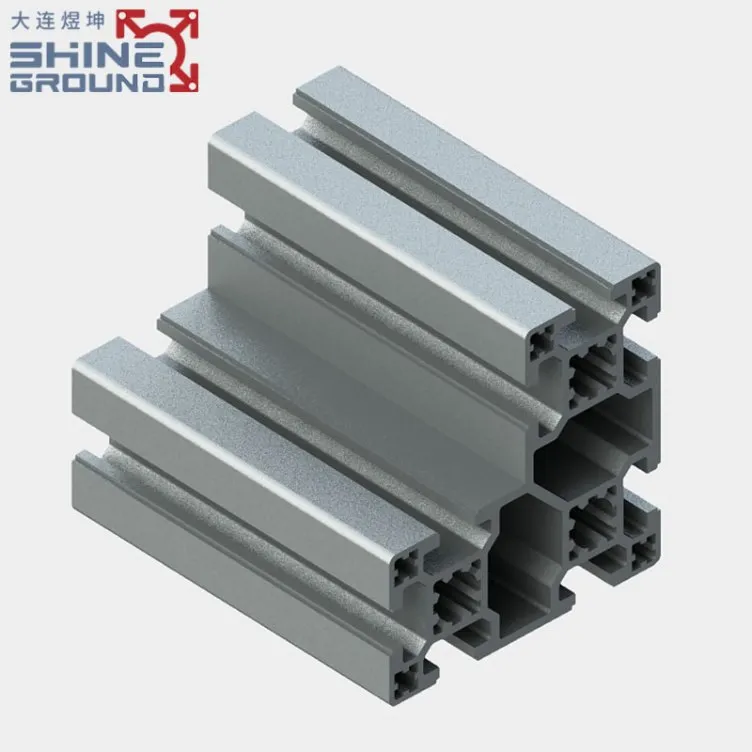

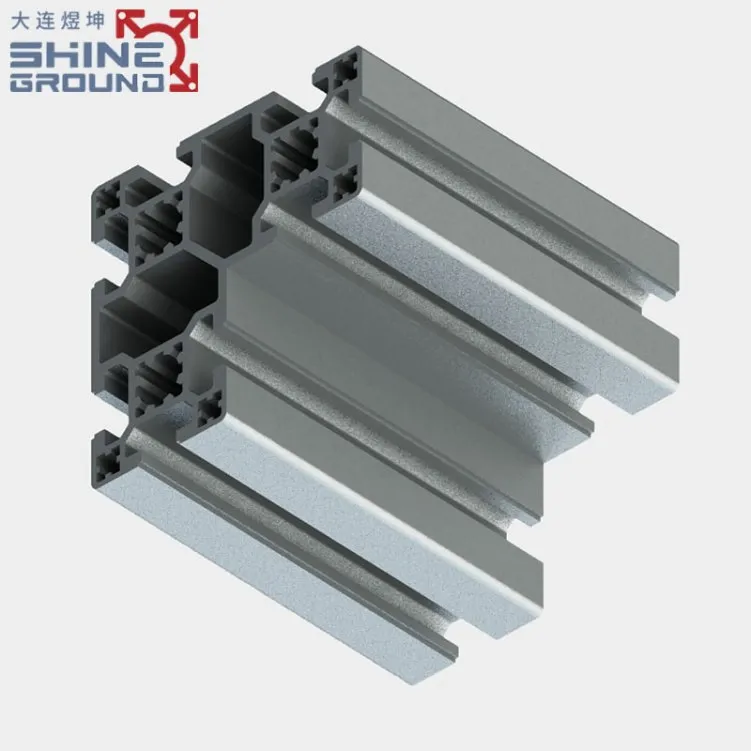

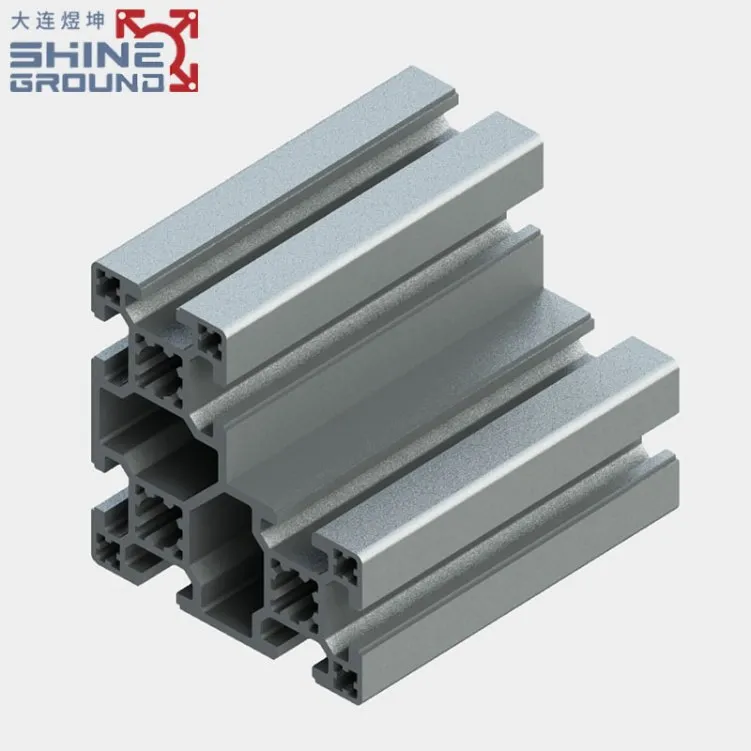

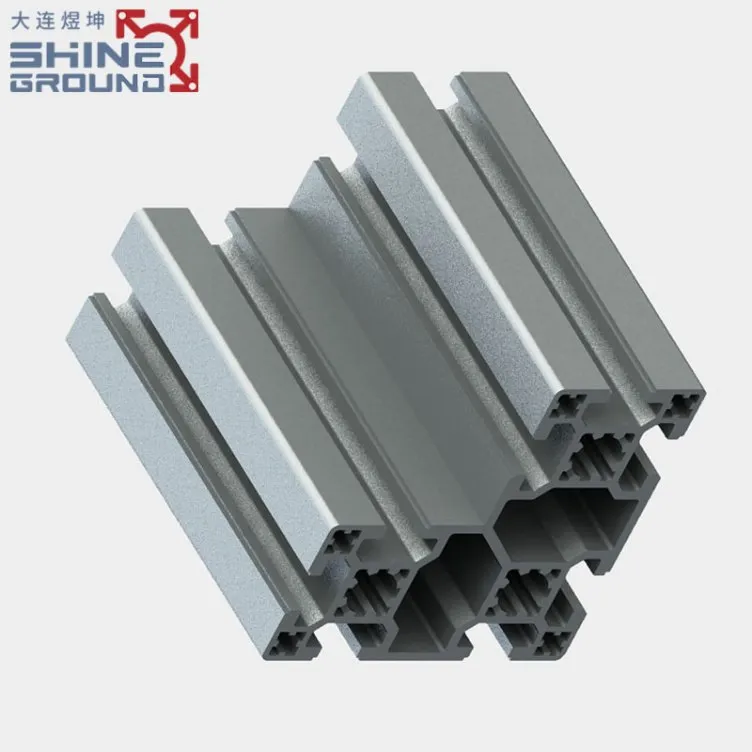

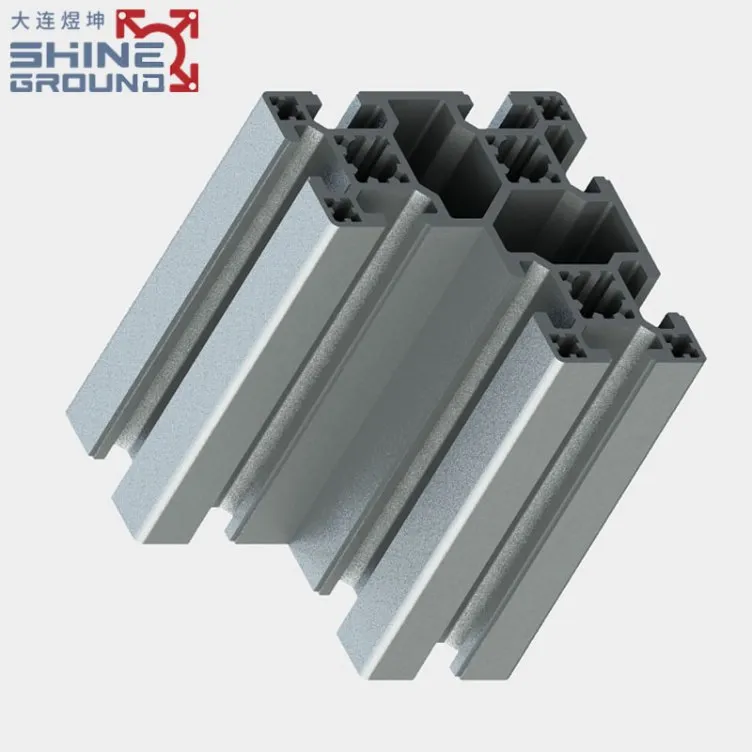

This heavy-duty 80×80 L-shaped aluminum extrusion features eight integrated T-slots, engineered for industrial applications requiring structural rigidity and versatile assembly. Constructed from high-strength 6063-T5 alloy, it supports tool-less modular designs for machinery guards, workstations, and automation frameworks. The L-shaped geometry enhances corner stability while reducing joint complexity.

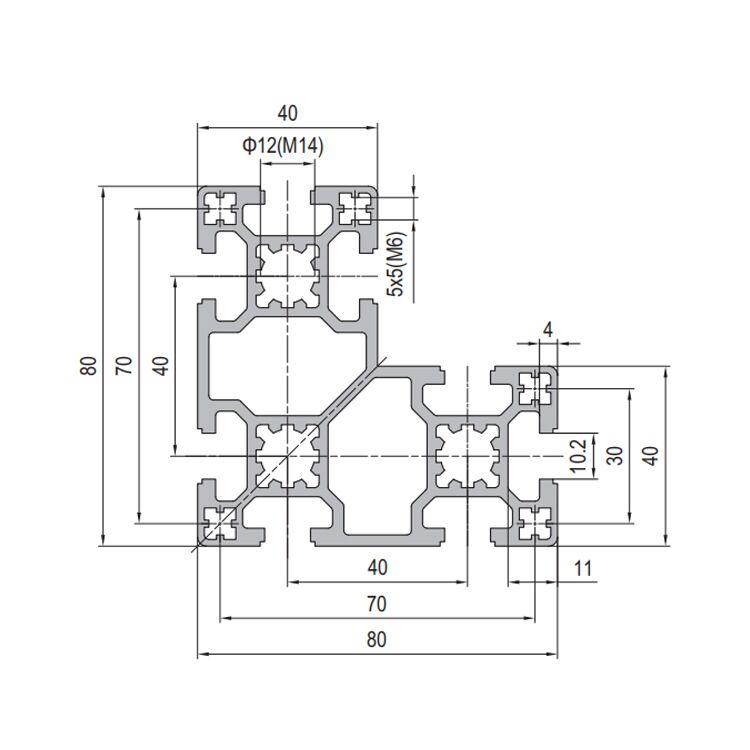

1. ​​Dimensions & Design​​: 80mm × 80mm L-section profile with eight T-slots for multi-angle hardware attachment.
2. ​​Material Strength​​: Precision-extruded 6063-T5 alloy offering corrosion resistance and durability.
3. ​​High Load Capacity​​: 31.8 cm³ resistance moment for demanding structural applications.
4. ​​Optimized Weight​​: 5.1 kg/m mass balances robustness and maneuverability.
5. ​​Surface Protection​​: Standard mill finish; optional anodizing for enhanced wear resistance and aesthetics.
6. ​​Industrial Applications​​: Ideal for machinery frames, equipment guards, automated systems, and custom frameworks.
7. ​​Assembly Advantages​​: Tool-less modular design enables rapid reconfiguration and reuse.
