​​Aluminum Angle Profile 40x40x5mm​​

40x40x5mm extruded aluminum angle profile for structural supports, machine frames & industrial applications. Satin anodized finish. Custom lengths available.

Additional information

Dimensions

40*40*5 mm

Material

6063

Shape

L Shape

Surface Finishing

Anodic Oxidation

Certification

CE, ISO

MOQ

1 Meter

Product Detalis

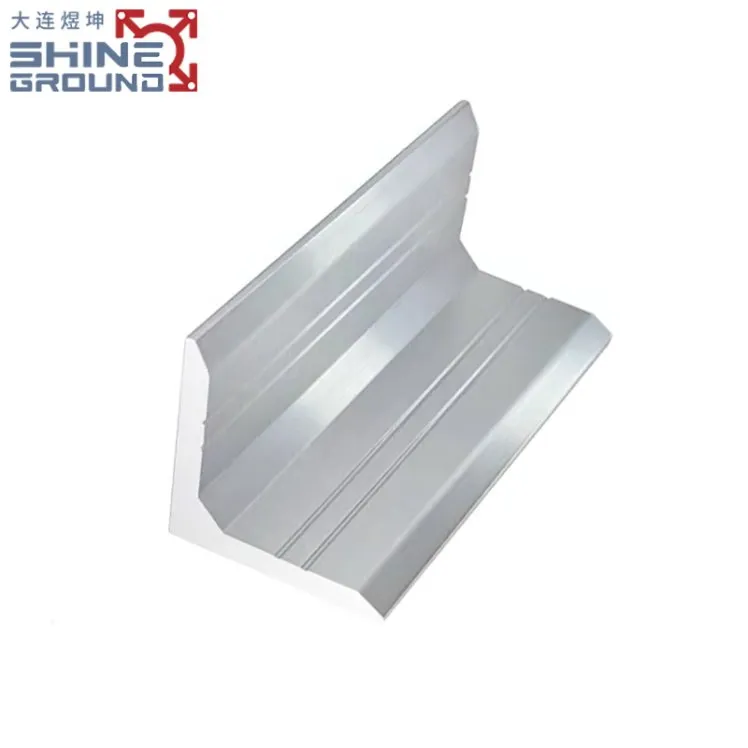

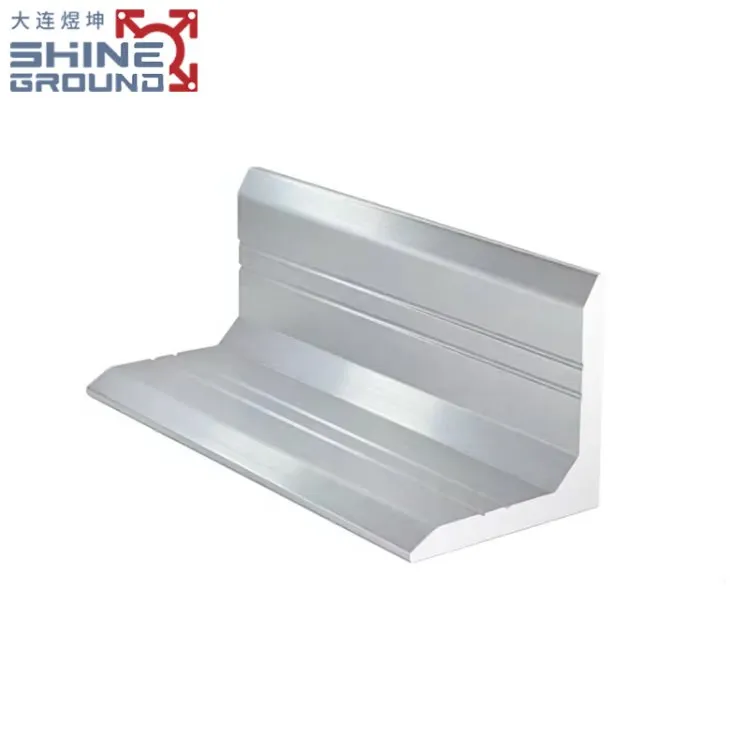

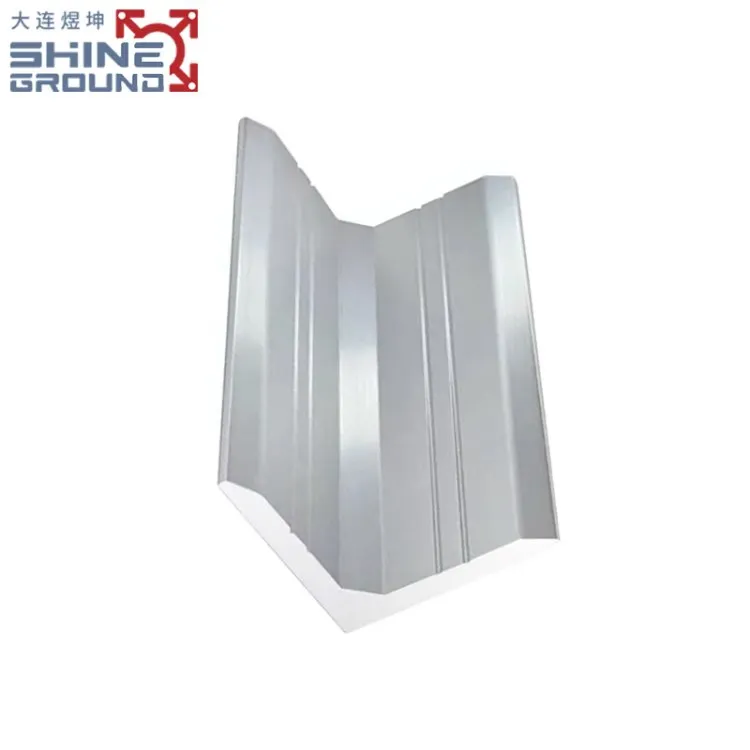

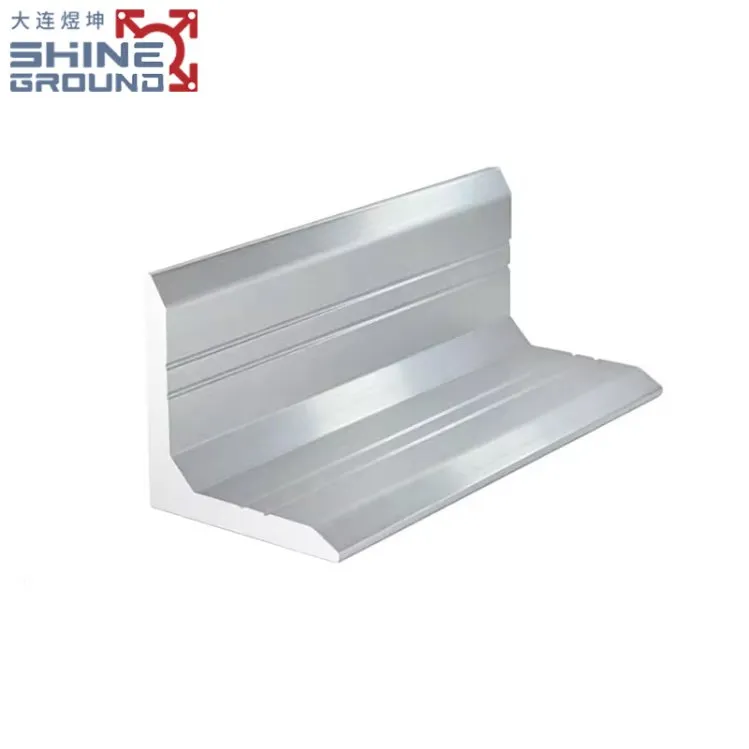

A 40x40x5mm extruded aluminum angle profile designed for structural applications. Manufactured according to industrial standards with satin anodized finish for enhanced durability.

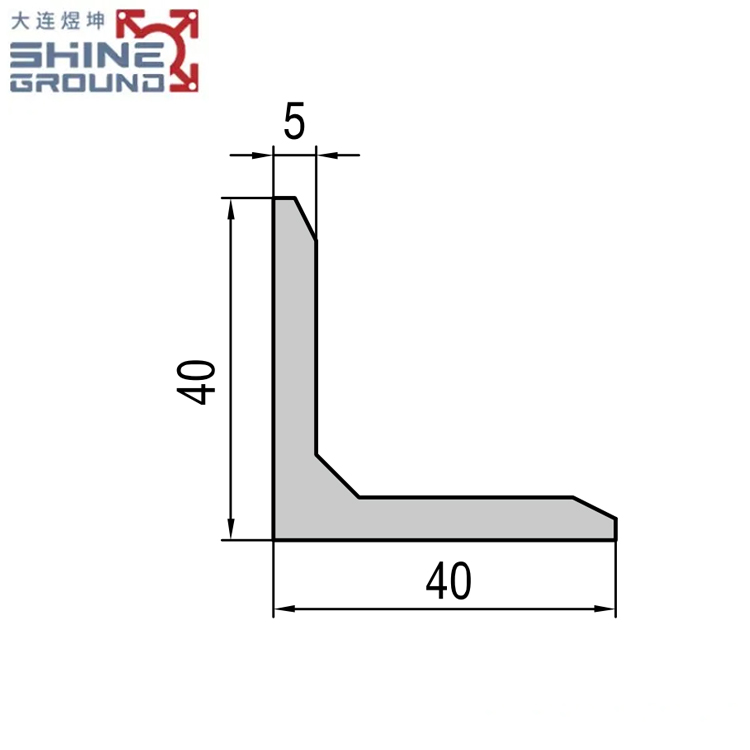

  1. Dimensions: 40mm x 40mm x 5mm thickness
  2. Weight: 1.00 kg per meter
  3. Surface Treatment: Standard satin anodized (black/natural options available)
  4. Max. Length: 6,000mm cut from 6,100mm extrusions
  5. Customizable: Non-standard sizes in small batches
  6. Applications: Equipment supports, safety railings, transport brackets, and modular framing systems



Description Mass(kg/m)
Angle Profile 20x20x3 0.3
Angle Profile 30x30x4 0.6
Angle Profile 35x35x4 0.9
Angle Profile 40x40x5 1
Angle Profile 50x50x9 2.3
Angle Profile 100x100x15 8.5
