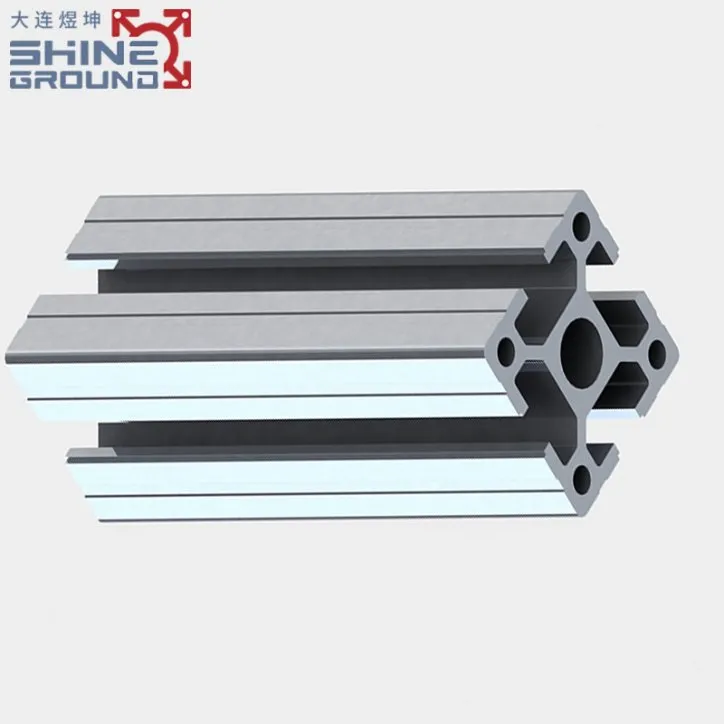

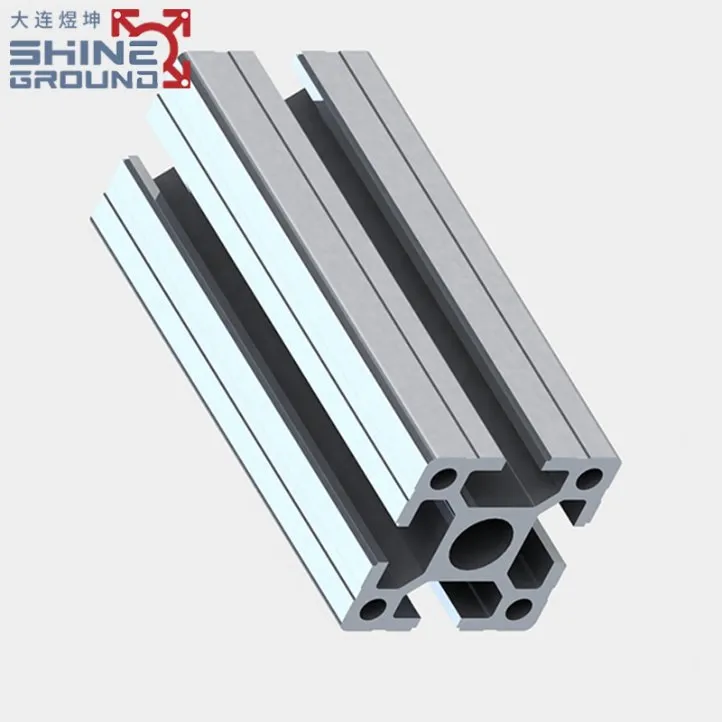

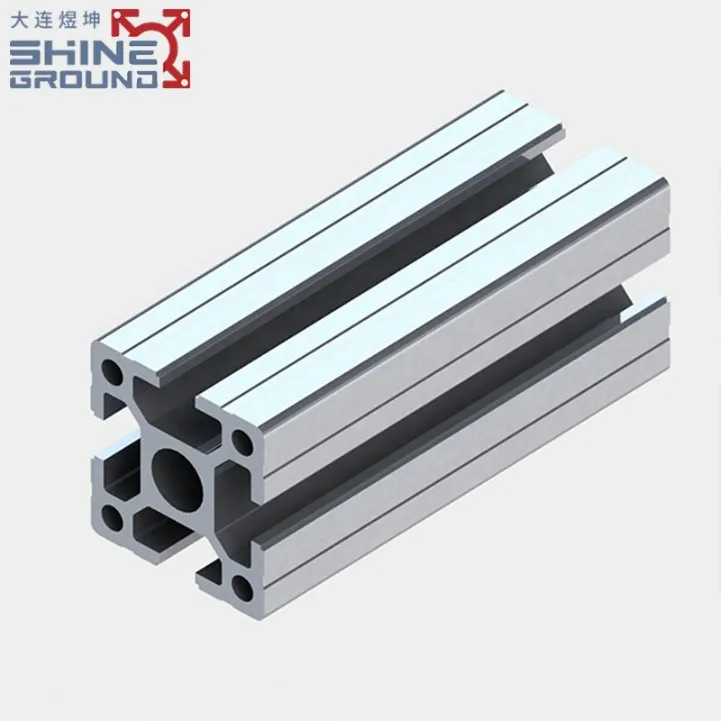

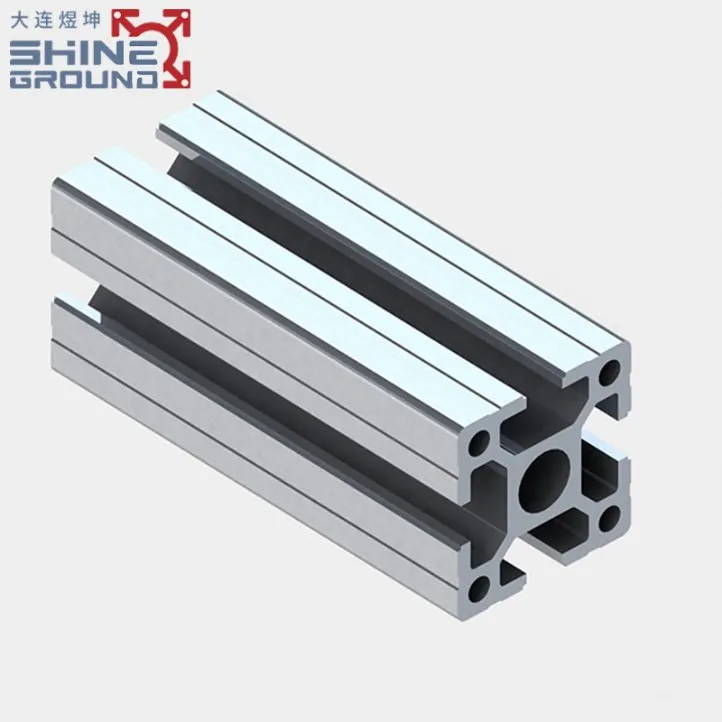

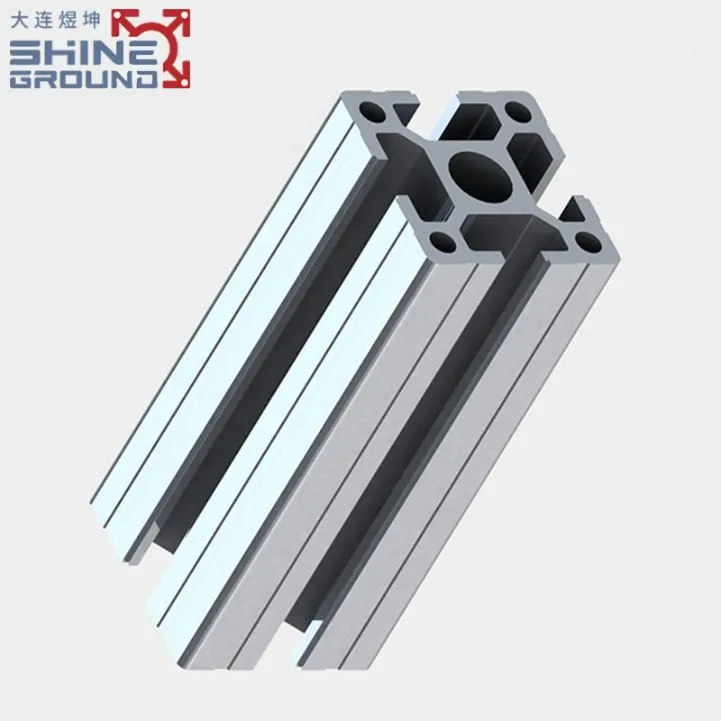

Heavy-duty 40×40 aluminum T-slot profile with 4 slots, designed for industrial machinery frames requiring high load capacity up to 500kg/m.
| Product Information | |||
| Model NO. | SGAP0405 | Type | Industrial Aluminium Profile |
| Shape | Square | Certification | CE, ISO |
| Alloying Ingredient | 6063 | Color | Sliver, Black, Customized |
| MOQ | 1 Meter | Surface Finishing | Anodic Oxidation |
This heavy-duty 40×40 aluminum T-slot profile is engineered for industrial machinery and structural applications requiring exceptional strength and modular assembly. Designed with four precision T-slots, it enables secure and flexible mounting for components in heavy-load environments, such as automation systems, robotic workstations, and material handling equipment.

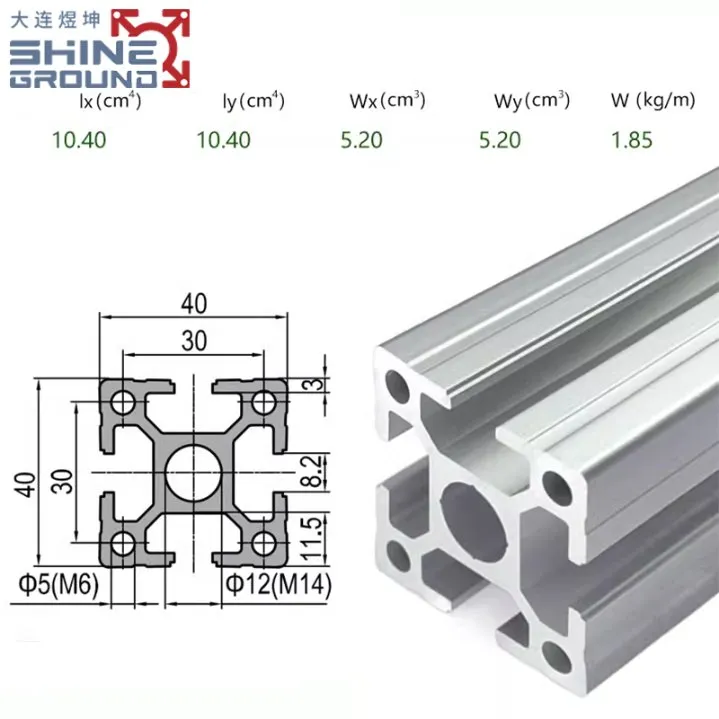

| Description | Moment of Inertia lx(cm4) |
Moment of Inertia ly(cm4) |
Moment of Resistance Wx(cm3) |
Moment of Resistance Wy(cm3) |
Mass (kg/m) |
Part No. |
| Strut Profile PG40 40×40 R90 2 slots | 8.3 | 8.3 | 3 | 1.9 | 1.3 | RT1.11.40.040040.R90.02 |
| Strut Profile P40 40×40 1 slots | 10.4 | 10.4 | 5.2 | 5 | 1.7 | RT1.11.40.040040.01 |
| Strut Profile PG40 40×40 2 slots Type A | 9.6 | 9.6 | 4.5 | 4.5 | 1.5 | RT1.11.40.040040.02A |
| Strut Profile PG40 40×40 2 slots Type B | 9.6 | 8.6 | 4.8 | 4.3 | 1.5 | RT1.11.40.040040.02B |
| Strut Profile PG40 40×40 3 slots | 9.1 | 8.6 | 4.5 | 4.3 | 1.5 | RT1.11.40.040040.03 |
| Strut Profile PG40 40×40 4 slots Super Light | 7.3 | 7.3 | 3.6 | 3.6 | 1.3 | RT1.11.40.040040.04SL |
| Strut Profile PG40 40×40 4 slots Light | 8.6 | 8.6 | 4.3 | 4.3 | 1.5 | RT1.11.40.040040.04L |
| Strut Profile PG40 40×40 4 slots | 9.1 | 9.1 | 4.6 | 4.6 | 1.6 | RT1.11.40.040040.04 |
| Strut Profile PG40 40×40 4 slots Heavy | 11.5 | 11.5 | 5.8 | 5.8 | 2 | RT1.11.40.040040.04H |
| Strut Profile PG40 40×60 4 slots | 13.3 | 27.6 | 6.6 | 9.2 | 2.3 | RT1.11.40.040060.04 |
| Strut Profile PG40 40×80 6 slots Super Light | 14.3 | 52 | 7.2 | 13 | 2.3 | RT1.11.40.040080.06SL |
| Strut Profile PG40 40×80 6 slots Light | 15.8 | 59.1 | 7.9 | 14.8 | 2.5 | RT1.11.40.040080.06L |
| Strut Profile PG40 40×80 6 slots | 16.6 | 63.2 | 8.3 | 15.8 | 2.7 | RT1.11.40.040080.06 |
| Strut Profile PG40 40×80 6 slots Heavy | 22.2 | 80.8 | 11.1 | 20.2 | 3.6 | RT1.11.40.040080.06H |
| Strut Profile PG40 40×120 8 slots | 24.1 | 194.9 | 12.1 | 32.5 | 3.8 | RT1.11.40.040120.08 |
| Strut Profile PG40 40×120 8 slots Heavy | 33 | 255.3 | 16.5 | 42.6 | 5.2 | RT1.11.40.040120.08H |
| Strut Profile PG40 40×160 10 slots | 31.6 | 435.7 | 15.8 | 54.5 | 4.8 | RT1.11.40.040160.10 |
| Strut Profile PG40 40×160 10 slots Heavy | 43.7 | 582.2 | 21.8 | 72.8 | 6.8 | RT1.11.40.040160.10H |
| Strut Profile PG40 80×80 8 slots | 109.9 | 109.9 | 27.5 | 27.5 | 4.2 | RT1.11.40.080080.08 |
| Strut Profile PG40 80×80 8 slots Heavy | 148.2 | 148.2 | 37.1 | 37.1 | 5.7 | RT1.11.40.080080.08H |
| Strut Profile PG40 80×80 R90 6 slots | 109.5 | 36.4 | 19.6 | 10.2 | 3.4 | RT1.11.40.080080.R90.06 |
| Strut Profile PG40 80×80 L 8 slots | 111.8 | 56 | 20.1 | 11.9 | 4 | RT1.11.40.080080L.08 |
| Strut Profile PG40 80×120 10 slots | 222.1 | 449.2 | 55.5 | 74.8 | 8.3 | RT1.11.40.080120.10 |
| Strut Profile PG40 80×160 12 slots | 287.5 | 975.5 | 71.9 | 121.9 | 10.4 | RT1.11.40.080160.10 |
| Strut Profile PG40 80×200 14 slots | 353.1 | 1789.8 | 88.3 | 179 | 12.3 | RT1.11.40.080200.14 |
| Strut Profile PG40 120×120 12 slots | 659.1 | 659.1 | 109.9 | 109.9 | 11.5 | RT1.11.30.120120.12 |
