Universal Internal Linear Butt-Joint Bar Connector for T-Slot Aluminum Extrusions (Model: SGFE2565)

Description

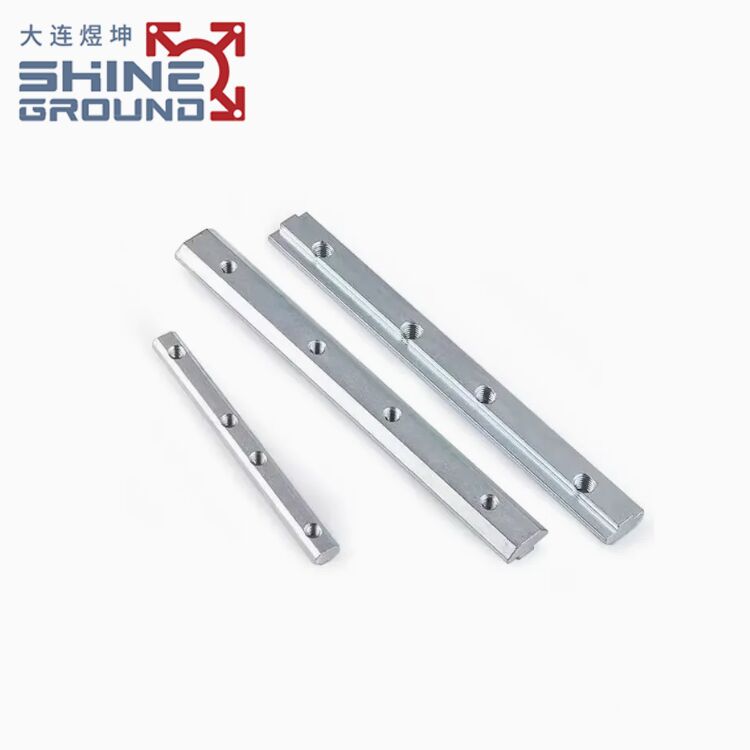

The SGFE2565 Universal Internal Linear Bar Connector is an industrial-grade, structural end-to-end butt-joint extension matrix engineered exclusively to create high-strength, seamless linear connections between two segments of metric T-slot and V-slot aluminum profiles. Precision-machined from a heavy-duty structural carbon steel core and treated with a protective anti-corrosion zinc plating, this specialized inline joiner slides directly into the longitudinal guide slots of the profile alignment interface. By securing the extension joint entirely from within the channel, it provides high resistance to bending moments, structural deflection, and mechanical joint sagging under long-span static or dynamic equipment loads. It serves as an essential internal framing hardware component for extending large-scale automated conveyor rail lines, heavy CNC gantry tracks, commercial architectural framing, and cleanroom warehouse sorting arrays.

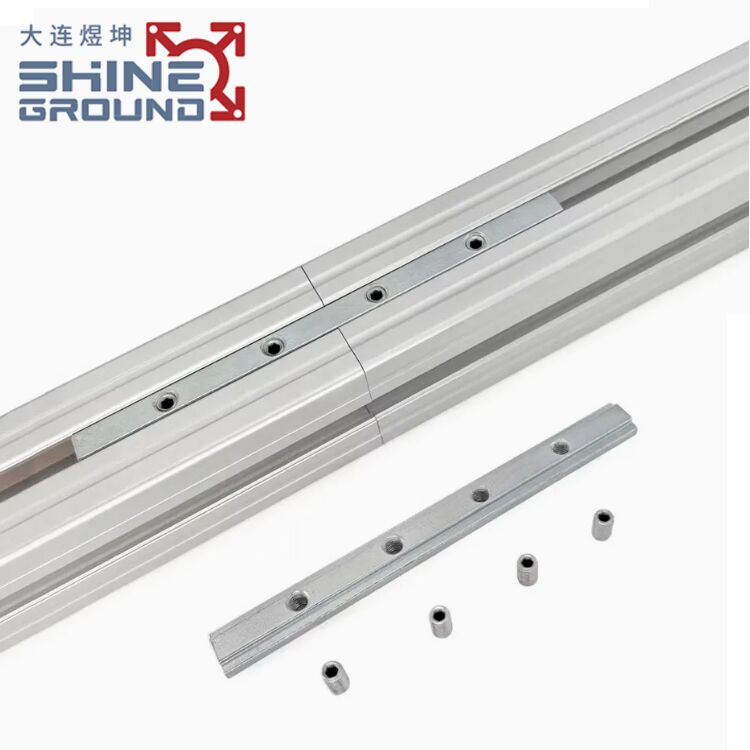

Equipped with a precision 4-point set screw locking configuration, the SGFE2565 allows field assembly technicians to execute exact flush leveling across the profile junction, delivering a smooth, uninterrupted metal transition that keeps secondary linear motion bearings or drop-in paneling clear of mechanical obstructions.

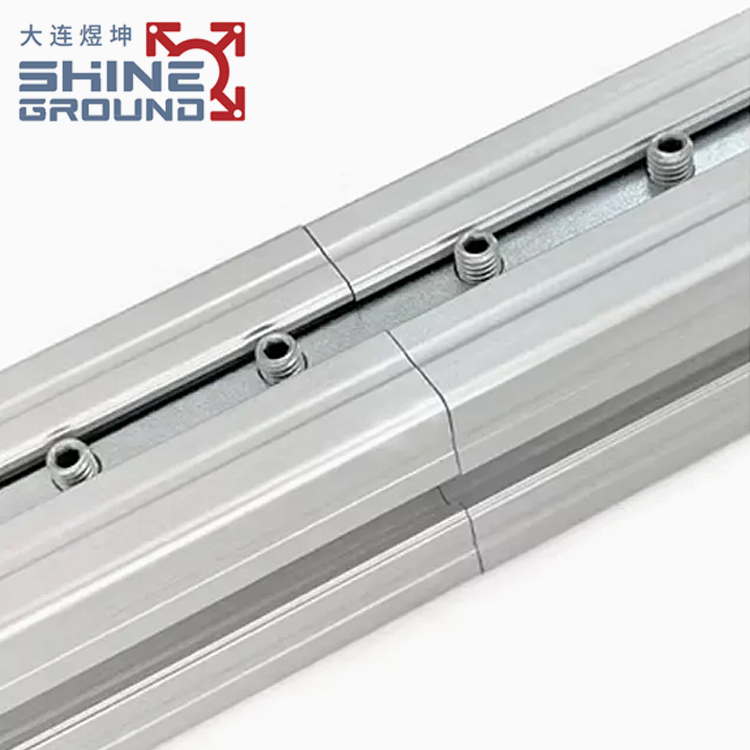

• 100% Invisible Inline Joint Seating: Sits completely inside the continuous extrusion groove channel, maintaining flush exterior lines for cleanroom compliance and unobstructed panel fitment.

• Aggressive 4-Screw Precision Alignment: Features four integrated heavy-duty set screws that deliver balanced mechanical clamping pressure to eliminate seam sagging and joint joint-wobbling.

• Machining-Free Drop-In Setup: Connects extrusion sections end-to-end instantly without requiring dynamic drilling, counterboring, or specialized milling modifications to the structural rails.

• Premium Zinc-Plated Carbon Steel Matrix: Forged from structural-grade high-tensile carbon steel with a commercial zinc finish to secure superior shear-load limits and resistance to factory humidity.

• Multi-Series Cross Compatibility: Engineered in multiple precise width profiles to seamlessly match standard 20, 30, 40, and 45 series T-slot framing specifications.

Shipping & Supply Capacity

• Continuous Accessories Stock: We maintain over 2,000+ standard parts and framing fasteners in perpetual stock at our production base to secure instant dispatch.

• 48-Hour Rapid Dispatch: Accelerated pallet packaging, industrial-strength bundling, and quick container loading directly out of our direct factory facility.

• Certified Factory Tolerances: 100% precision checked to guarantee exact linear bar tolerances and effortless slot-sliding alignment across global automated framing installations.
