PG20 Aluminum Strut Profile R90-2 Slots

Category Strut Profile PG20

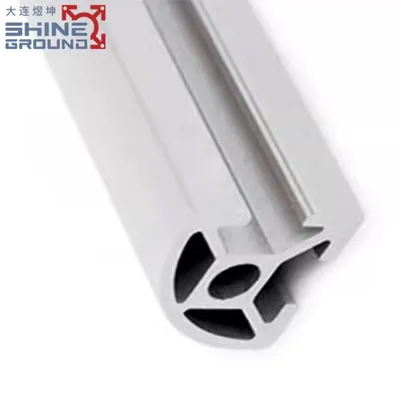

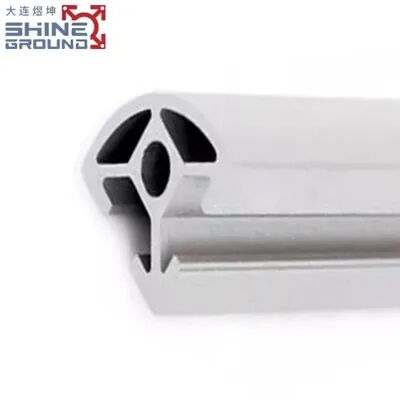

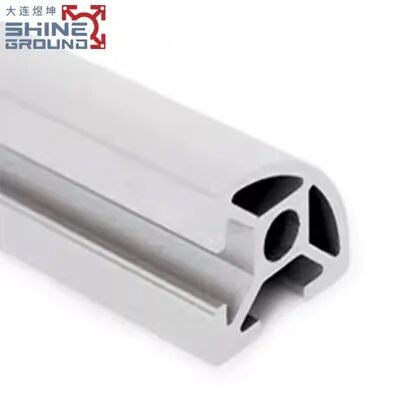

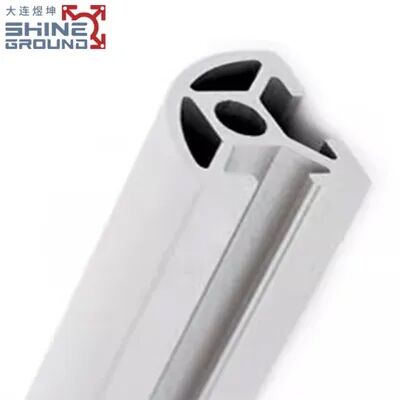

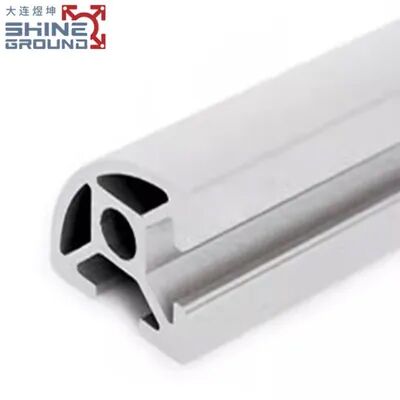

20x20mm T-slot aluminum profile with dual slots and R90 corners. Made from high-strength 6063-T5 alloy, anodized for corrosion resistance. Ideal for modular framing, workstations, and automation. Custom lengths available.

Product Information
Model NO.	SGAP1006	Type	Industrial Aluminium Profile
Shape	Square	Certification	CE, ISO
Alloying Ingredient	6063	Color	Sliver, Black, Customized
MOQ	1 Meter	Surface Finishing	Anodic Oxidation

Product Detalis

This 20x20mm T-slot aluminum profile is engineered for industrial applications requiring precision, durability, and flexibility. Featuring dual T-slots and smooth R90 corners, it enables seamless integration of connectors, brackets, and accessories for constructing machine frames, workbenches, and automation systems. Made from 6063-T5 aluminum alloy, it combines lightweight strength with corrosion resistance, ideal for demanding environments.

High-Strength Material: 6063-T5 alloy ensures durability with a tensile strength of 220 MPa.
Dual T-Slot Design: Enables modular assembly for industrial frameworks and equipment.
Anodized Finish: Clear or black oxidation enhances corrosion resistance and aesthetics.
Precision Corners: R90 radius edges minimize sharpness while maintaining structural integrity.
Customizable Lengths: Available in standard 6m lengths or custom-cut sizes.
Load Capacity: Supports up to 100kg per meter for robust applications.

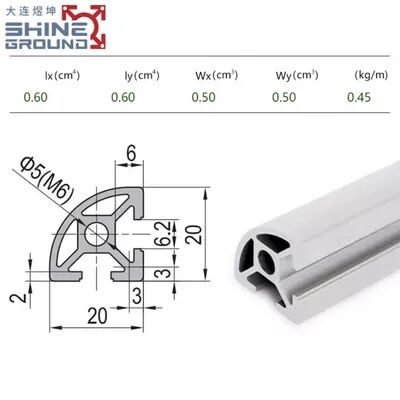

Description	Moment of Inertia lx(cm4)	Moment of Inertia ly(cm4)	Moment of Resistance Wx(cm3)	Moment of Resistance Wy(cm3)	Mass (kg/m)	Part No.
Strut Profile PG20 20×20 R90 2 slots	0.6	0.6	0.5	0.5	0.45	RT1.11.20.020020.R90.02
Strut Profile PG20 20×20 4 slots	0.8	0.8	0.8	0.8	0.5	RT1.11.20.020020.04
Strut Profile PG20 20×40 6 slots	1.4	5.1	1.4	2.5	0.9	RT1.11.20.020040.06
Strut Profile PG20 20×60 8 slots	2	15.8	2	5.3	1.3	RT1.11.20.020060.08
Strut Profile PG20 20×80 10 slots	2.6	35.9	2.6	9	1.7	RT1.11.20.020080.10
Strut Profile PG20 40×40 8 slots	8.9	8.9	4.5	4.5	1.3	RT1.11.20.040040.08
