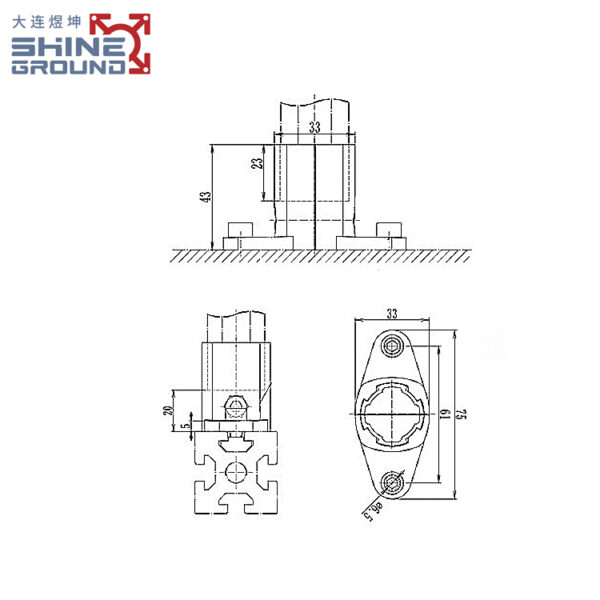

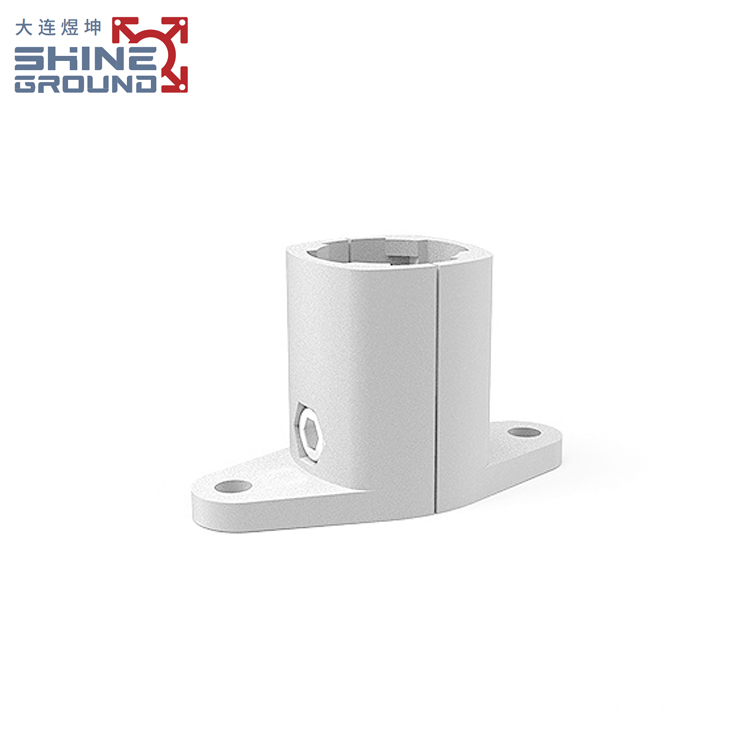

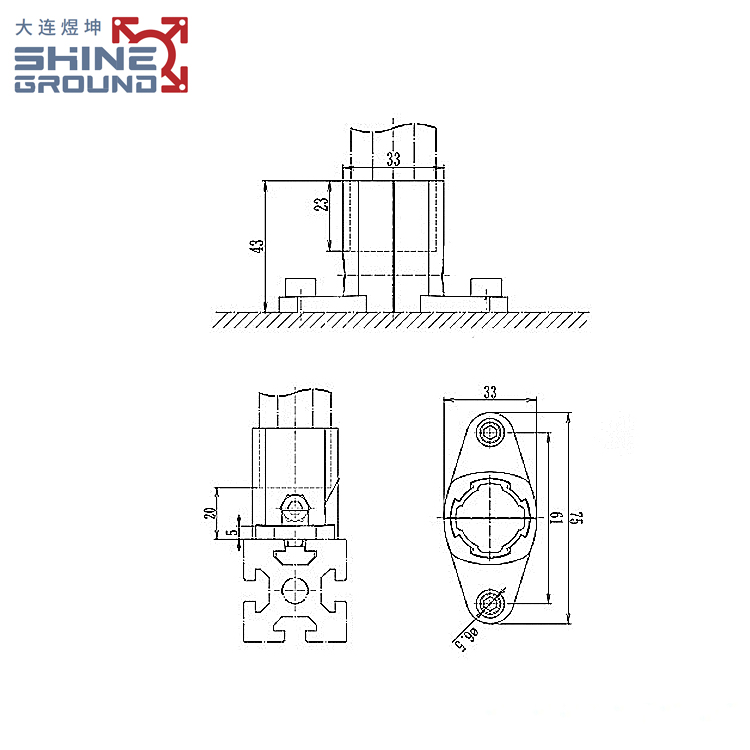

T-Connector External Clamp Base For 28mm Lean Tube

Description

This external clamp base T-connector is engineered for 28mm lean tubes, enabling quick and rigid T-junction connections in modular aluminum framing systems. Its tool-free external clamping mechanism secures tubes without internal modifications, making it ideal for constructing industrial carts, workstations, and storage racks. The durable cast aluminum alloy design ensures high load capacity and corrosion resistance for long-term use in demanding environments.

1. External Clamp Design: Tool-free assembly via a hex wrench; clamps externally to prevent tube deformation.
2. Universal Compatibility: Fits standard 28mm diameter lean tubes with 0.8–2.0mm wall thickness.
3. High Load Capacity: Supports dynamic loads up to 125kg, reinforced by robust aluminum alloy construction.
4. Corrosion-Resistant Finish: Anodized surface treatment for durability in industrial settings.
5. Modular Flexibility: Compatible with cross, parallel, and angled connectors for customizable frameworks.
6. T-Junction Stability: Creates secure 90° intersections for rigid structural connections.
