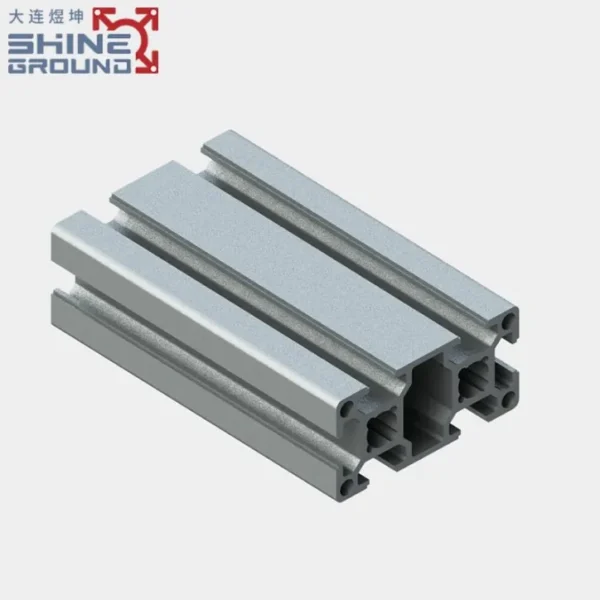

T-Slot Aluminum Extrusion Profile 30×60 with 6 Slots

30×60 T-slot aluminum profile with 6 slots for modular structural framing. Features multi-axis fastening, high strength-to-weight ratio, and precise anodized finish. Ideal for sim rig cockpits and industrial applications.

Product Information
Model NO. SGAP1107 Type Industrial Aluminium Profile
Shape Square Certification CE, ISO
Alloying Ingredient 6063 Color Sliver, Black, Customized
MOQ 1 Meter Surface Finishing Anodic Oxidation

Product Detalis

The 30×60 T-Slot Aluminum Extrusion Profile is a versatile structural component designed for modular assembly in industrial and hobbyist applications. With six continuous T-slots on multiple axes, this profile enables tool-less fastening and flexible configurations. Crafted from 6063 aluminum alloy, it combines lightweight durability with high load-bearing capacity, making it ideal for sim rig cockpits, automation systems, and custom structural frameworks.

  1. ​Multi-Axis Slots​​: Six T-slots for 360° fastening and adjustable component positioning.
  2. ​High Strength-to-Weight Ratio​​: 6063 aluminum alloy ensures rigidity while reducing overall weight.
  3. ​Corrosion Resistance​​: Anodized surface treatment for enhanced durability in demanding environments.
  4. ​Precision Engineering​​: ±0.1mm dimensional accuracy per meter for seamless assembly.
  5. ​Modular Compatibility​​: Works with standard M6/M8 hardware and connectors for rapid prototyping.
  6. ​Thermal/Electrical Insulation​​: Non-conductive and non-magnetic properties for safe applications.
  7. ​Customizable Lengths​​: Available in standard 6-meter lengths or custom-cut sizes.



Description Moment of Inertia
lx(cm4)
Moment of Inertia
ly(cm4)
Moment of Resistance
Wx(cm3)
Moment of Resistance
Wy(cm3)
Mass
(kg/m)
Part No.
 15×90 7 slots 1.4 40.4 1.9 9 1.5 RT1.11.30.015090.07
 30×30 R90 2 slots 2.5 1.6 1.2 0.9 0.8 RT1.11.30.030030.R90.02
 30×30 2 slots Type A 2.9 2.9 2 2 0.9 RT1.11.30.030030.02A
 30×30 2 slots Type B 2.8 3.2 1.9 2.1 0.9 RT1.11.30.030030.02B
 30×30 3 slots 3 2.9 2 1.9 0.9 RT1.11.30.030030.03
 30×30 4 slots Light 2.6 2.6 1.8 1.8 0.8 RT1.11.30.030030.04L
 30×30 4 slots 2.9 2.9 2 2 0.9 RT1.11.30.030030.04
 30×60 6 slots 5.3 19.9 3.5 6.7 1.6 RT1.11.30.030060.06
 30×90 8 slots 7.7 62 5.1 13.8 2.2 RT1.11.30.030090.08
 30×120 10 slots 10.1 139.9 6.7 23.3 2.9 RT1.11.30.030120.10
 60×60 8 slots 35.3 35.3 11.8 11.8 2.5 RT1.11.30.060060.08
 60×60 L 8 slots 35.2 17.6 8.5 5 2.3 RT1.11.30.060060L.08
 60×120 12 slots 74.7 252.6 24.9 42.1 4.8 RT1.11.30.060120.12
