Description

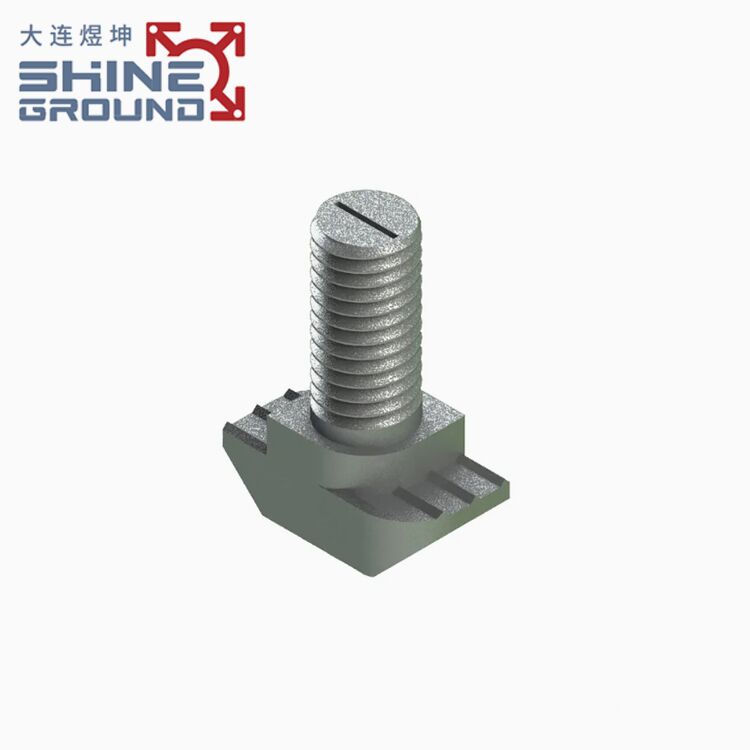

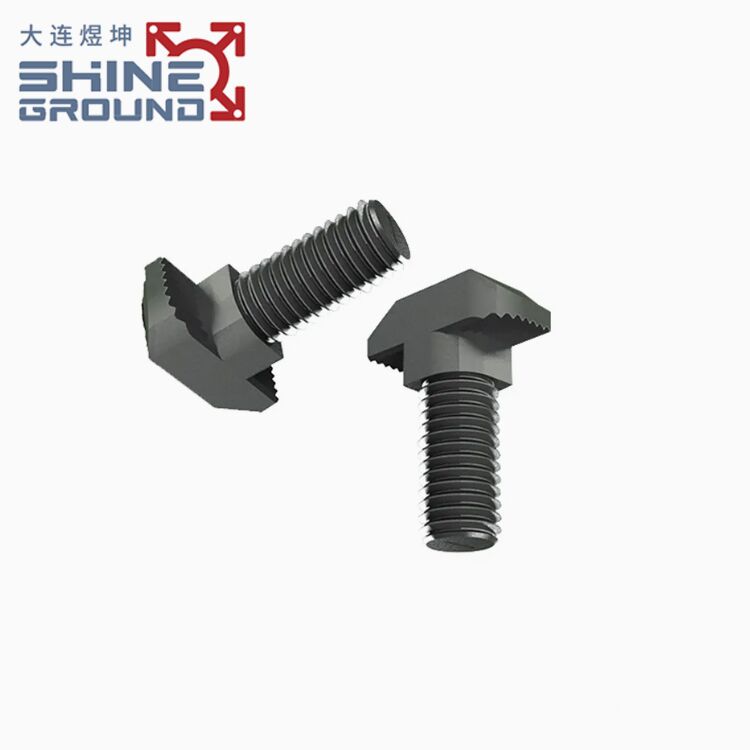

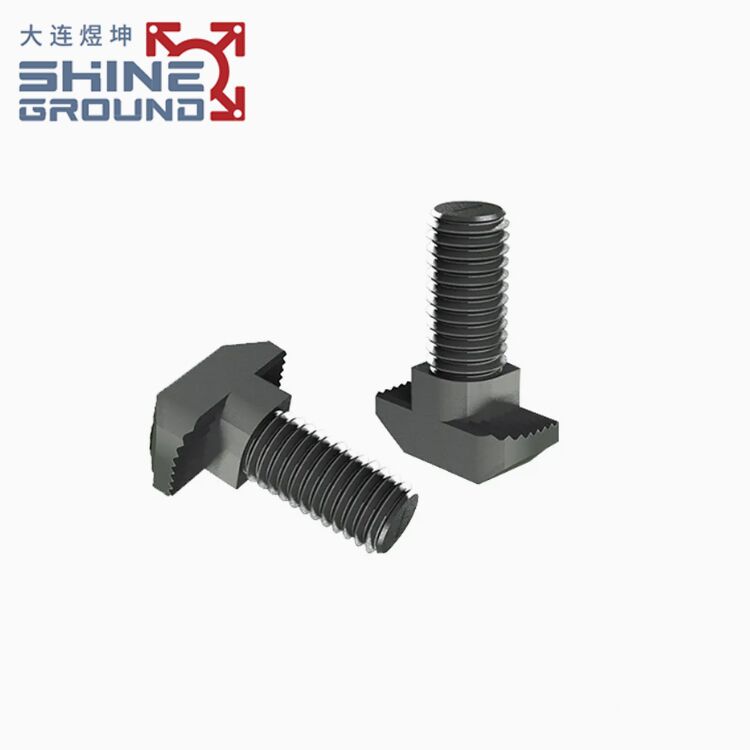

The T-Slot Bolt is a specialized fastener designed for rapid assembly in aluminum profile systems. Its unique T-shaped head allows direct insertion into T-slots from any point along the track, eliminating the need for end-to-end sliding. Compatible with flange nuts, it ensures robust and reliable connections for industrial frameworks, machinery, and structural applications.
- Effortless Installation: Insert directly into T-slots without disassembly, reducing assembly time by up to 50% compared to traditional fasteners.
- High Load Capacity: Forged from carbon steel with nickel plating, it offers tensile strength equivalent to class 8.8 bolts and resists shear forces up to 6.5kN.
- Corrosion Resistance: Nickel-plated surface withstands 500+ hours in salt spray tests, ideal for humid or industrial environments.
- Secure Locking: Interlocking “dovetail” teeth prevent rotation under vibration, maintaining joint integrity.
- Versatile Compatibility: Fits standard T-track widths (6mm, 8mm, 10mm series) and pairs with flange nuts for multi-axis adjustability.
| Name | L(mm) | Material | Mass(g/pcs) |
| T Bolt-8-16 | 16 | Nickel Plated Steel | 7 |
| T Bolt-8-20 | 20 | Nickel Plated Steel | 8 |
| T Bolt-8-25 | 25 | Nickel Plated Steel | 9 |
| T Bolt-10-20 | 20 | Nickel Plated Steel | 13 |
| T Bolt-10-25 | 25 | Nickel Plated Steel | 15 |
| T Bolt-10-30 | 30 | Nickel Plated Steel | 17 |
