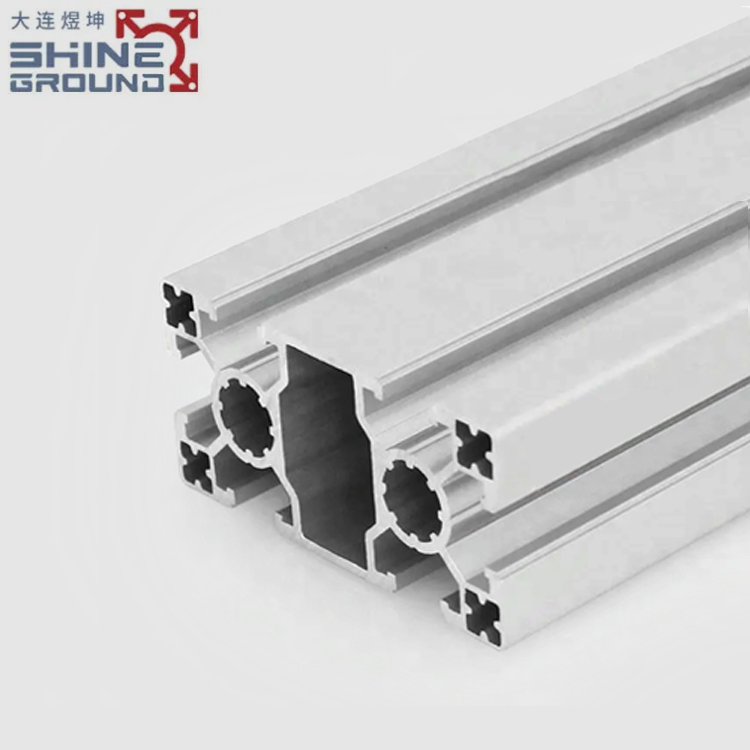

Ultra-light 40×80 aluminum profile with six T-slots, designed for lightweight industrial frameworks and modular assemblies. Features 6063-T5 alloy, anodized finish, and M8 compatibility.
| Product Information | |||
| Model NO. | SGAP0603 | Type | Industrial Aluminium Profile |
| Shape | Square | Certification | CE, ISO |
| Alloying Ingredient | 6063 | Color | Sliver, Black, Customized |
| MOQ | 1 Meter | Surface Finishing | Anodic Oxidation |

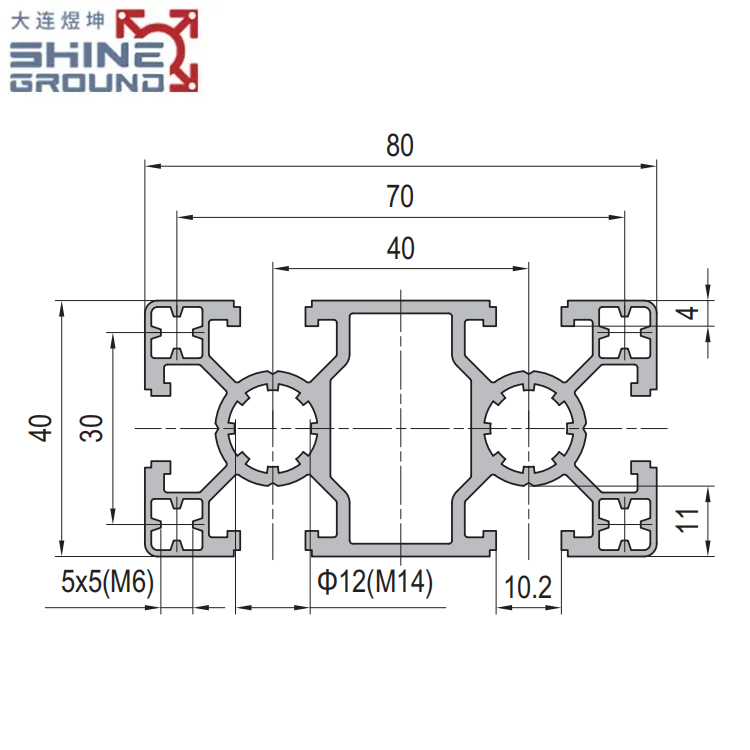

This ultra-light aluminum profile belongs to the 40 series, featuring a compact 40mm x 80mm cross-section and six integrated T-slots. Designed for applications requiring minimal weight without compromising structural integrity, it is ideal for lightweight frameworks, modular workstations, and automation equipment. The profile enables quick assembly using standard connectors, reducing installation time and enhancing versatility in industrial and DIY projects.
| Description | Moment of Inertia lx(cm4) |
Moment of Inertia ly(cm4) |
Moment of Resistance Wx(cm3) |
Moment of Resistance Wy(cm3) |
Mass (kg/m) |
Part No. |
| Strut Profile PG40 40×40 R90 2 slots | 8.3 | 8.3 | 3 | 1.9 | 1.3 | RT1.11.40.040040.R90.02 |
| Strut Profile P40 40×40 1 slots | 10.4 | 10.4 | 5.2 | 5 | 1.7 | RT1.11.40.040040.01 |
| Strut Profile PG40 40×40 2 slots Type A | 9.6 | 9.6 | 4.5 | 4.5 | 1.5 | RT1.11.40.040040.02A |
| Strut Profile PG40 40×40 2 slots Type B | 9.6 | 8.6 | 4.8 | 4.3 | 1.5 | RT1.11.40.040040.02B |
| Strut Profile PG40 40×40 3 slots | 9.1 | 8.6 | 4.5 | 4.3 | 1.5 | RT1.11.40.040040.03 |
| Strut Profile PG40 40×40 4 slots Super Light | 7.3 | 7.3 | 3.6 | 3.6 | 1.3 | RT1.11.40.040040.04SL |
| Strut Profile PG40 40×40 4 slots Light | 8.6 | 8.6 | 4.3 | 4.3 | 1.5 | RT1.11.40.040040.04L |
| Strut Profile PG40 40×40 4 slots | 9.1 | 9.1 | 4.6 | 4.6 | 1.6 | RT1.11.40.040040.04 |
| Strut Profile PG40 40×40 4 slots Heavy | 11.5 | 11.5 | 5.8 | 5.8 | 2 | RT1.11.40.040040.04H |
| Strut Profile PG40 40×60 4 slots | 13.3 | 27.6 | 6.6 | 9.2 | 2.3 | RT1.11.40.040060.04 |
| Strut Profile PG40 40×80 6 slots Super Light | 14.3 | 52 | 7.2 | 13 | 2.3 | RT1.11.40.040080.06SL |
| Strut Profile PG40 40×80 6 slots Light | 15.8 | 59.1 | 7.9 | 14.8 | 2.5 | RT1.11.40.040080.06L |
| Strut Profile PG40 40×80 6 slots | 16.6 | 63.2 | 8.3 | 15.8 | 2.7 | RT1.11.40.040080.06 |
| Strut Profile PG40 40×80 6 slots Heavy | 22.2 | 80.8 | 11.1 | 20.2 | 3.6 | RT1.11.40.040080.06H |
| Strut Profile PG40 40×120 8 slots | 24.1 | 194.9 | 12.1 | 32.5 | 3.8 | RT1.11.40.040120.08 |
| Strut Profile PG40 40×120 8 slots Heavy | 33 | 255.3 | 16.5 | 42.6 | 5.2 | RT1.11.40.040120.08H |
| Strut Profile PG40 40×160 10 slots | 31.6 | 435.7 | 15.8 | 54.5 | 4.8 | RT1.11.40.040160.10 |
| Strut Profile PG40 40×160 10 slots Heavy | 43.7 | 582.2 | 21.8 | 72.8 | 6.8 | RT1.11.40.040160.10H |
| Strut Profile PG40 80×80 8 slots | 109.9 | 109.9 | 27.5 | 27.5 | 4.2 | RT1.11.40.080080.08 |
| Strut Profile PG40 80×80 8 slots Heavy | 148.2 | 148.2 | 37.1 | 37.1 | 5.7 | RT1.11.40.080080.08H |
| Strut Profile PG40 80×80 R90 6 slots | 109.5 | 36.4 | 19.6 | 10.2 | 3.4 | RT1.11.40.080080.R90.06 |
| Strut Profile PG40 80×80 L 8 slots | 111.8 | 56 | 20.1 | 11.9 | 4 | RT1.11.40.080080L.08 |
| Strut Profile PG40 80×120 10 slots | 222.1 | 449.2 | 55.5 | 74.8 | 8.3 | RT1.11.40.080120.10 |
| Strut Profile PG40 80×160 12 slots | 287.5 | 975.5 | 71.9 | 121.9 | 10.4 | RT1.11.40.080160.10 |
| Strut Profile PG40 80×200 14 slots | 353.1 | 1789.8 | 88.3 | 179 | 12.3 | RT1.11.40.080200.14 |
| Strut Profile PG40 120×120 12 slots | 659.1 | 659.1 | 109.9 | 109.9 | 11.5 | RT1.11.30.120120.12 |
