Aluminum is one of the most versatile and widely used materials in modern engineering, construction, and manufacturing industries. Its lightweight, durability, and resistance to corrosion make it an ideal material for various applications. Among the numerous aluminum alloys, 6063-T5 stands out for its unique combination of properties that make it especially valuable for architectural and structural applications. This article delves into the specifics of the 6063-T5 aluminum profile, exploring its properties, benefits, and common uses.

What is 6063-T5 Aluminum?

6063 aluminum alloy is part of the 6000 series, which contains magnesium and silicon as its primary alloying elements. These elements contribute to the alloy’s excellent formability, corrosion resistance, and ability to be easily extruded. Unlike other aluminum alloys, which might prioritize strength at the expense of workability, 6063 strikes an effective balance between both, making it an ideal choice for applications where aesthetics, lightness, and moderate strength are key requirements.

The T5 temper designation refers to a specific heat treatment process. In T5 temper, the aluminum is cooled from the extrusion temperature and then artificially aged. This process improves the alloy’s strength without making it too brittle, thus allowing it to retain its formability. The T5 temper creates a fine balance between hardness and ease of use, making 6063-T5 aluminum profiles particularly suited for applications where both precision and strength are critical.

Properties of 6063-T5 Aluminum

The 6063-T5 aluminum alloy has several key properties that make it ideal for various applications. These properties are a direct result of its composition and temper treatment.

• 1. Strength-to-Weight Ratio: One of the standout features of 6063-T5 aluminum is its excellent strength-to-weight ratio. It is strong enough to provide structural support while remaining lightweight, which makes it suitable for use in applications where minimizing weight is crucial, such as in construction and transport industries.

• 2. Corrosion Resistance: Aluminum, in general, has excellent resistance to corrosion, and 6063-T5 is no exception. The presence of magnesium and silicon helps the alloy resist oxidation and degradation from environmental factors like rain, wind, and pollution. This makes 6063-T5 aluminum a popular choice for outdoor architectural elements such as window frames, curtain walls, and other building materials that need to withstand the elements.

• 3. Surface Finish: One of the reasons why 6063-T5 is favored in architectural applications is its superior surface finish. The alloy can be anodized to enhance its natural corrosion resistance and provide a smooth, aesthetically pleasing finish. This anodized layer also makes the material more resistant to wear and tear, which is beneficial in environments that demand both appearance and durability.

• 4. Weldability: The 6063-T5 alloy is highly weldable, meaning it can be easily joined with other aluminum parts or structures. This is particularly useful in construction and manufacturing, where components often need to be welded together. The alloy’s ability to maintain its strength even after welding makes it highly versatile in structural applications.

• 5. Formability: Thanks to its T5 temper, 6063 aluminum is highly workable. It can be easily extruded into various complex shapes and profiles. Its ability to be formed into intricate designs makes it a popular choice for creating frames, decorative trim, and other detailed architectural elements.

• 6. Heat Treatable: The T5 designation refers to a heat treatment process, which improves the mechanical properties of the alloy. The artificial aging process strengthens the material without making it too brittle, resulting in a material that has both strength and ductility. This temper is more robust than the annealed version of the alloy (T0), but more formable than some of the harder tempers like T6.

Common Applications of 6063-T5 Aluminum Profile

6063-T5 aluminum profiles are used in a wide range of industries, primarily because of their versatile properties. Below are some of the most common applications:

• 1. Architectural and Structural Applications: One of the most common uses of 6063-T5 aluminum profiles is in architecture. This alloy is commonly used for creating window and door frames, curtain walls, and other structural elements in buildings. Its excellent surface finish, lightweight nature, and resistance to corrosion make it the go-to material for external building facades. Additionally, its ability to be easily anodized and painted makes it an attractive choice for visible, decorative elements.

• 2. Transportation Industry: Due to its lightweight and high strength-to-weight ratio, 6063-T5 is also used in the transportation industry, particularly in creating parts for trains, boats, and buses. The alloy’s corrosion resistance makes it particularly suitable for marine environments, where exposure to water and salt can cause rapid degradation of less resistant materials.

• 3. Electrical Applications: The 6063-T5 alloy’s excellent thermal conductivity makes it suitable for use in electrical applications, such as in heat sinks and other cooling components. Its ability to dissipate heat efficiently while maintaining structural integrity makes it ideal for applications in electronics and electrical devices.

• 4. Recreational Equipment: Sports and recreation equipment, such as bicycle frames, fishing poles, and camping gear, are also often made from 6063-T5 aluminum. Its lightweight nature makes it easy to carry, while its strength ensures durability.

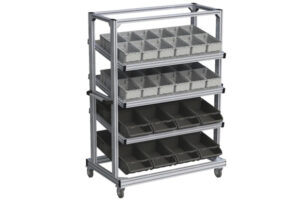

• 5. Industrial and Manufacturing Uses: In industrial settings, 6063-T5 aluminum profiles are used for constructing frames, supports, and other equipment. Its ease of extrusion allows manufacturers to create custom profiles suited to their specific needs, and the alloy’s weldability ensures that it can be easily incorporated into larger systems or structures.

Benefits of 6063-T5 Aluminum

• 1. Cost-Effective: One of the key benefits of 6063-T5 aluminum is its cost-effectiveness. Aluminum itself is more affordable than many other metals like steel, and its ability to be recycled further reduces costs. For manufacturers and builders, the durability and longevity of 6063-T5 mean fewer replacements and repairs, adding to its cost-saving benefits.

• 2. Sustainability: Aluminum is one of the most environmentally friendly materials due to its recyclability. 6063-T5 profiles can be recycled without losing any of their properties, making them an excellent choice for eco-conscious projects.

• 3. Design Flexibility: Thanks to its ability to be extruded into complex shapes, 6063-T5 offers tremendous design flexibility. Architects and engineers can create custom profiles that meet the specific demands of their projects without sacrificing performance or aesthetics.

Conclusion

6063-T5 aluminum profiles are a prime example of how an alloy can blend functionality and aesthetics. From construction to transportation, this alloy provides the perfect combination of strength, lightweight, and durability. Its ease of formability and surface finish make it ideal for architectural applications, while its resistance to corrosion ensures it can withstand the elements for years to come. For any project requiring both performance and beauty, 6063-T5 aluminum profiles offer a reliable and cost-effective solution.
