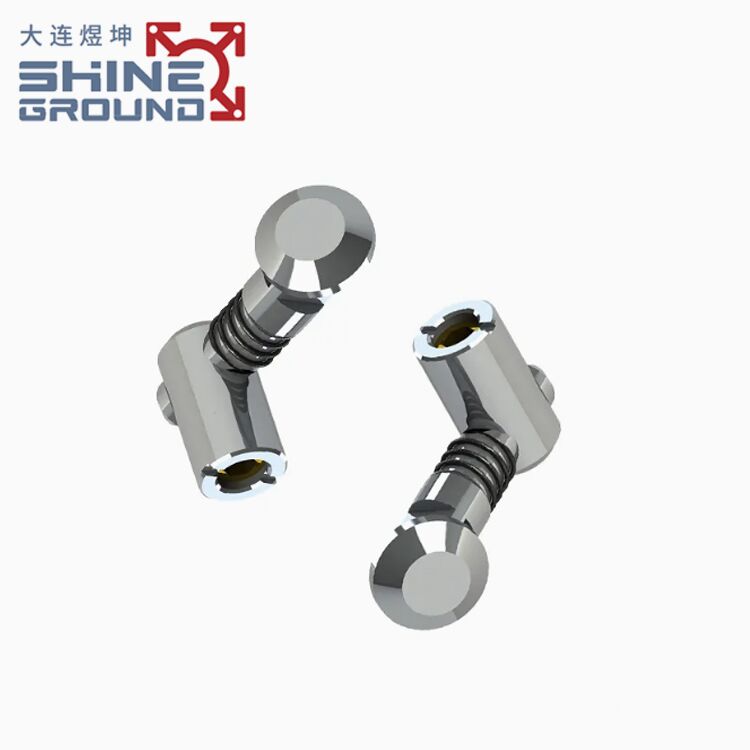

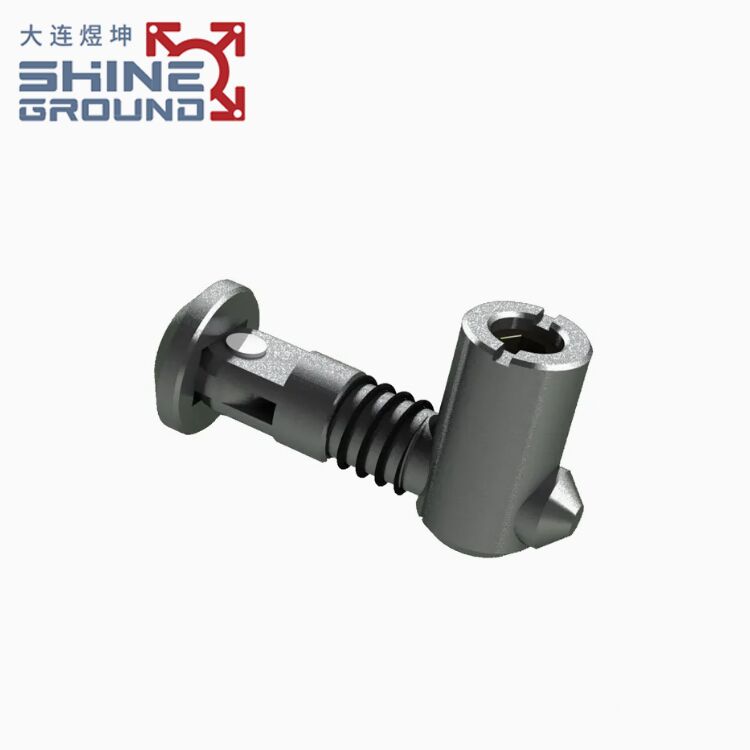

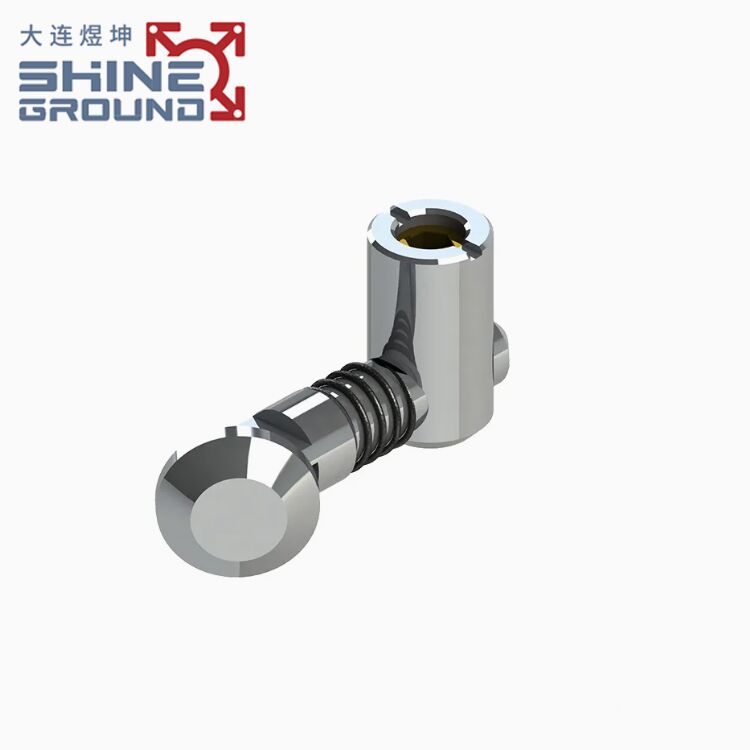

Anchor Connector – Oblique Corner Bracket (Type P)

Description

The Anchor Connector – Oblique Corner Bracket (Type P) is an internal fastening system specifically engineered for creating robust and clean oblique-angle joints in industrial aluminum T-slot profile structures. It is designed to be concealed within the profiles, providing a sleek, professional finish without visible hardware, making it ideal for applications where aesthetics and structural integrity are paramount. This connector ensures a secure and stable connection for frames requiring angles other than 90 degrees, such as 135-degree joints, and is widely used in automation, custom machinery, and display units.

1. High-Strength Material: Typically manufactured from durable zinc-plated steel or aluminum alloy, offering excellent corrosion resistance and long-term reliability in various industrial environments.
2. Hidden Fastening Design: As an internal connector, it creates a smooth, seamless appearance by hiding all fastening mechanisms inside the profile’s T-slot and central bore, enhancing the visual appeal of the final structure.
3. Oblique Angle Connection: Specifically designed for oblique angles, most commonly 45 degrees, enabling the construction of complex and versatile frame designs, such as mitered corners.
4. Enhanced Structural Stability: Provides a rigid and secure connection, contributing to the overall stability and durability of the assembled framework.
5. Profile Compatibility: Available in multiple sizes (e.g., Series 20, 30, 40, 45) to ensure a precise fit and optimal performance with corresponding aluminum profile dimensions and slot widths.
6. Simplified Assembly: Designed for relatively straightforward installation using standard tools and compatible fasteners like T-bolts and nuts, facilitating efficient construction.
