Heavy-Duty Oblique Anchor Connector – Model C (Model: SGFE2583)

Description

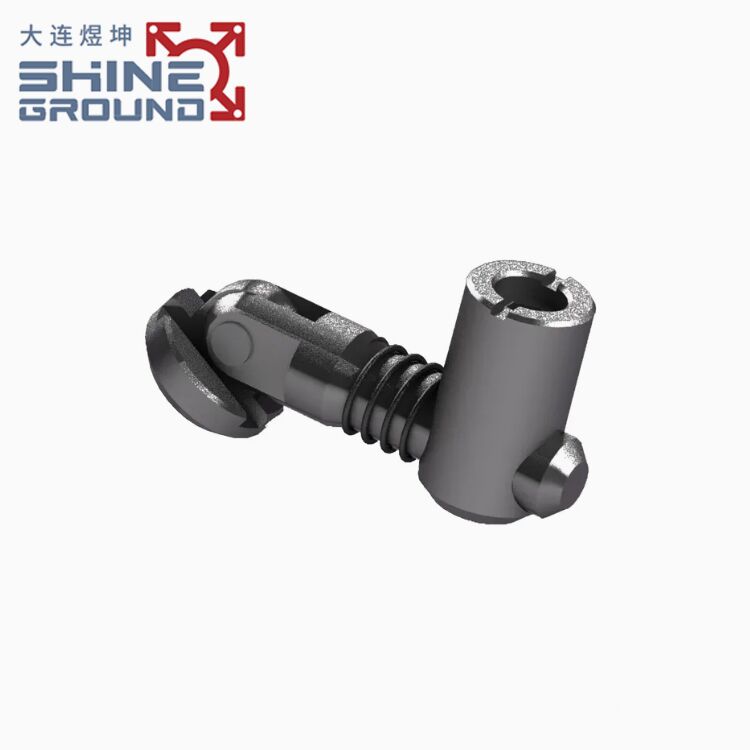

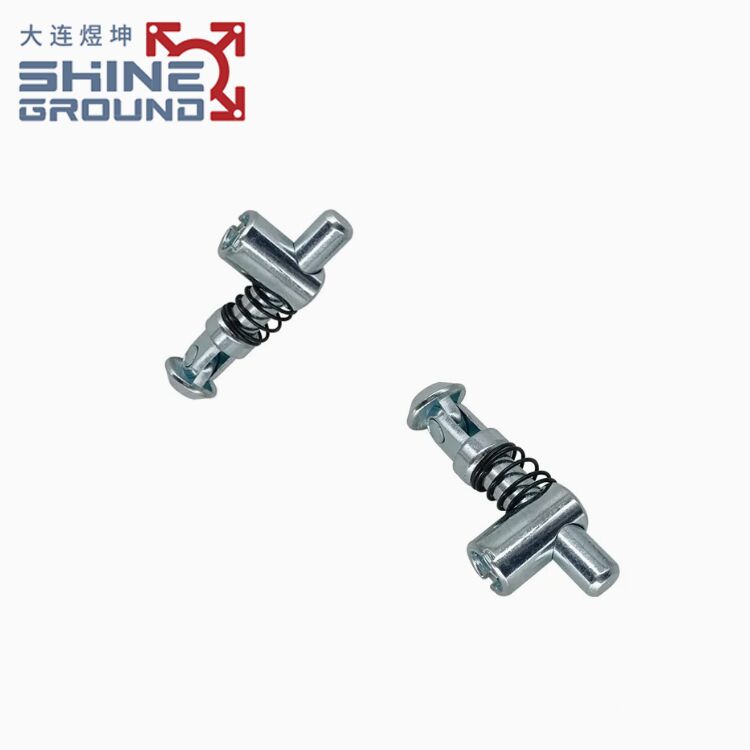

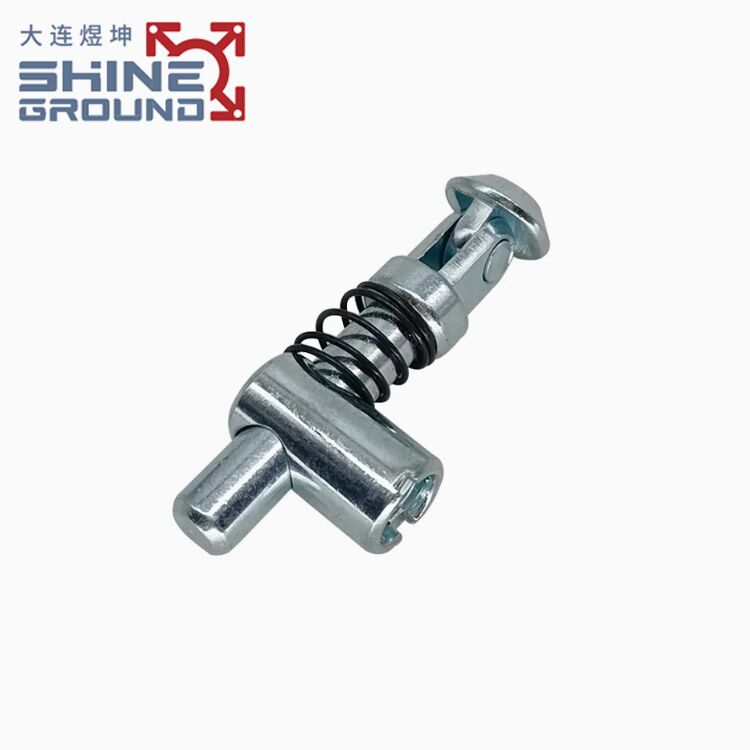

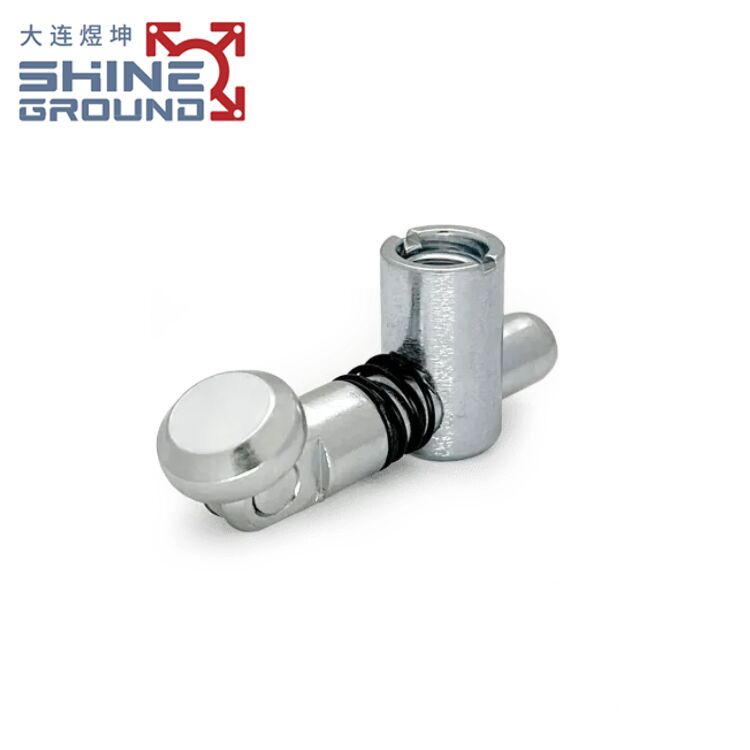

The SGFE2583 Oblique Anchor Connector (Model C) is a high-strength, internally mounted structural fastener engineered for constructing versatile and concealed multi-angle joints within 30-series, 40-series, and 45-series metric T-slot aluminum profiles. Unlike standard fixed-angle brackets, the SGFE2583 enables a massive angular assembly range from $30^\circ$ to $180^\circ$, allowing for the creation of complex sloped frameworks, heavy-duty structural bracing, and seamless linear extensions. Precision-crafted from high-strength zinc-plated steel, this connector anchors directly within the profile’s T-slot and core hole, providing a completely hidden joint that preserves the clean, professional aesthetic of the machine frame while leaving the exterior slots unobstructed for panels or accessories.

As a direct factory-sourced component, the SGFE2583 offers superior mechanical stability and resistance to industrial stress compared to cast-alloy alternatives. It is the ideal structural solution for custom automation systems, specialized equipment enclosures, and high-load architectural framing where both extreme design flexibility and structural integrity are paramount.

• Extreme Angular Versatility: Supports a continuous connection range from $30^\circ$ to $180^\circ$, making it the most adaptable internal fastener for non-standard structural geometry.

• Concealed High-Strength Anchoring: Mounts entirely within the T-slot to provide a neat, hardware-free exterior finish, essential for cleanroom and high-visibility industrial designs.

• Industrial Zinc-Plated Steel Durability: Forged from premium steel with a protective zinc coating to ensure maximum corrosion resistance and long-term reliability under heavy mechanical loads.

• Space-Efficient Profile Integration: The compact internal design maximizes available slot space for the flush-mounting of safety shielding, acrylic panels, or modular tracks.

• Simplified Installation Protocol: Slides effortlessly into European standard profiles (PG30/PG40/PG45) and locks with standard fasteners, significantly reducing technical assembly time.

Shipping & Supply Capacity

• Continuous Accessories Stock: We maintain over 2,000+ standard parts and mitered framing fasteners in perpetual stock at our production base to secure instant dispatch.

• 48-Hour Rapid Dispatch: Accelerated pallet packaging, industrial-strength bundling, and quick container loading directly out of our factory facility to meet urgent project deadlines.

• Certified Factory Tolerances: 100% precision checked to guarantee exact angular alignment and effortless slot-sliding capability across global modular machinery installations.
