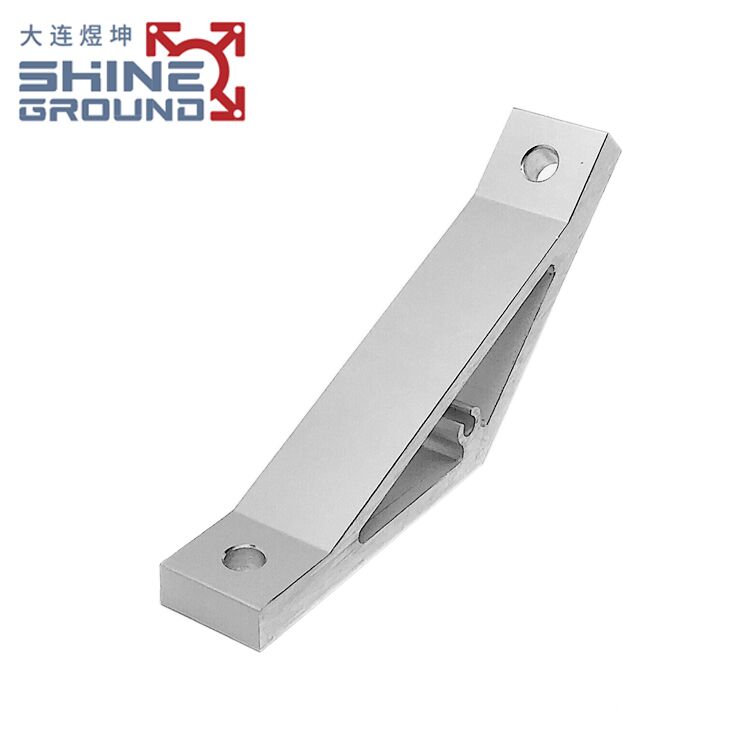

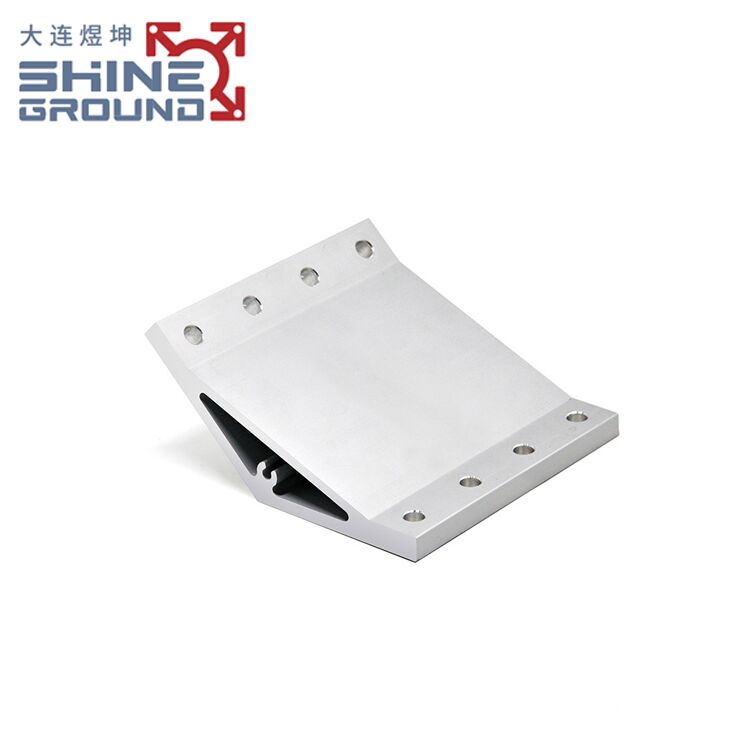

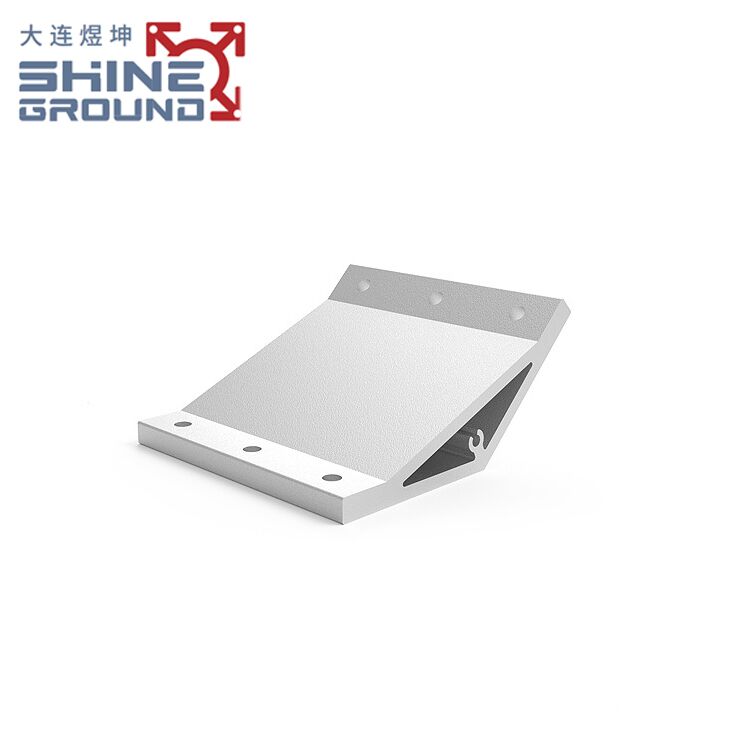

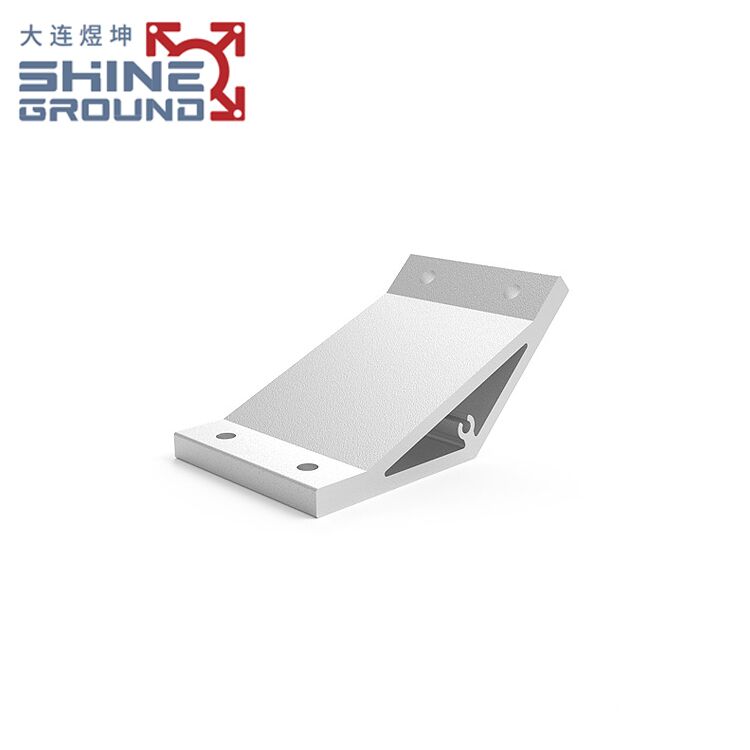

Heavy-Duty 135-Degree Aluminum Angle Bracket Connector for 70-Series Profiles (Model: SGFE2561)

Description

The SGFE2561 Universal Heavy-Duty 135-Degree Aluminum Angle Bracket Connector is a high-precision structural non-standard framing matrix engineered exclusively to establish rigid obtuse angled joints and specialized multi-axis intersections within heavy-duty 70-series metric aluminum profile networks, advanced robotics work cells, octagonal machinery enclosures, and custom industrial automation structures. Precision-extruded from a high-yield, structural-grade 6063-T5 aluminum alloy matrix, this structural corner gusset features symmetrical 70mm x 70mm parallel leg contact footprints integrated with a substantial 9mm sectional profile thickness. Compared to generic thin stamped metal plates or brittle cast alloy brackets, this heavy-duty extruded aluminum geometry delivers massive holding torque and cross-sectional stiffness, systematically neutralizing localized structural joint flexing and off-axis deflection caused by high-inertia robotic movements or asymmetric static weight loads.

Treated with a high-performance anodic oxidation hard-coat layer, the SGFE2561 secures enhanced surface hardness, long-term wear protection, and total immunity to oxidation. It serves as an indispensable standard component for elite machine builders executing complex non-orthogonal framing layouts without requiring expensive, error-prone field welding.

• Structural-Grade 6063-T5 Alloy Build: Extruded from high-tensile 6063-T5 aluminum alloy to secure an exceptional strength-to-weight ratio and lifelong mechanical joint integrity.

• Precise 135-Degree Obtuse Angle Layout: Engineered specifically for non-standard polygonal framework configurations, streamlining the construction of multi-angle guard cages and custom conveyor turns.

• Massive 9mm Extrusion Sectional Thickness: Built with an unyielding 9mm heavy-gauge wall profile to handle high structural loads and resist localized shearing deformation under heavy machinery stresses.

• Premium Anodic Oxidation Hard Finish: The commercial-grade silver anodized coating improves surface hardness, dampens material friction wear, and blocks industrial cutting oils or chemical vaporing.

• Machining-Free T-Slot Co-Alignment: Fastens instantly into standard 70-series structural tracks using universal metric fasteners like T-bolts and nuts, slashing labor overhead and assembly time lines on site.

Shipping & Supply Capacity

• Continuous Accessories Stock: We maintain over 2,000+ standard parts and framing fasteners in perpetual stock at our production base to secure instant dispatch.

• 48-Hour Rapid Dispatch: Accelerated pallet packaging, industrial-strength bundling, and quick container loading directly out of our direct factory facility.

• Certified Factory Tolerances: 100% precision checked to guarantee exact 135-degree angular squareness tolerances and effortless structural integration across global heavy engineering installations.
