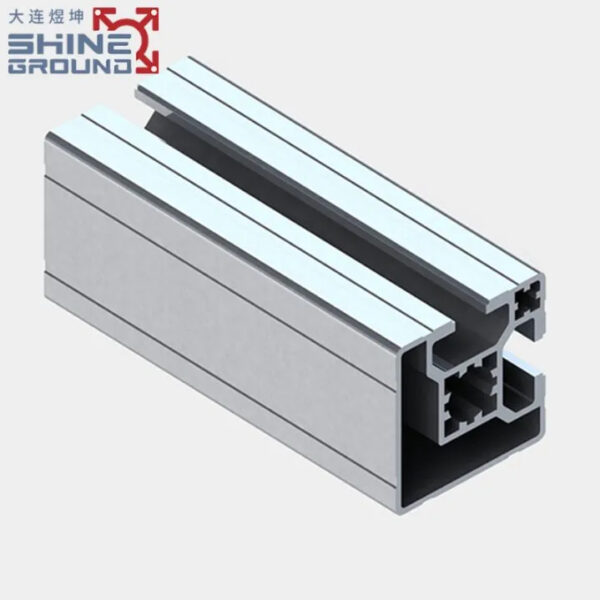

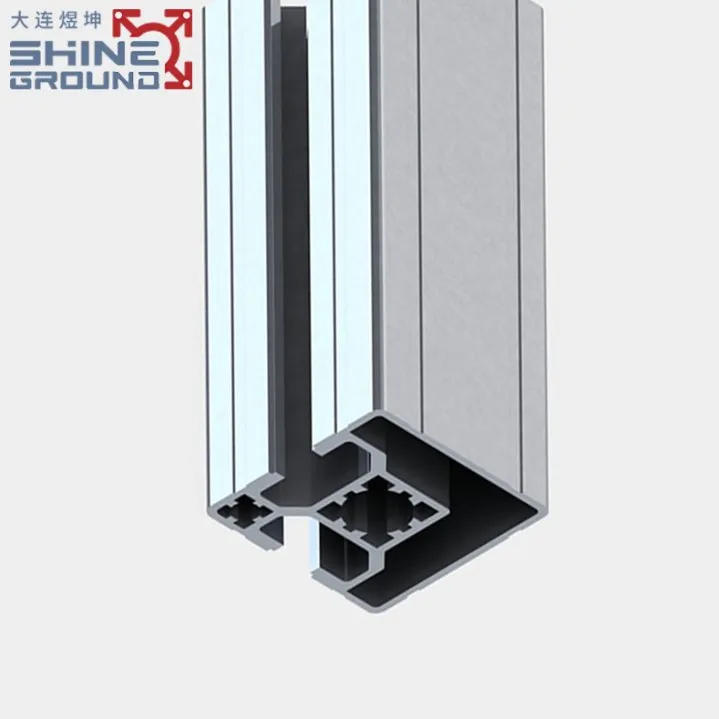

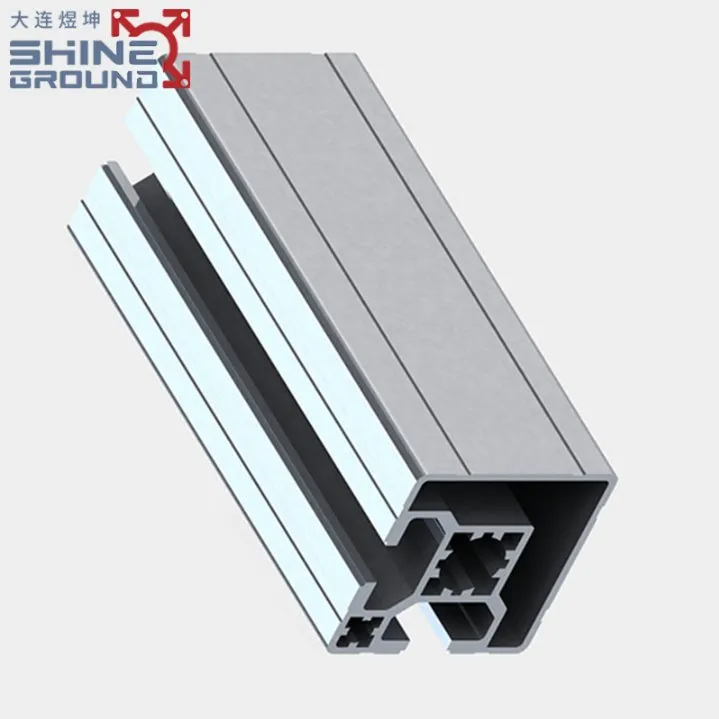

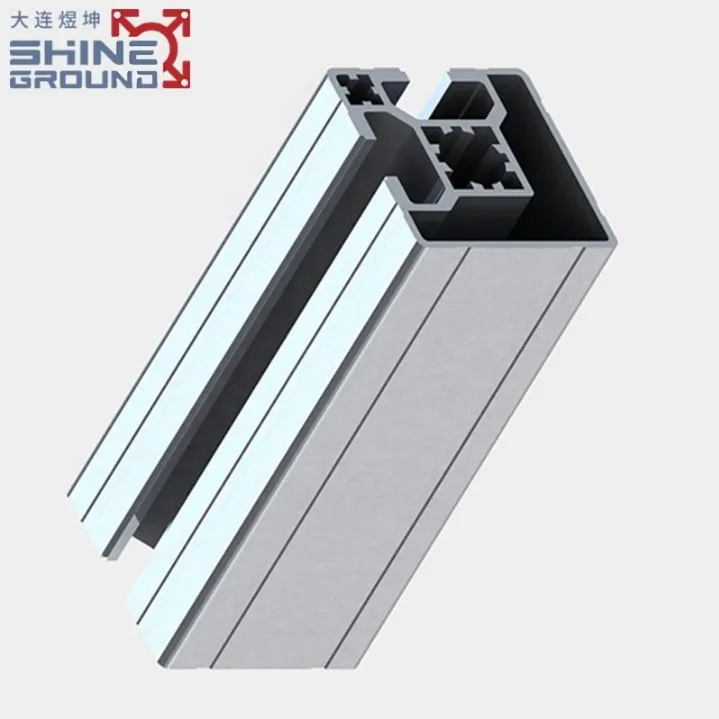

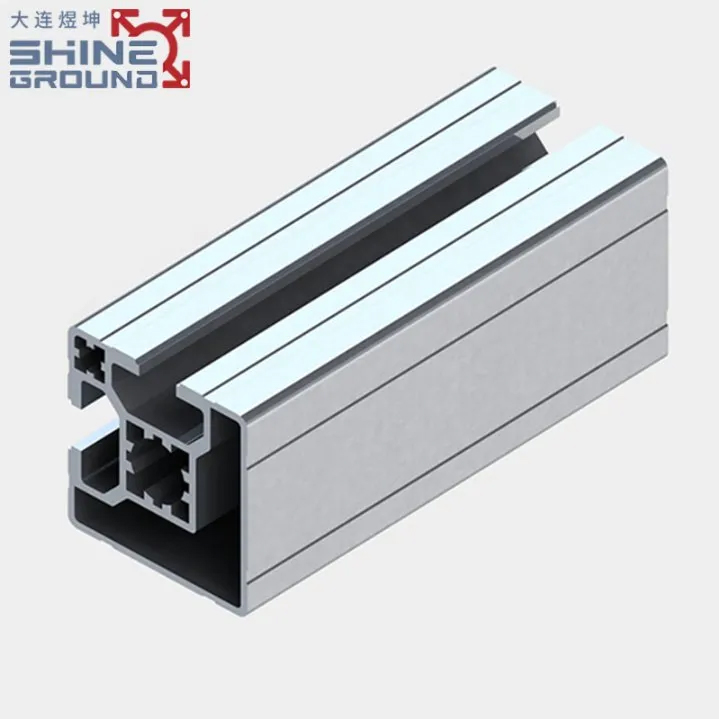

​​4040 Series Dual-Slot T-Slot Aluminum Profile (Type A)​​

​​Precision 4040 T-slot aluminum profile with dual slots for industrial framing. 6063-T5 alloy, anodized finish, ±0.05mm tolerance. Ideal for machine frames and automation.​​

Additional information

Model NO

SGAP0401

Type

Industrial Aluminium Profile

Shape

Square

Certification

CE, ISO

Alloy

6063

Color

Sliver, Black, Customized

MOQ

1 Meter

Surface Finishing

Anodic Oxidation

Product Detalis

The 4040 Series Dual-Slot T-Slot Aluminum Profile (Type A) is engineered for industrial applications demanding precision, durability, and modular flexibility. Featuring a square cross-section with two integrated T-slots, this profile enables rapid assembly of structural frameworks for machinery, automation systems, conveyor lines, and workstations. Crafted from 6063-T5 aluminum alloy and finished with anodized surface treatment, it delivers exceptional strength-to-weight performance, corrosion resistance, and long-term reliability in demanding environments.

  1. ​​Dual T-Slot Design​​: Two parallel 8.2mm-wide slots for versatile attachment of brackets, fasteners, and accessories, simplifying assembly and reconfiguration.
  2. ​​High-Strength Material​​: 6063-T5 aluminum alloy provides a tensile strength of 220 MPa and load capacity up to 100kg/m, ideal for heavy-duty applications.
  3. ​​Anodized Finish​​: Silver or black oxidation enhances wear resistance, aesthetics, and protection against corrosion.
  4. ​​Precision Engineering​​: ±0.05mm dimensional tolerance ensures seamless integration and alignment in complex structures.

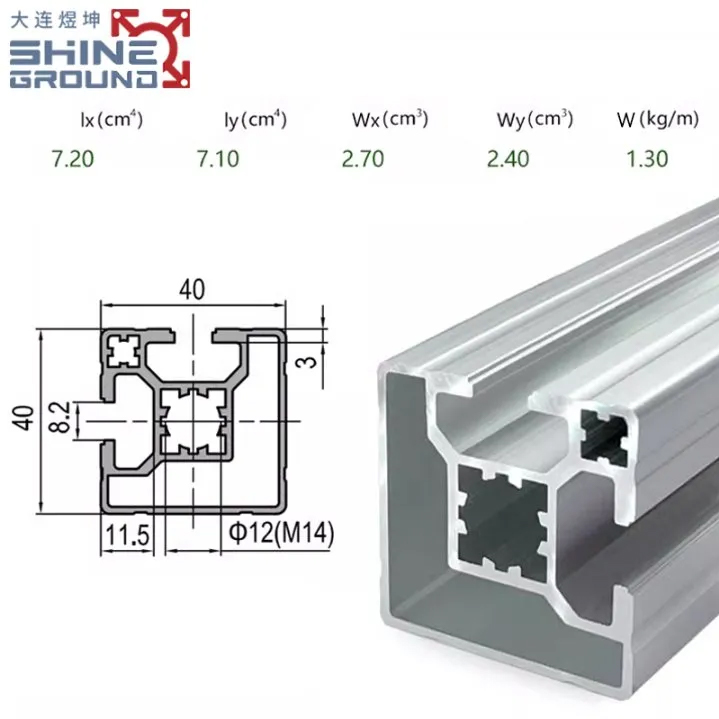

  5. ​​Optimized Structural Properties​​: Moment of inertia (7.20 cm⁴) and resistance (2.70 cm³) support stable, high-load frameworks.
  6. ​​Modular Flexibility​​: Compatible with standardized connectors (e.g., M8 screws, T-nuts) for scalable designs in industrial and automation systems.



Description Moment of Inertia
lx(cm4)
Moment of Inertia
ly(cm4)
Moment of Resistance
Wx(cm3)
Moment of Resistance
Wy(cm3)
Mass
(kg/m)
Part No.
Strut Profile 40×40 2slots Type A 7.2 7.1 2.7 2.4 1.3 40.1.040040.02.01
Strut Profile 40×40 2slots Type B 7.4 7 3.7 3.5 1.3 40.1.040040.02.02
Strut Profile 40×40 2 slots, R90 7.5 7.5 3.8 3.8 1.45 40.1.040040.02.90
Strut Profile 40×40 4 slots 8.7 8.7 4.4 4.4 1.45 40.1.040040.04.01
Strut Profile 40×40 4 slots, heavy 10.4 10.4 5.2 5.2 1.85 40.1.040040.04.02
Strut Profile 40×60 4 slots 12.8 25.9 6.4 8.8 2.15 40.1.040080.04.01
Strut Profile 40×80 6 slots 16 58 8 14.5 2.5 40.1.040080.06.01
Strut Profile 40×80 6 slots, heavy 18.2 71.5 9.1 17.9 3.1 40.1.040080.06.02
Strut Profile 40×120 8 slots, heavy 26 219 13 36.5 4.5 40.1.040120.08.02
40×160 10 slots Heavy 34 488.7 17 61.1 5.55 40.1.040180.10.02
80×80 8 slots 100.8 100.8 25.2 25.2 3.9 40.1.080080.08.01
80×80 8 slots Heavy 126.3 126.3 31.8 31.8 5.1 40.1.080080.08.02
