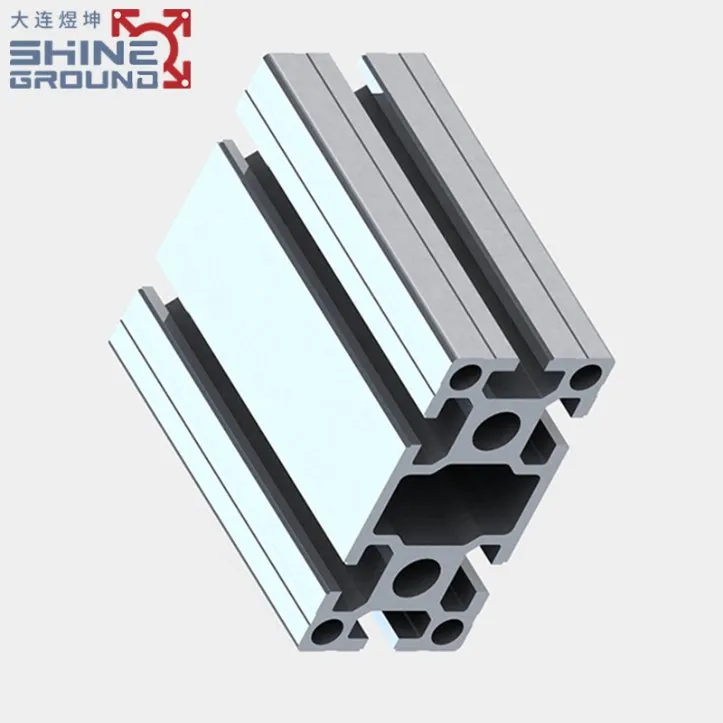

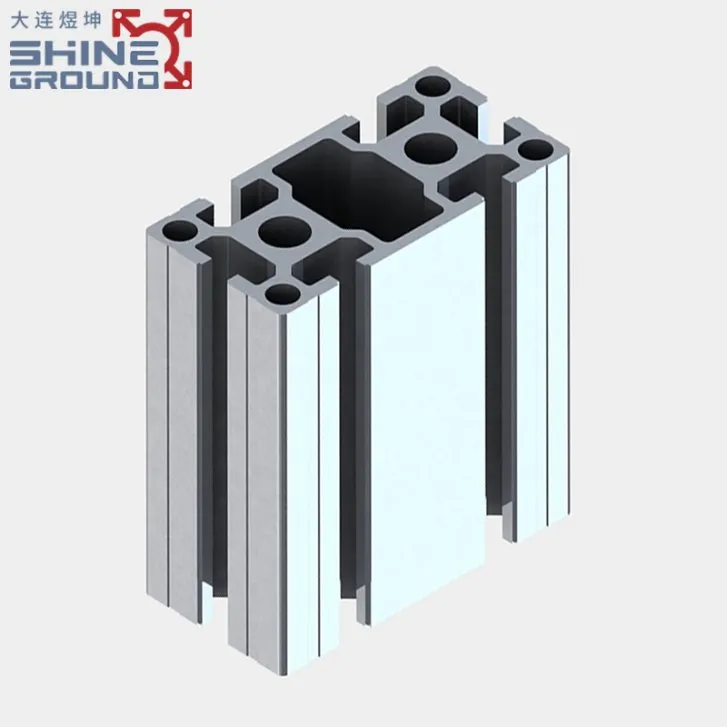

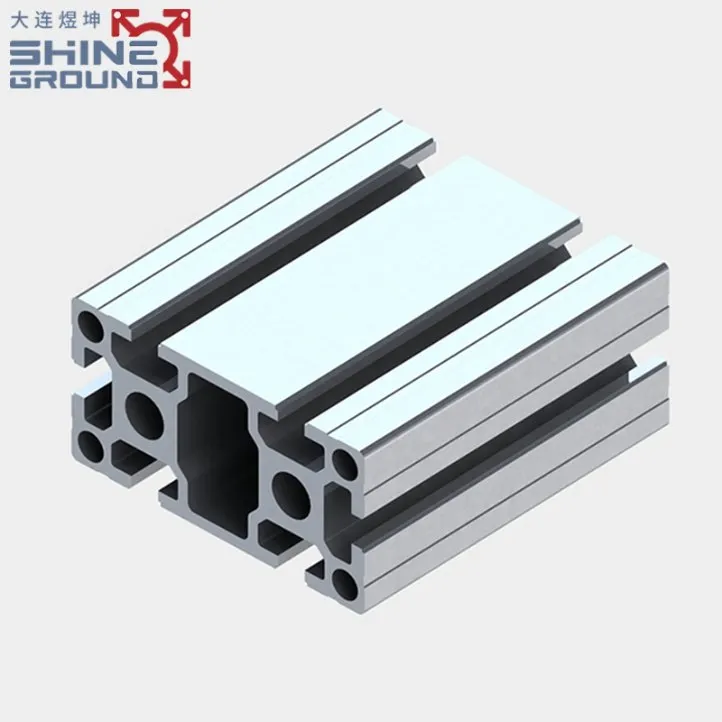

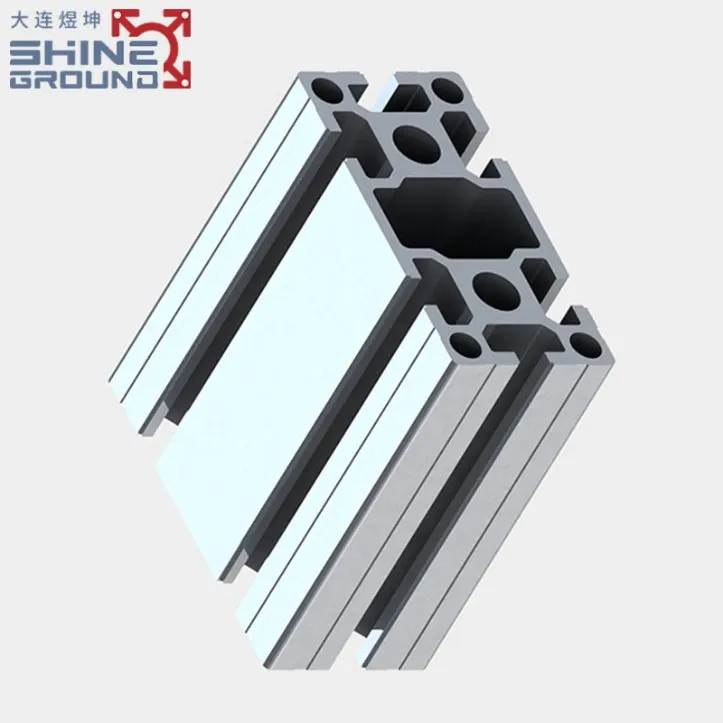

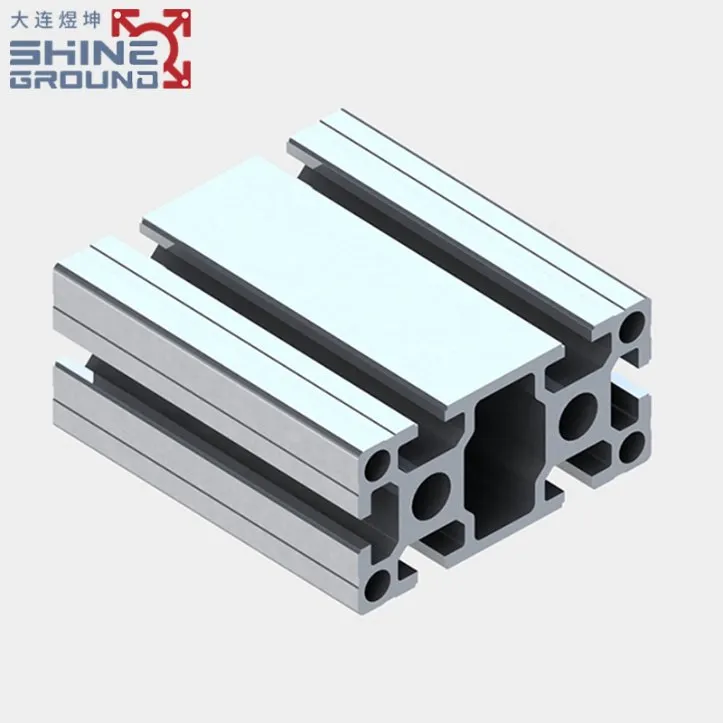

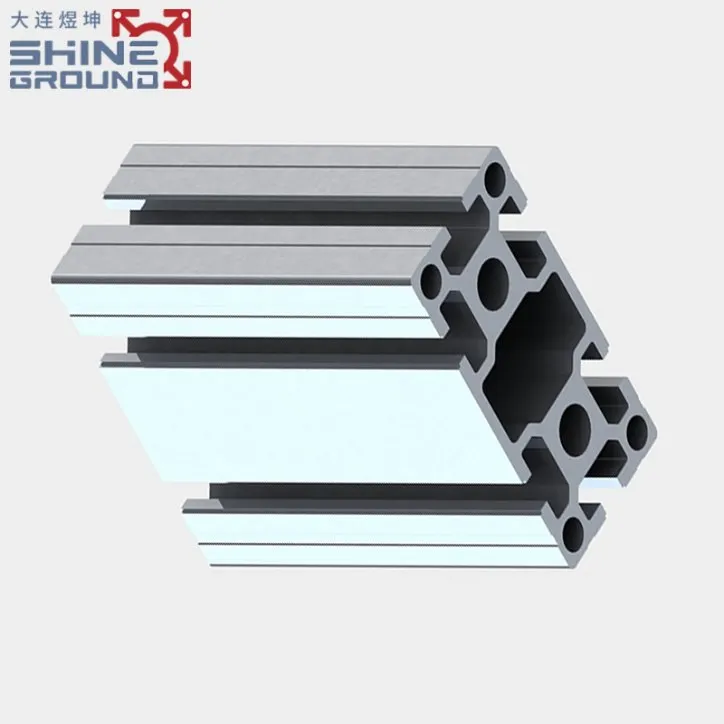

45×90 Aluminum T Track Extrusion Profile 6 Slots

Description

The 45×90 Aluminum T-Track Extrusion Profile is a premium, heavy-duty modular framing component engineered for robust industrial applications. Featuring a versatile design with six integrated T-slots, it provides exceptional multi-directional fastening capabilities, making it an ideal solution for constructing sturdy frames, machines, workstations, and enclosures. Crafted from high-strength aluminum alloy, it offers an outstanding strength-to-weight ratio, ensuring long-lasting durability and reliability in demanding environments.

1. High Strength & Durability:​ The profile is manufactured from high-quality aluminum alloy, providing excellent structural rigidity and a high load-bearing capacity for heavy-duty projects. It is naturally corrosion-resistant and often features an anodized finish for enhanced protection and a clean, professional look.

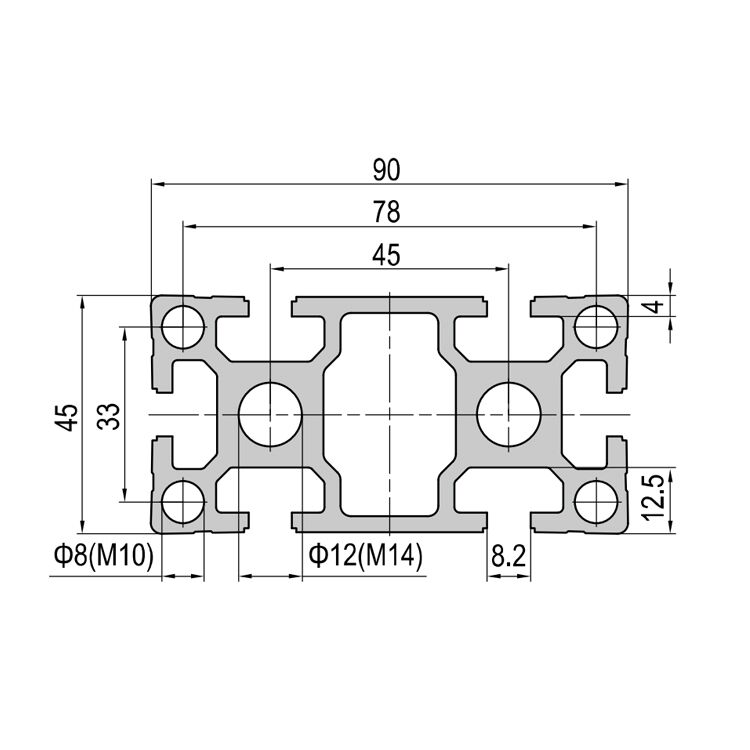

2. Versatile 6-Slot Design:​ With two T-slots on each 90mm face and one on each 45mm face, this profile allows for flexible assembly and easy component attachment from all sides, maximizing design and mounting possibilities.
3. Modular & Easy Assembly:​ The T-slot design enables tool-free, rapid assembly and reconfiguration using standard T-nuts, bolts, and connectors. This modularity simplifies construction, modifications, and maintenance, eliminating the need for welding.
4. Lightweight & Efficient:​ Despite its strength, the aluminum construction keeps the profile lightweight (approx. 2.84 kg/m), facilitating easier handling, transport, and installation while reducing the overall weight of the final structure.
