Description

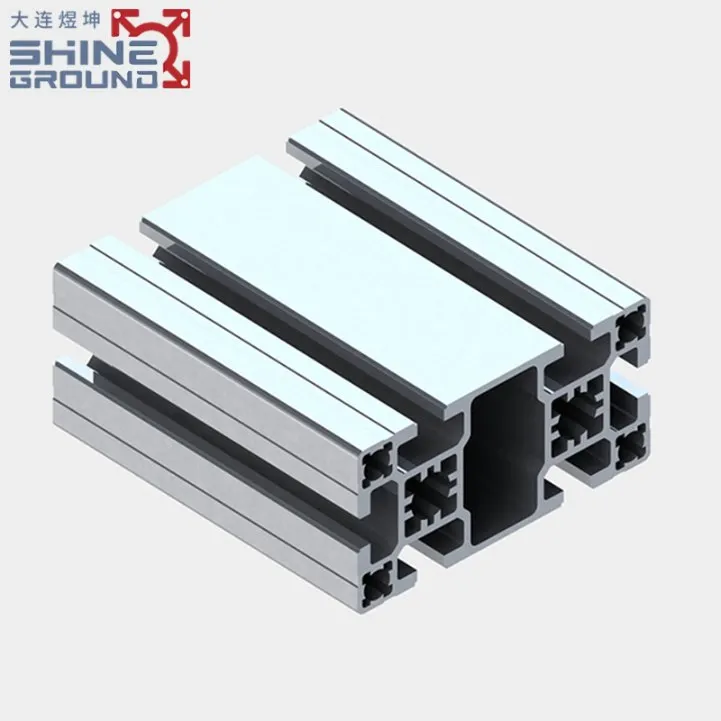

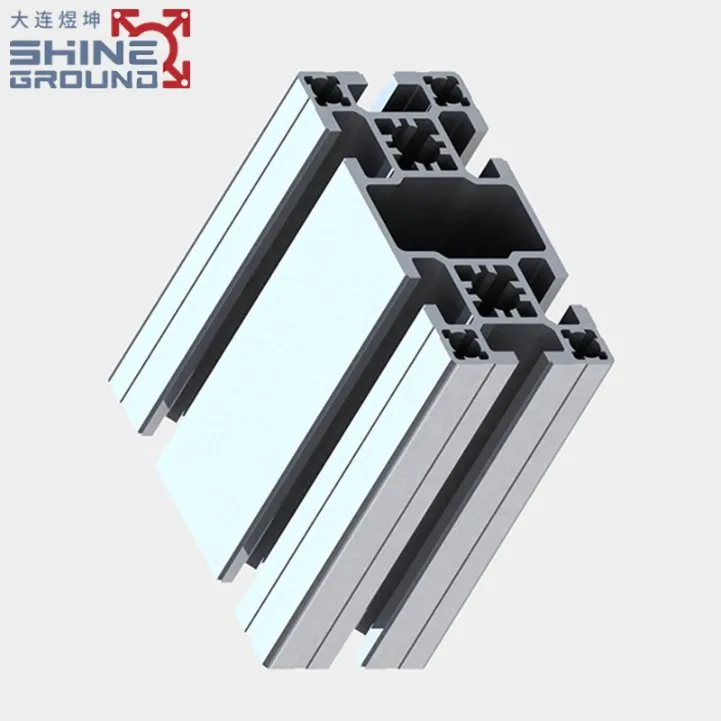

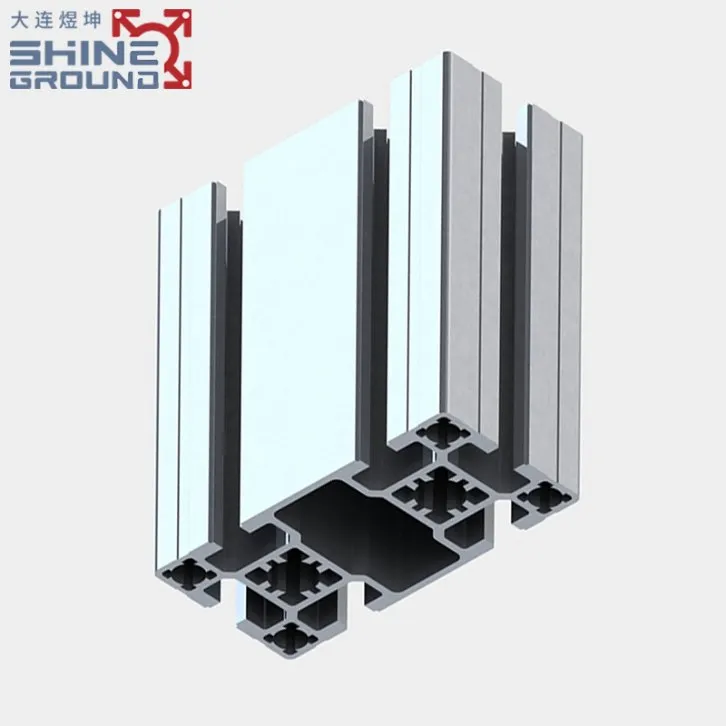

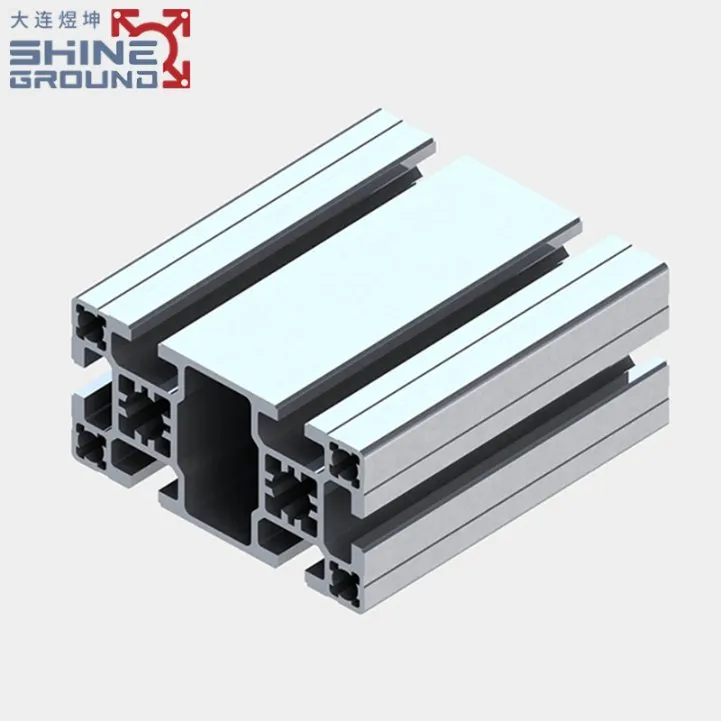

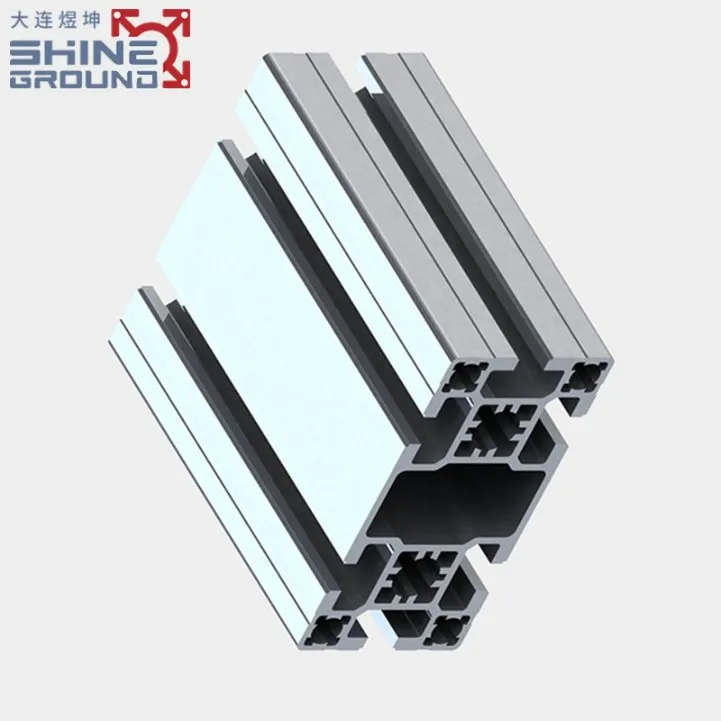

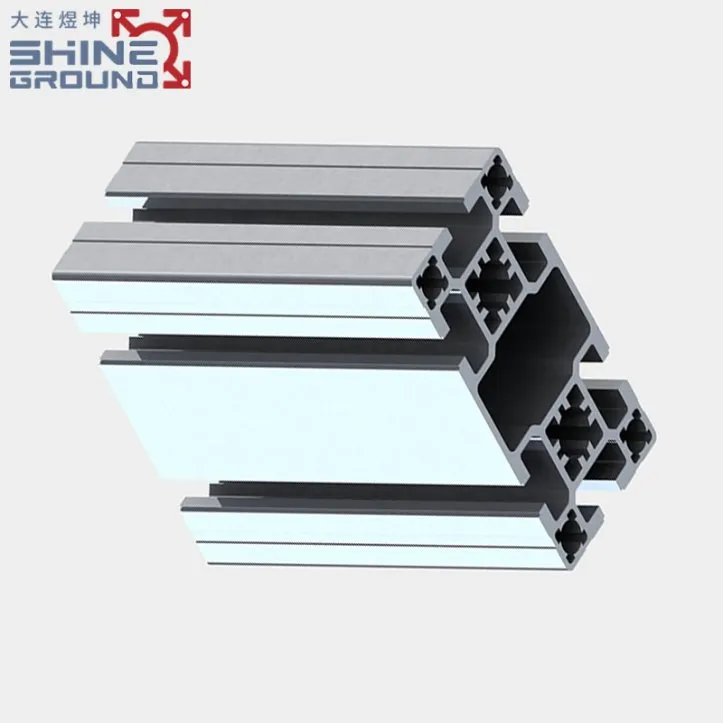

The 45×90 T-Slot Aluminum Profile is a heavy-duty structural extrusion designed for demanding industrial applications. Featuring six integrated T-slots, this profile offers exceptional strength and rigidity while providing versatile modular assembly capabilities. Its large cross-section is ideal for constructing robust frames, machinery bases, workstations, and safety guarding systems where high load-bearing capacity and stability are paramount.

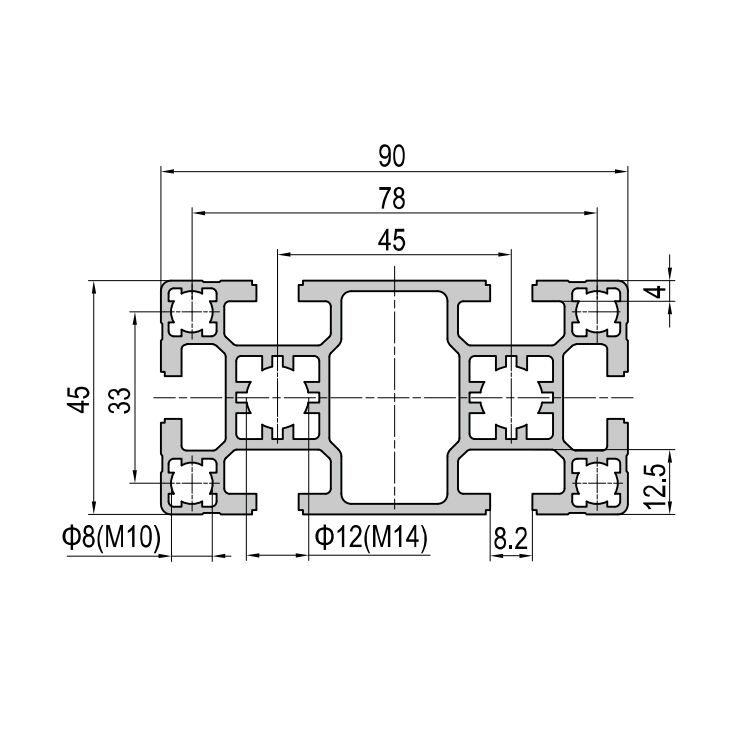

- Dimensions: 45mm x 90mm cross-section.
- Slots: Six integrated T-slots for maximum component mounting flexibility and connection strength.
- Material: Manufactured from high-strength 6000 series aluminum alloy.
- Strength & Rigidity: High moment of inertia (lx: 26.00 cm⁴, ly: 98.30 cm⁴) and moment of resistance (Wx: 11.60 cm³, Wy: 21.90 cm³) provide excellent structural integrity under load.
- Weight: 3.25 kg/m – Offers a favorable strength-to-weight ratio.
- Surface Finish: Standard anodized surface for enhanced corrosion resistance and durability.
- Functionality: Enables quick, tool-less assembly and reconfiguration using standard T-slot nuts and fasteners. Ideal for building large frames, automation equipment, conveyors, heavy workbenches, and protective barriers.
- Heavy-Duty: Designed for applications requiring superior structural performance compared to smaller profiles.
