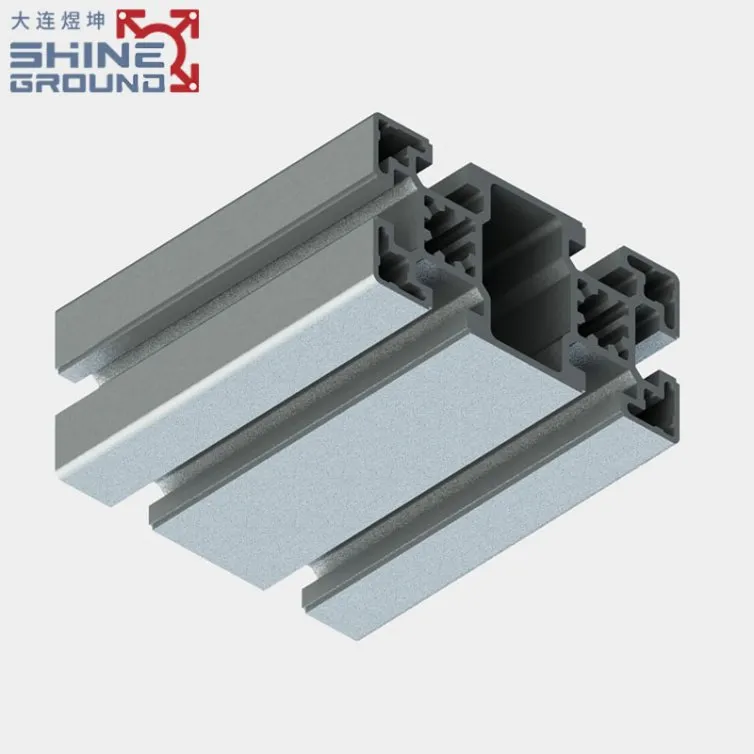

​​45x90mm 6-Slot T-Slot Aluminum Profile​​

​​45x90mm 6-Slot T-Slot Aluminum Profile​​
​​45x90mm 6-Slot T-Slot Aluminum Profile​​
​​45x90mm 6-Slot T-Slot Aluminum Profile​​
​​45x90mm 6-Slot T-Slot Aluminum Profile​​
​​45x90mm 6-Slot T-Slot Aluminum Profile​​
​​45x90mm 6-Slot T-Slot Aluminum Profile​​
​​45x90mm 6-Slot T-Slot Aluminum Profile​​
Category

45x90mm aluminum profile with 6 T-slots. High-load capacity (98.30cm⁴ ly), anodized finish. Ideal for industrial machinery, automation frames, and structural systems. 3.25kg/m.

Product Information
Model NO. SGAP1309 Type Industrial Aluminium Profile
Shape Square Certification CE, ISO
Alloying Ingredient 6063 Color Sliver, Black, Customized
MOQ 1 Meter Surface Finishing Anodic Oxidation
Ask For a Quote
Send Made In China Inquiry

Product Detalis

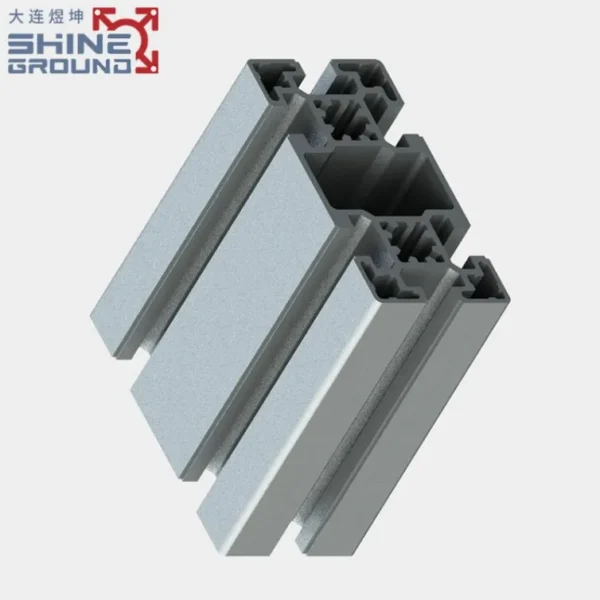

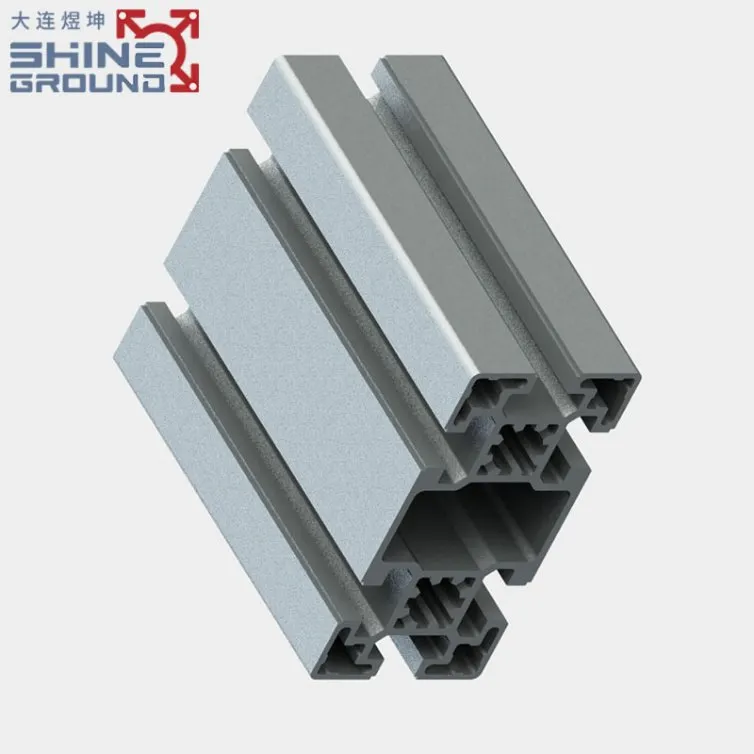

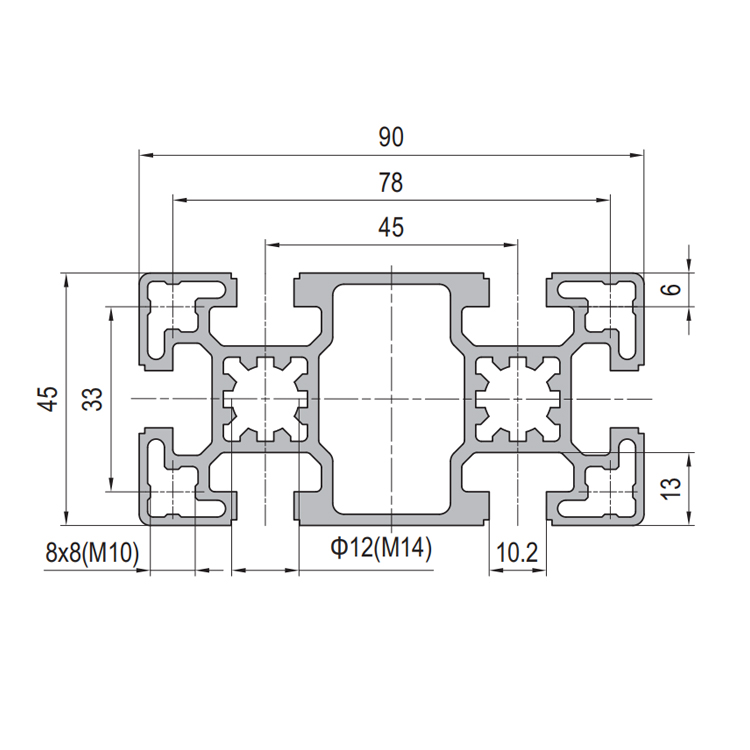

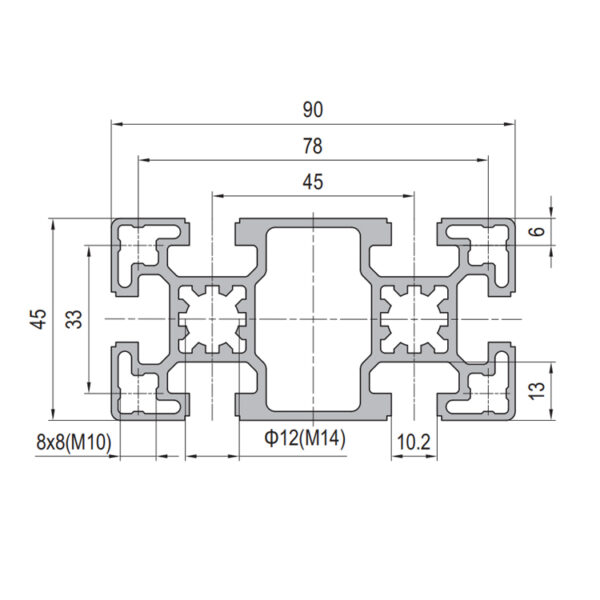

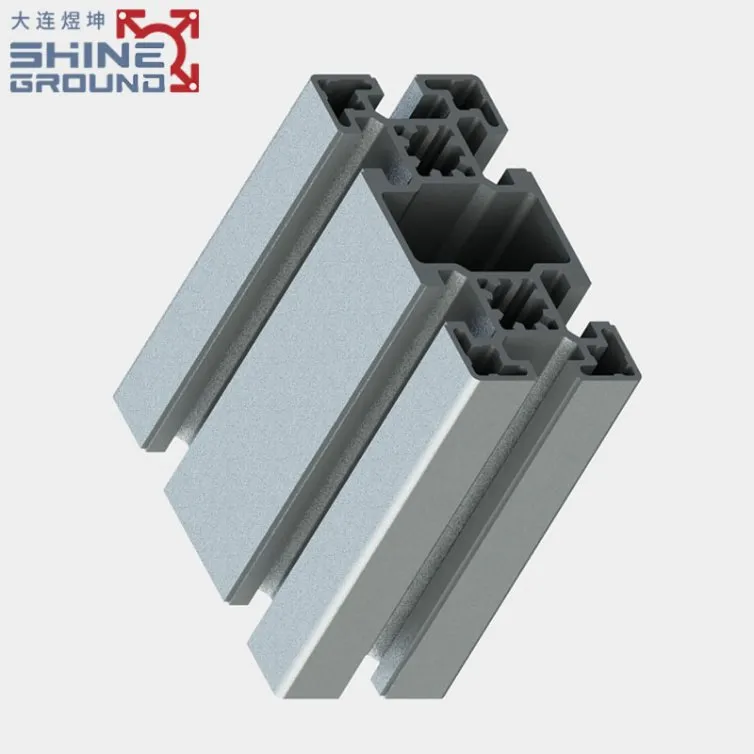

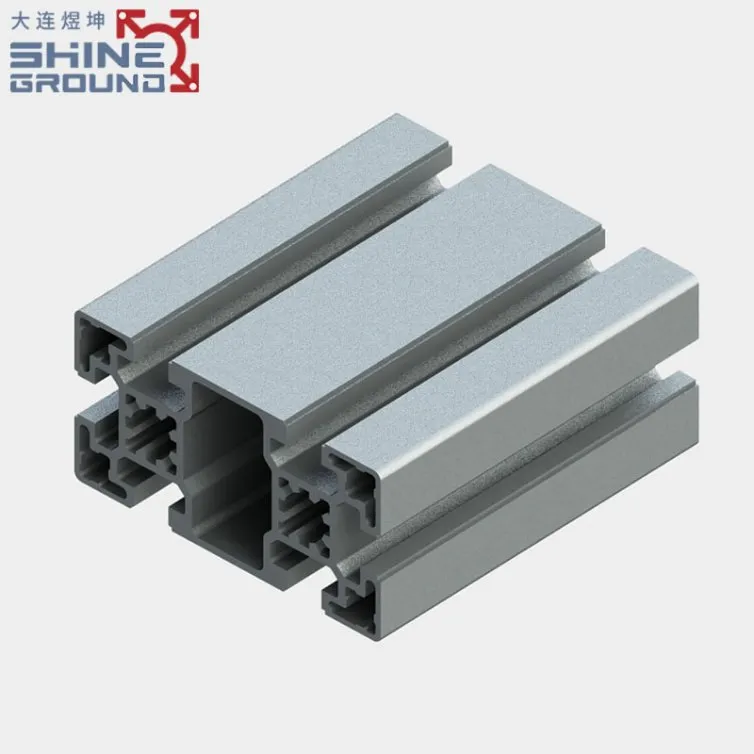

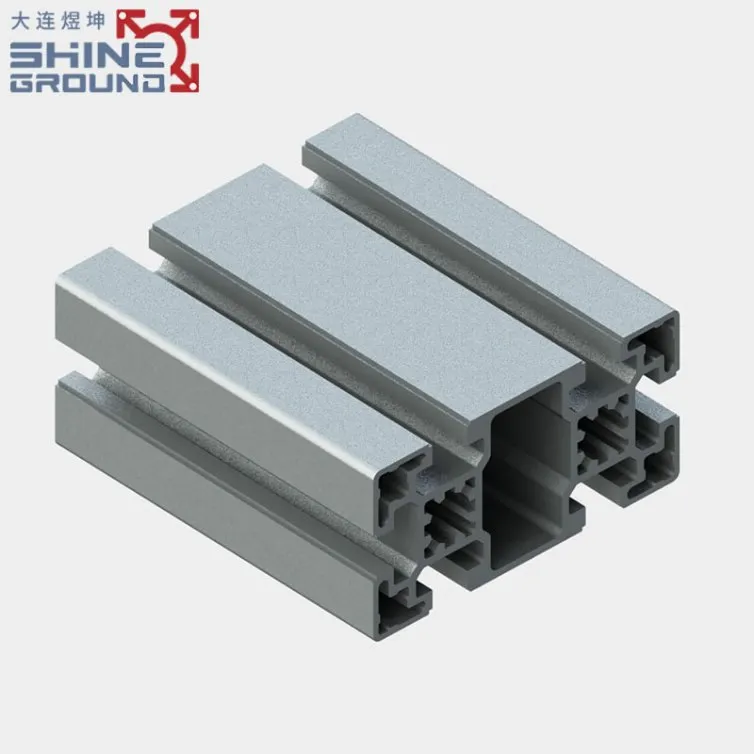

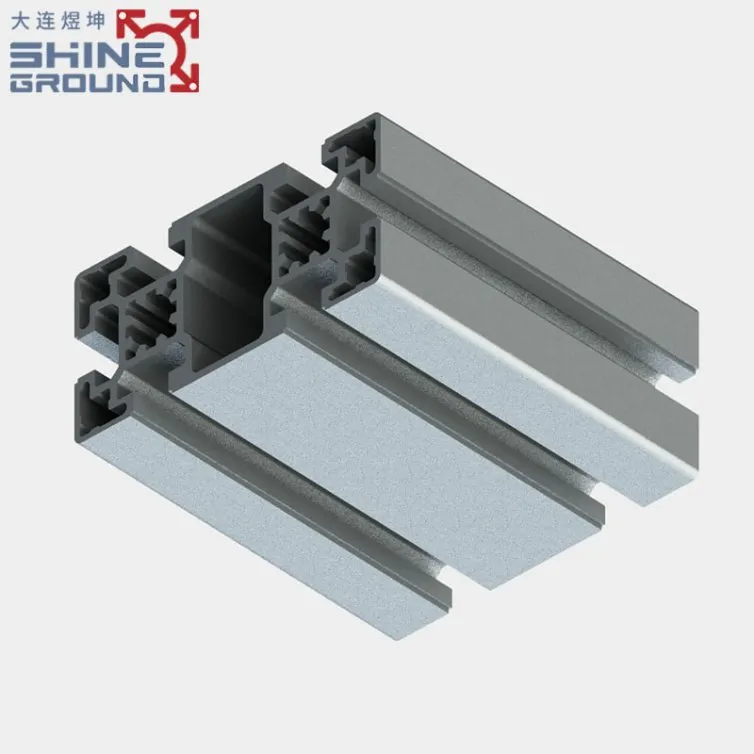

The 45x90mm 6-Slot T-Slot Aluminum Profile is engineered for heavy-load industrial applications requiring superior structural integrity. Featuring six continuous T-slots across its surface, this profile enables multi-angle fastening and modular assembly in machinery, automation systems, and large-scale framing projects.

  1. ​​Enhanced Load Capacity​​: Moment of inertia: 26.00 cm⁴ (lx)/98.30 cm⁴ (ly); Moment of resistance: 11.60 cm³ (Wx)/21.90 cm³ (Wy).
  2. ​​Six-Slot Configuration​​: Enables 360° hardware access with M6/M8 fasteners.
  3. ​​High-Strength Alloy​​: 6063-T5 aluminum for optimal strength-to-weight ratio (3.25 kg/m).
  4. ​​Precision Manufacturing​​: ±0.1mm/m dimensional tolerance with CNC-cut ends.
  5. ​​Corrosion Resistance​​: Anodized finish (silver/black/custom).
  6. ​​Multi-Directional Mounting​​: Compatible with brackets, panels, and functional accessories.
  7. ​​Thermal/Electric Insulation​​: Non-conductive and non-magnetic properties.



Description Moment of Inertia
lx(cm4)		 Moment of Inertia
ly(cm4)		 Moment of Resistance
Wx(cm3)		 Moment of Resistance
Wy(cm3)		 Mass
(kg/m)		 Part No.
Strut Profile PG45 45×45 R90 2 slots 8.4 8.4 4.3 4.3 1.5 RT1.11.45.045045.R90.02
Strut Profile PG45  45×45 2 slots Type A 12.9 12.9 5.7 5.7 1.9 RT1.11.45.045045.02A
Strut Profile PG45  45×45 2 slots Type B 13.7 12.1 6.1 5.4 1.9 RT1.11.45.045045.02B
Strut Profile PG45  45×45 3 slots 12.9 12.1 5.7 5.4 1.8 RT1.11.45.045045.03
Strut Profile PG45  45×45 4 slots  Light 10.5 10.5 4.7 4.7 1.6 RT1.11.45.045045.04L
Strut Profile PG45  45×45 4 slots 12.1 12.1 5.4 5.4 1.8 RT1.11.45.045045.04
Strut Profile PG45  45×45 4 slots Heavy 16.5 16.5 7.4 7.4 2.4 RT1.11.45.045045.04H
Strut Profile PG45  45×60 4 slots 16.2 27.8 7.2 9.3 2.4 RT1.11.45.045060.04
Strut Profile PG45  45×90 6 slots 24.2 89.3 10.8 19.9 3.2 RT1.11.45.045090.06
Strut Profile PG45  45×90 6 slots Heavy 32.5 122.2 14.5 27.2 4.4 RT1.11.45.045090.06H
Strut Profile PG45  45×180 10 slots 48.4 640.6 21.5 71.2 5.8 RT1.11.45.045180.10
Strut Profile PG45  90×90 8 slots 163.2 163.2 36.3 36.3 5 RT1.11.45.090090.08
Strut Profile PG45  90×90 8 slots Heavy 222.9 222.9 49.6 49.6 6.8 RT1.11.45.090090.08H
Strut Profile PG45  90×90 L8 slots 121.5 121.5 32 32 4.6 RT1.11.45.090090L.08
Strut Profile PG45  90×180 12 slots 454.9 1585.7 101.1 176.2 12.7 RT1.11.45.090180.12
