Universal Adjustable Aluminum Pivot Joint Connector for T-Slot Extrusions (Model: SGFE2570)

Description

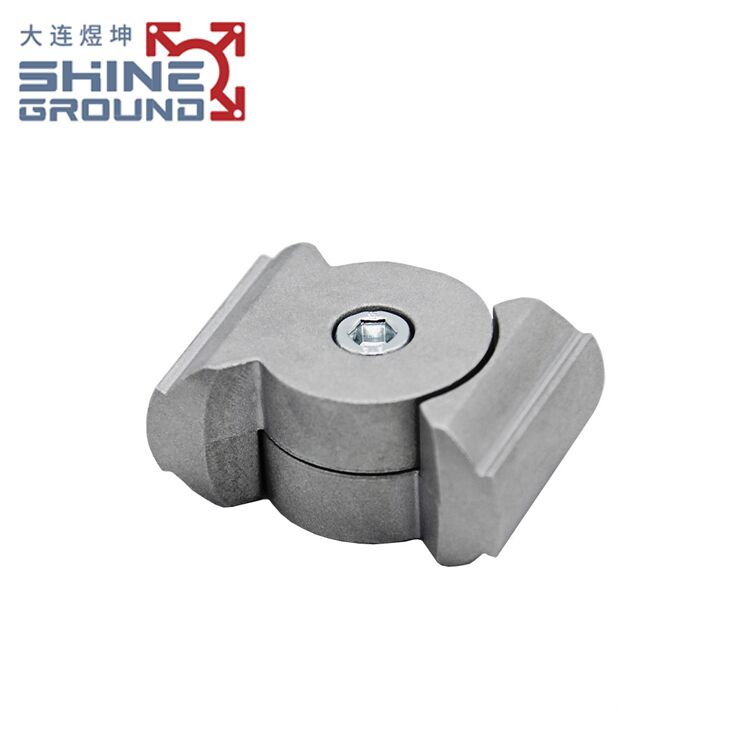

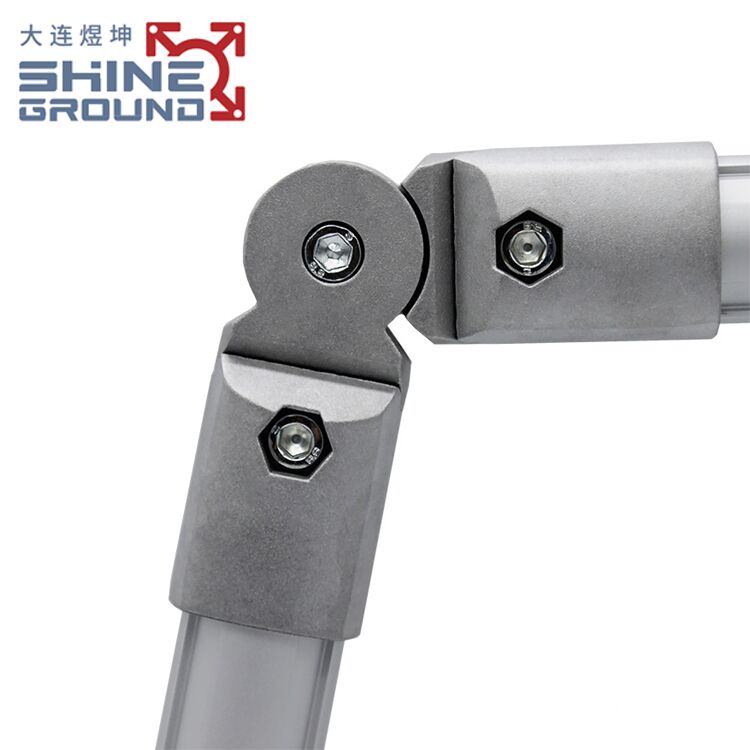

The SGFE2570 Universal Adjustable Aluminum Pivot Joint Connector is an industrial-grade structural flexible framing articulation matrix engineered exclusively to create high-torque, variable-angle link nodes and pivoting hinges within standard metric T-slot aluminum extrusion lines, modular workstations, and robotic protective cell gates. Precision-machined from a high-yield die-cast structural aluminum alloy matrix, this technical articulation joint features two interlinked parallel seating blocks combined with an integrated high-tension alignment center pin. Weighing a solid 69 grams, it replaces expensive, error-prone field welding or custom multi-axis milling operations. It allows setup technicians to establish smooth angle transitions, ergonomic sloped supply racking, tilting display monitor configurations, and dynamic swinging door partitions that maintain absolute load-bearing horizontal holding capacity.

The specialized mechanical compression design of the SGFE2570 utilizes a singular high-tensile locking hex screw system. Once driven home, it clamps the dual interlocking pivot leaves tightly together, locking out dynamic movement and preventing structural joint angular slippage under machine vibration.

• Full-Range Variable Multi-Angle Rotation: Delivers fluid angular orientation across variable degrees, enabling fast engineering field setups for bespoke polygonal machinery frameworks.

• Rapid Single Hex Bolt Locking: Secures and locks the chosen functional frame angle instantly via a singular high-torque metric fastener, minimizing structural assembly time lines on site.

• Heavy-Duty 69g Die-Cast Core Matrix: Fabricated from high-yield architectural aluminum alloy to secure excellent shear-load thresholds and permanent joint durability under cyclic rotational loads.

• Premium Anodic Oxidation Surface Polish: The high-standard silver anodized coating resists structural oxidation, surface abrasion scratches, damp industrial moisture, and airborne grease mist.

• Universal Track & Lean Piping Compatibility: Proportioned perfectly to tie standard universal metric T-slot profile rail systems and industrial modular pipe framing components together.

Shipping & Supply Capacity

• Continuous Accessories Stock: We maintain over 2,000+ standard parts and framing fasteners in perpetual stock at our production base to secure instant dispatch.

• 48-Hour Rapid Dispatch: Accelerated pallet packaging, industrial-strength bundling, and quick container loading directly out of our direct factory facility.

• Certified Factory Tolerances: 100% precision checked to guarantee exact pivot clearance tolerances and effortless manual angle calibration across global automated framing installations.
