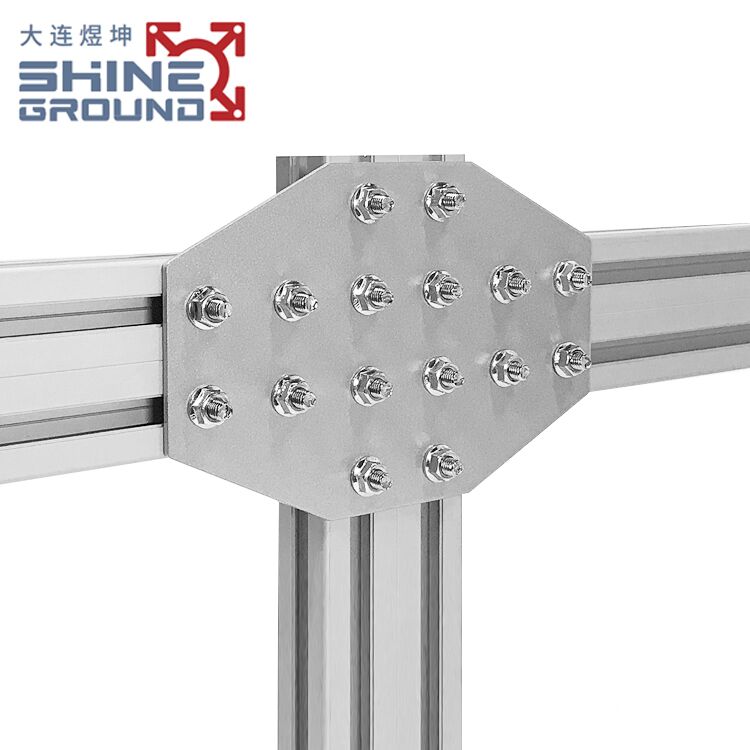

Cross Hole Structural Joining Plate

Description

The Cross Hole Structural Joining Plate is a fundamental connector engineered for building robust, multi-directional frameworks with T-slot aluminum extrusions. Crafted from high-strength aluminum alloy and featuring a clear anodized finish, this plate ensures exceptional durability and corrosion resistance. Its precision-drilled holes are designed to align perfectly with standard profile dimensions, facilitating strong, right-angled connections critical for constructing stable structures in industrial automation, machine guarding, and various DIY projects. As a core component in modular framing systems, it offers outstanding versatility and ease of assembly without the need for welding.

1. High-Strength Material: Manufactured from high-grade aluminum alloy (such as 6105-T5 or 6063-T5), ensuring a solid and durable connection .
2. Corrosion-Resistant Finish: Features a clear anodized surface that protects against rust and wear, making it suitable for diverse environments .
3. Precision Engineered Design: Comes in various hole patterns (e.g., 7-hole, 12-hole) with accurate center-to-center spacing for a perfect fit with standard T-slot extrusions (e.g., 20mm, 40mm series).
4. Robust Stability: Creates strong multi-directional joints, enhancing the overall mechanical stability of the framework for load-bearing applications .
5. Easy Installation & Reconfiguration: Designed for simple assembly using standard fasteners like screws and T-nuts, allowing for quick setup and modular adjustments without specialized tools .
