Universal Cross Joint Plate for T-Slot Aluminum Profiles

Description

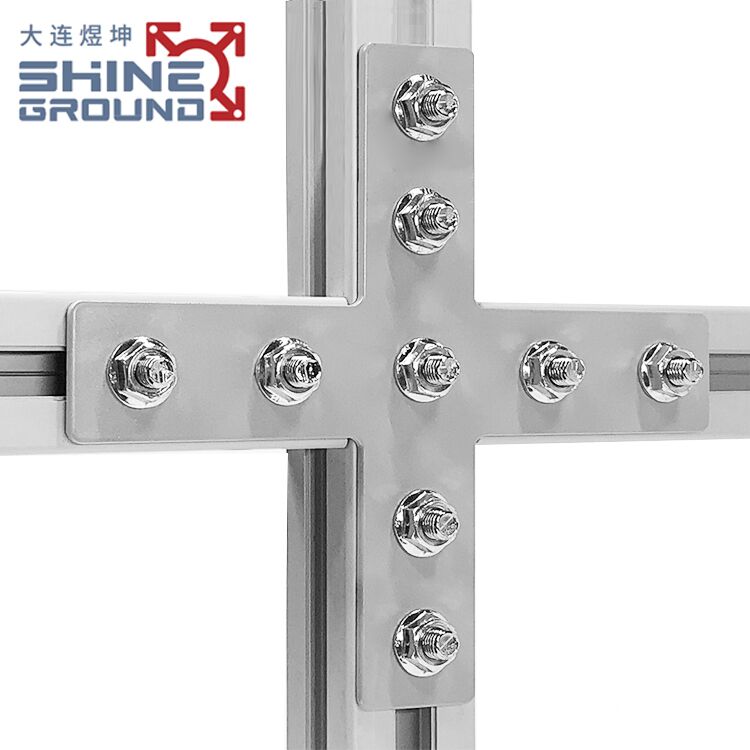

The SGFE2542 Universal Cross Joint Plate is a high-tensile flat external reinforcement gusset engineered to establish rigid, four-way multi-directional 90-degree intersections within metric T-slot and V-slot aluminum extrusion frameworks. Heavy-stamped from a commercial structural-grade carbon steel matrix and finished with a resilient, rust-proof industrial zinc plating, this flat cross-shaped plate bolts directly onto the exterior flat faces of intersecting profile modules. This heavy-duty connector allows machine builders, factory system integrators, and industrial suppliers to secure complex multi-rail intersections instantly without the time-consuming operational bottlenecks of rail end-tapping, milling, precision counterbore machining, or welding. This makes it an essential high-volume hardware component for scaling modular CNC router chassis grids, large industrial automation conveyor frameworks, multi-axis workshop framing clusters, and automated warehouse material handling grids.

By providing maximum resistance against structural torsion and linear displacement, the rigid steel footprint of the SGFE2542 distributes dynamic tension evenly across all four intersecting rails, protecting your modular assembly against node sagging and framework deformation under intense repetitive machine fatigue.

• Massive Structural Steel Rigidity: Fabricated from structural-grade steel plate to deliver extreme tensile resistance and ultimate mechanical load-bearing capacity far superior to thin aluminum plates.

• Corrosion-Resistant Industrial Zinc Coating: Treated with a heavy-duty commercial zinc plating to ensure superior scratch resistance, wear durability, and long-term chemical protection in harsh workshop climates.

• Machining-Free 4-Way Multi-Directional Connection: Mounts externally on flat profile faces using standard hex bolts and drop-in T-nuts, slashing production setup hours and enabling rapid frame modifications or complete disassembly.

• Extreme Torsion & Displacement Resistance: Restricts profile twisting and horizontal joint movement under continuous structural stress, stabilizing massive, long-span modular equipment runs.

• Universal Track Compatibility Alignment: Precision-punched multi-hole patterns ensure a flawless layout fitment across mainstream standard metric profile tracks, including 20, 30, and 40 series configurations.

Shipping & Supply Capacity

• Continuous Accessories Stock: We maintain over 2,000+ standard parts and framing fasteners in perpetual stock at our production base to secure instant dispatch.

• 48-Hour Rapid Dispatch: Accelerated pallet packaging, industrial-strength bundling, and quick container loading directly out of our direct factory facility.

• Certified Factory Tolerances: 100% precision checked to guarantee exact bolt-hole alignments and effortless track fitment across global modular structures.
