Double General Connector​​ For Lean Pipe Profile

Double General Connector​​ For Lean Pipe Profile
Double General Connector​​ For Lean Pipe Profile

Category:

Tag: , ,

Heavy-duty connector for parallel joining of two 28mm aluminum lean pipes. Features ADC-12 alloy construction, M6 screw fixation, and corrosion-resistant finish. Ideal for modular frames.

Customized services

Aluminum Factory

Spot goods

1-hour reply

Multiple Payment

Flexible Packaging

Ask For A Quote Online
Email Us
Whatsapp

Description

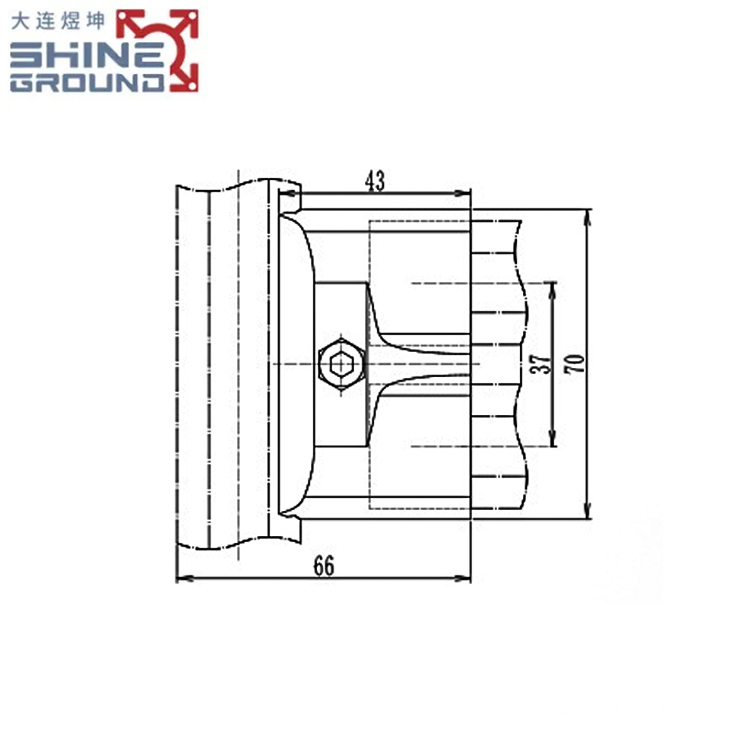

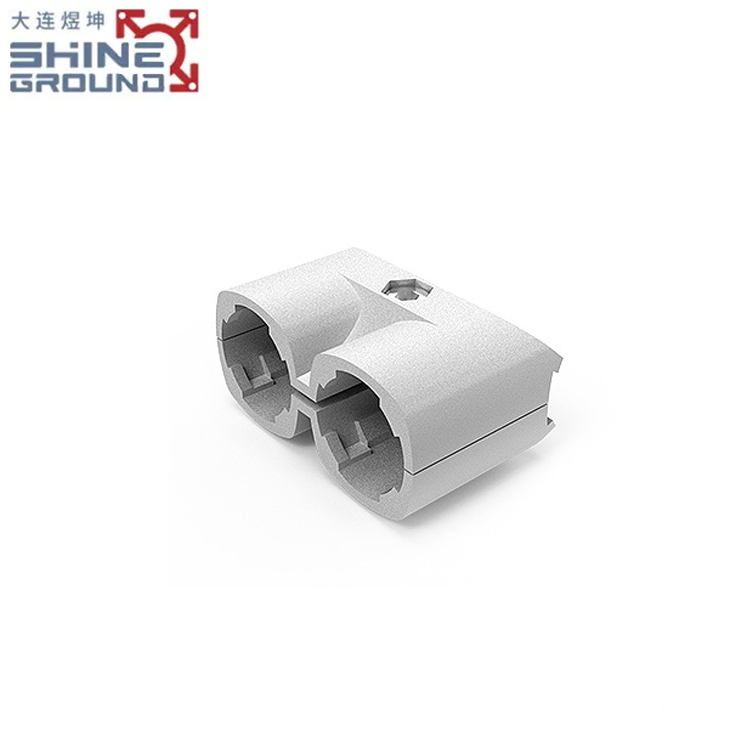

The 28mm Double Tube External Straight Connector is a heavy-duty coupling designed for parallel joining of two aluminum lean pipes in modular systems. Engineered for industrial applications such as material handling carts, assembly workstations, and storage racks, it ensures structural rigidity and load-bearing stability. Compatible with standard 28mm lean pipes, this connector simplifies the assembly of customizable frameworks while maintaining alignment and durability.

  1. ​​Dual-Pipe Fixation​​: Secures two parallel pipes with reinforced clamping, preventing lateral displacement.
  2. ​​High-Strength Material​​: Cast from ADC-12 aluminum alloy for corrosion resistance and longevity .
  3. ​​Tool-Friendly Installation​​: Uses standardized M6×25 hex screws for quick assembly/disassembly (torque: 8.8-grade) .
  4. ​​Heavy-Duty Load Capacity​​: Supports increased vertical/sliding loads compared to single-tube connectors .
  5. ​​Universal Compatibility​​: Fits 28mm-diameter lean pipes with external T-slot profiles .
  6. ​​Surface Protection​​: Zinc-plated or anodized finish resists abrasion and environmental wear .
  7. ​​Modular Flexibility​​: Enables expansions, reinforcements, and angle adjustments in lean manufacturing systems .

Additional information

Material

Aluminum Alloy
Surface

Anodic Oxidation
Weight

119g
Color

Silver & Customized
OEM/ODM

Support
