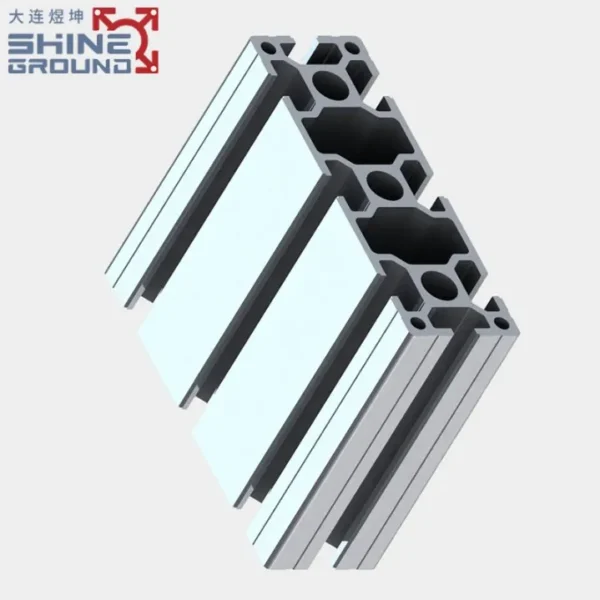

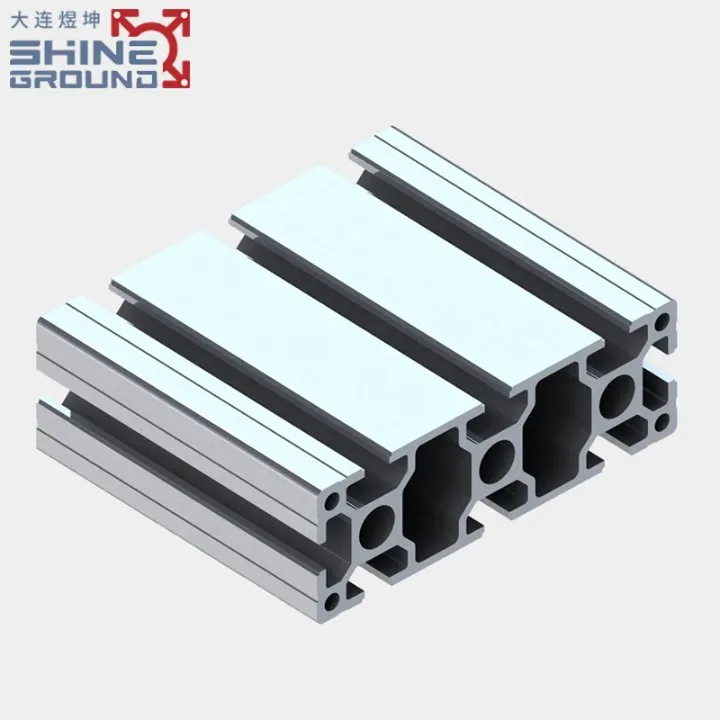

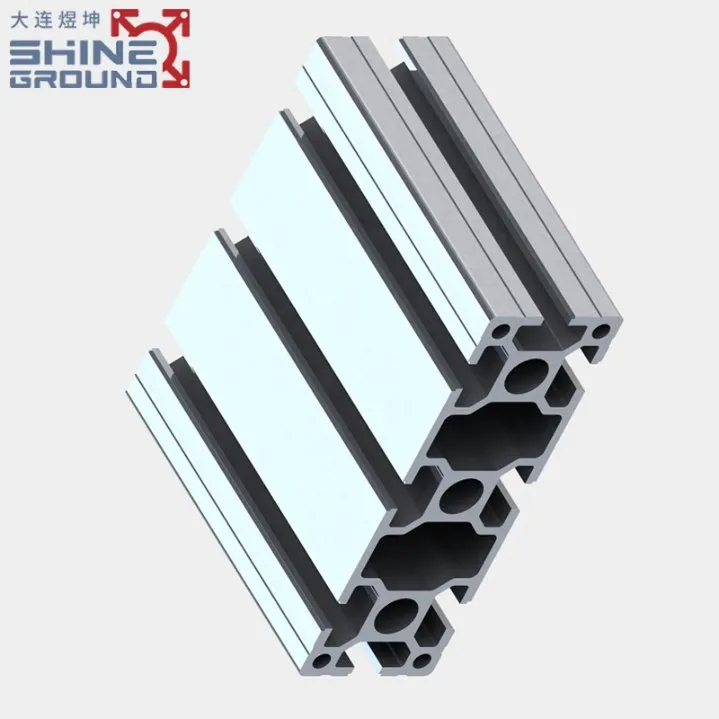

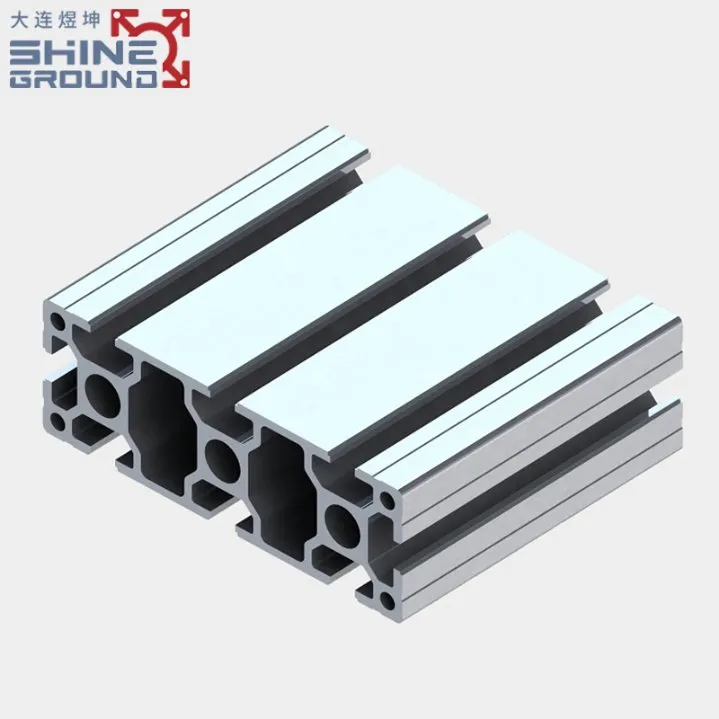

​​Heavy-Duty 40×120 T-Slot Aluminum Profile with 8 Slots​​

Heavy-duty 40x120mm T-slot aluminum profile with 8 slots, made from 6063 T5 alloy. Perfect for structural frameworks, machinery, and industrial assembly.

Product Information
Model NO. SGAP0409 Type Industrial Aluminium Profile
Shape Square Certification CE, ISO
Alloying Ingredient 6063 Color Sliver, Black, Customized
MOQ 1 Meter Surface Finishing Anodic Oxidation

Additional information

Product Detalis

This heavy-duty T-slot aluminum profile is engineered for robust structural applications, featuring a 40×120 mm dimension with 8 precision slots. Constructed from high-strength 6063 T5 aluminum alloy, it offers exceptional load-bearing capacity and versatility for industrial frameworks, automation systems, and machinery enclosures. Its modular design enables easy integration with a wide range of accessories, supporting quick assembly and reconfiguration in demanding environments.

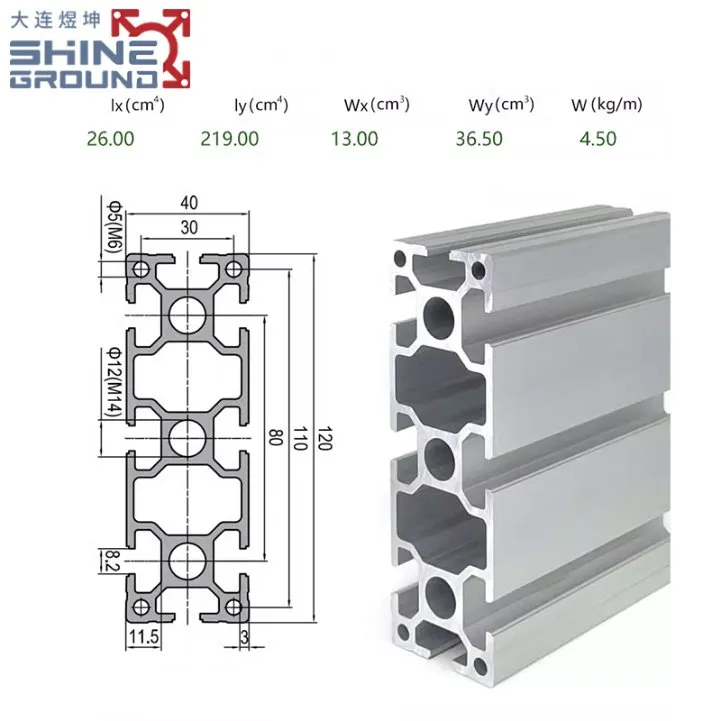

  1. ​Dimensions and Slots​​: 40 mm x 120 mm cross-section with 8 T-slots for flexible component attachment and alignment.
  2. ​Material Strength​​: Made from 6063 T5 aluminum alloy, providing high tensile strength, corrosion resistance, and durability under heavy loads.
  3. ​Structural Performance​​: Heavy-duty construction with optimized mass (4.50 kg/m) and high moment of inertia for superior stability in structural applications.
  4. ​Surface Options​​: Available in mill finish or customizable treatments like anodizing for enhanced aesthetics and protection.
  5. ​Ease of Assembly​​: T-slot design allows for tool-free integration with standard connectors, reducing installation time and costs.
  6. ​Versatile Applications​​: Ideal for industrial manufacturing, robotic systems, workbenches, and safety equipment due to its adaptability and reliability.



Description Moment of Inertia
lx(cm4)
Moment of Inertia
ly(cm4)
Moment of Resistance
Wx(cm3)
Moment of Resistance
Wy(cm3)
Mass
(kg/m)
Part No.
Strut Profile PG40 40×40 R90 2 slots 8.3 8.3 3 1.9 1.3 RT1.11.40.040040.R90.02
Strut Profile P40 40×40 1 slots 10.4 10.4 5.2 5 1.7 RT1.11.40.040040.01
Strut Profile PG40 40×40 2 slots Type A 9.6 9.6 4.5 4.5 1.5 RT1.11.40.040040.02A
Strut Profile PG40 40×40 2 slots Type B 9.6 8.6 4.8 4.3 1.5 RT1.11.40.040040.02B
Strut Profile PG40 40×40 3 slots 9.1 8.6 4.5 4.3 1.5 RT1.11.40.040040.03
Strut Profile PG40 40×40 4 slots Super Light 7.3 7.3 3.6 3.6 1.3 RT1.11.40.040040.04SL
Strut Profile PG40 40×40 4 slots Light 8.6 8.6 4.3 4.3 1.5 RT1.11.40.040040.04L
Strut Profile PG40 40×40 4 slots 9.1 9.1 4.6 4.6 1.6 RT1.11.40.040040.04
Strut Profile PG40 40×40 4 slots Heavy 11.5 11.5 5.8 5.8 2 RT1.11.40.040040.04H
Strut Profile PG40 40×60 4 slots 13.3 27.6 6.6 9.2 2.3 RT1.11.40.040060.04
Strut Profile PG40 40×80 6 slots Super Light 14.3 52 7.2 13 2.3 RT1.11.40.040080.06SL
Strut Profile PG40 40×80 6 slots Light 15.8 59.1 7.9 14.8 2.5 RT1.11.40.040080.06L
Strut Profile PG40 40×80 6 slots 16.6 63.2 8.3 15.8 2.7 RT1.11.40.040080.06
Strut Profile PG40 40×80 6 slots Heavy 22.2 80.8 11.1 20.2 3.6 RT1.11.40.040080.06H
Strut Profile PG40 40×120 8 slots 24.1 194.9 12.1 32.5 3.8 RT1.11.40.040120.08
Strut Profile PG40 40×120 8 slots Heavy 33 255.3 16.5 42.6 5.2 RT1.11.40.040120.08H
Strut Profile PG40 40×160 10 slots 31.6 435.7 15.8 54.5 4.8 RT1.11.40.040160.10
Strut Profile PG40 40×160 10 slots Heavy 43.7 582.2 21.8 72.8 6.8 RT1.11.40.040160.10H
Strut Profile PG40 80×80 8 slots 109.9 109.9 27.5 27.5 4.2 RT1.11.40.080080.08
Strut Profile PG40 80×80 8 slots Heavy 148.2 148.2 37.1 37.1 5.7 RT1.11.40.080080.08H
Strut Profile PG40 80×80 R90 6 slots 109.5 36.4 19.6 10.2 3.4 RT1.11.40.080080.R90.06
Strut Profile PG40 80×80 L 8 slots 111.8 56 20.1 11.9 4 RT1.11.40.080080L.08
Strut Profile PG40 80×120 10 slots 222.1 449.2 55.5 74.8 8.3 RT1.11.40.080120.10
Strut Profile PG40 80×160 12 slots 287.5 975.5 71.9 121.9 10.4 RT1.11.40.080160.10
Strut Profile PG40 80×200 14 slots 353.1 1789.8 88.3 179 12.3 RT1.11.40.080200.14
Strut Profile PG40 120×120 12 slots 659.1 659.1 109.9 109.9 11.5 RT1.11.30.120120.12
