Inner 90° Connector For 28mm Aluminum Lean Tube

Inner 90° Connector For 28mm Aluminum Lean Tube
Inner 90° Connector For 28mm Aluminum Lean Tube

Category:

Tag: , ,

Internal 90° aluminum connector for 28mm lean tubes, enabling rigid corner joints in modular workstations, carts, and racks. Tool-free assembly, reusable design.

Customized services

Aluminum Factory

Spot goods

1-hour reply

Multiple Payment

Flexible Packaging

Ask For A Quote Online
Email Us
Whatsapp

Description

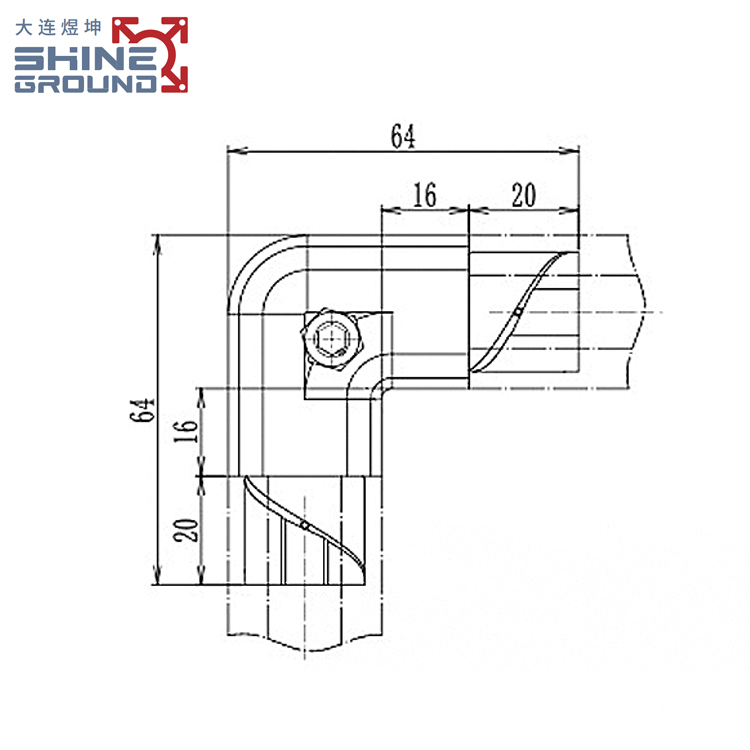

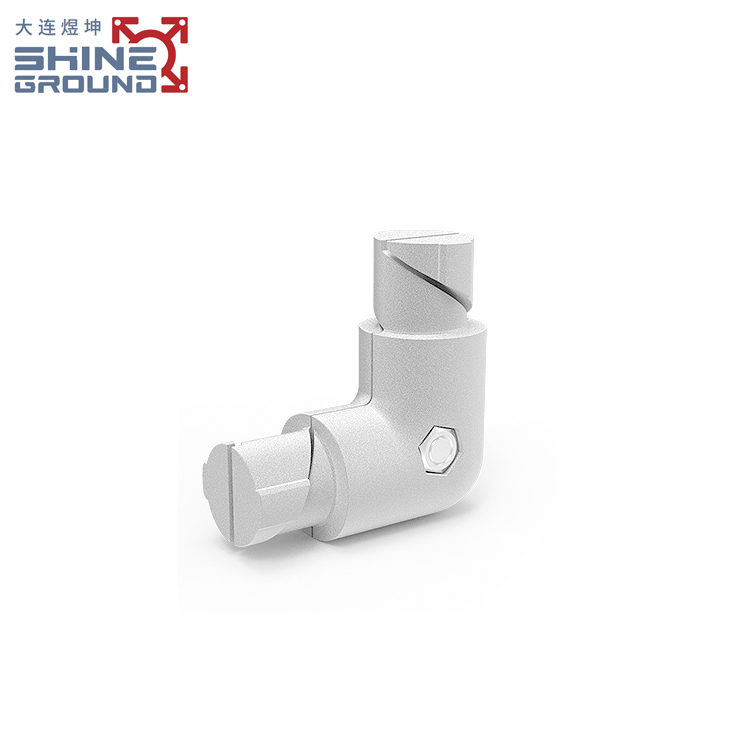

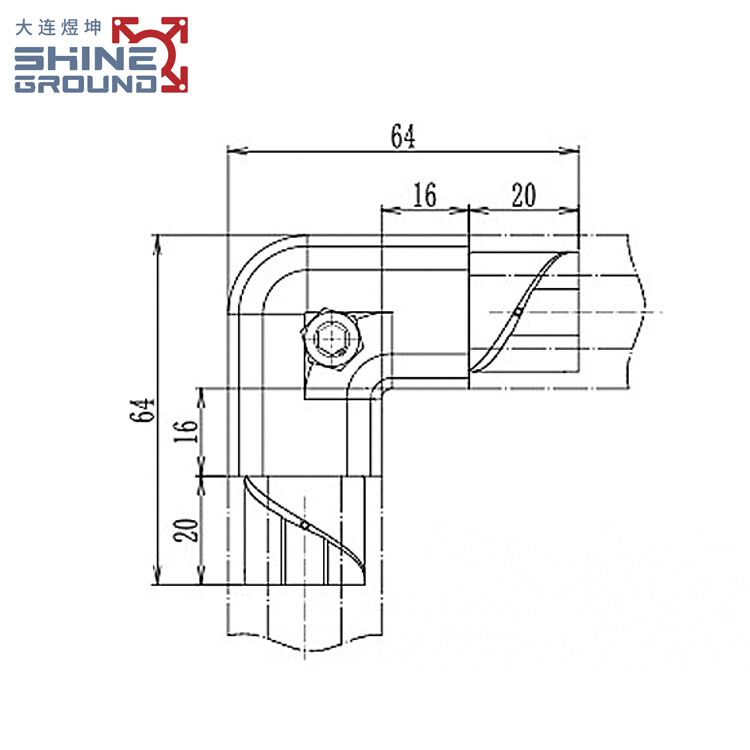

This 28mm Aluminum Alloy Lean Tube Inner 90° Connector is designed for internal corner connections in modular assembly systems. Crafted from lightweight yet durable aluminum alloy, it enables quick construction of rigid 90° angles within lean manufacturing setups such as workbenches, flow racks, and material handling carts. Its inner-type design ensures seamless integration with standard 28mm tubes while maintaining structural integrity under load.

  1. ​​Precision Angle​​: 90° internal bend for compact corner joints in confined spaces.
  2. ​​High-Strength Material​​: Aluminum alloy construction offers corrosion resistance and a 30% weight reduction versus steel equivalents.
  3. ​​Tool-Free Assembly​​: Compatible with standard M6 hex keys for rapid installation/disassembly.
  4. ​​Universal Compatibility​​: Fits all 28mm lean tubes (0.8–1.2mm thickness) without adapters.
  5. ​​Reusable Design​​: Enables reconfiguration of layouts for dynamic production environments.
  6. ​​Smooth Finish​​: Anodized surface minimizes friction during tube insertion and resists scratches.

Additional information

Material

Aluminum Alloy
Surface

Anodic Oxidation
Weight

137g
Color

Silver & Customized
OEM/ODM

Support
