Universal T-Shape External Joining Plate for T-Slot Extrusions (Model: SGFE2540)

Description

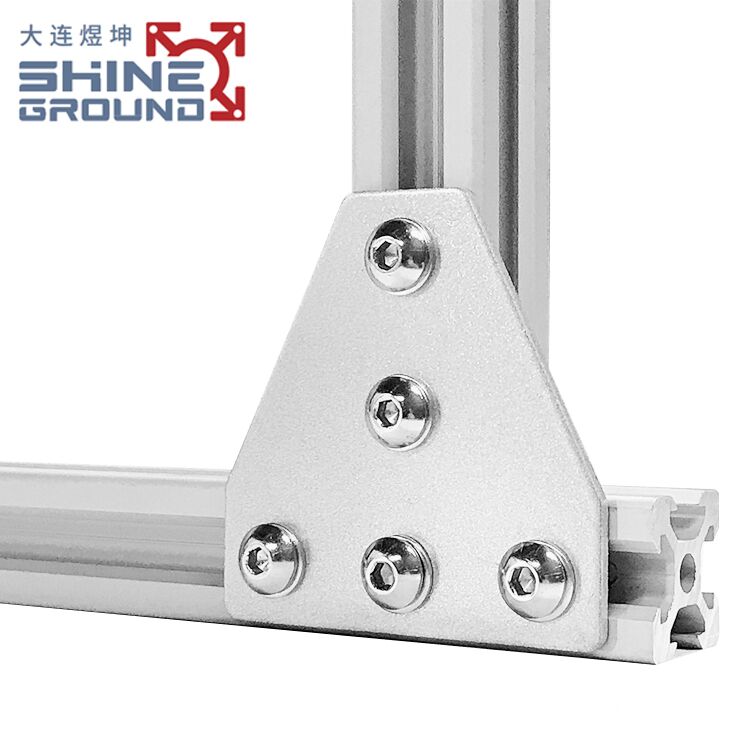

The SGFE2540 Universal T-Shape External Joining Plate is a high-tensile flat tee-junction reinforcement tie engineered to establish rigid, flat 90-degree mid-profile intersections and vertical-to-horizontal column connections within metric T-slot aluminum extrusion frameworks. Heavy-stamped from a commercial structural-grade carbon steel matrix and treated with a resilient, rust-proof industrial zinc plating, this flat T-shaped plate bolts directly onto the exterior faces of intersecting profile joints. This heavy-duty external configuration allows system integrators and automation facility technicians to achieve instantaneous structural squareness at mid-span connections without the time-consuming operational bottlenecks of profile end-tapping, milling, precision counterbore machining, or welding. This makes it a crucial high-volume component for high-load conveyor line center supports, modular warehouse automation shelving racks, protective robotic guarding enclosures, and industrial production line gantry workstations.

By reinforcing the exterior junction perimeter across both the vertical and horizontal axes, the SGFE2540 steel gusset distributes mechanical tension evenly, eliminates structural sagging under massive dead weights, and absorbs dynamic motorized machinery vibration over extended lifecycles.

• Massive Flat Carbon Steel Rigidity: Fabricated from structural-grade steel plate to ensure immense joint rigidity, offering mechanical anti-twist resistance far superior to traditional thin aluminum tie-plates.

• Resilient Rust-Proof Zinc Plating: Treated with a heavy-duty industrial zinc coating to provide superior scratch immunity, preventing metal flaking and chemical corrosion in harsh manufacturing workshop climates.

• Machining-Free Mid-Span Integration: Mounts externally on the flat profile faces using standard metric hex bolts and slide-in T-nuts, slashing assembly hours and allowing fast, damage-free reconfigurations.

• Precision Tension Distribution Design: The T-shaped footprint bridges profile intersections securely, stabilizing long-span frame runs and dampening high-frequency harmonic machine vibrations.

• Universal Multi-Series Slot Alignment: Precision-drilled hole spacing matches standard metric profile arrays perfectly, allowing flawless cross-compatibility across 20, 30, and 40 series profile systems.

Shipping & Supply Capacity

• Continuous Accessories Stock: We maintain over 2,000+ standard parts and framing fasteners in perpetual stock at our production base to secure instant dispatch.

• 48-Hour Rapid Dispatch: Accelerated pallet packaging, industrial-strength bundling, and quick container loading directly out of our direct factory facility.

• Certified Factory Tolerances: 100% precision checked to guarantee exact bolt-hole alignments and effortless track fitment across global modular structures.
