Universal T-Shaped Joining Plate for Aluminum Extrusion Profiles

Description

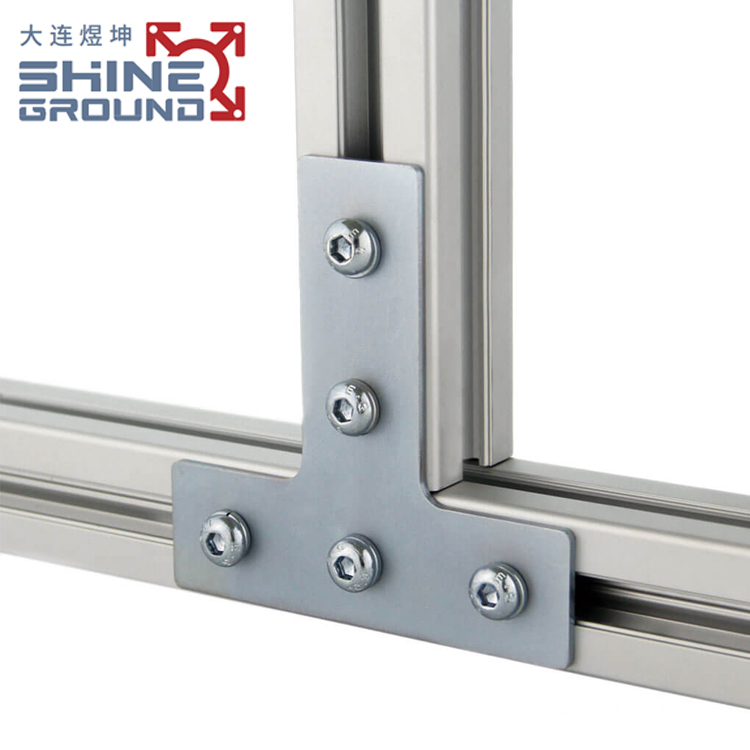

The SGFE2544 Universal T-Shaped Joining Plate is a high-strength, flat exterior tee-junction reinforcement tie engineered to establish rigid, flat 90-degree mid-profile intersections and vertical-to-horizontal column connections within modular metric T-slot and V-slot aluminum extrusion framing systems. Heavy-stamped from a commercial structural-grade carbon steel matrix and treated with a resilient, rust-proof industrial zinc plating, this flat T-shaped plate mounts directly onto the outer faces of intersecting profile joints. This fundamental hardware component allows automation system integrators, factory technicians, and machinery builders to achieve instantaneous structural squareness at mid-span connections without the time-consuming operational bottlenecks of rail end-tapping, milling, precision counterbore machining, or welding. It serves as an essential, high-volume standard component for industrial automation conveyor line center supports, modular warehouse shelving racks, protective robotic guarding gates, and multi-axis production line gantry workstations.

By reinforcing the exterior junction perimeter across both the vertical and horizontal axes, the rigid steel footprint of the SGFE2544 distributes mechanical tension evenly, eliminates structural sagging under massive dead weights, and absorbs dynamic motorized machinery vibration over extended lifecycles.

• Structural Carbon Steel Rigidity: Fabricated from commercial-grade steel plate to offer exceptional tensile alignment and mechanical load-bearing capacity that far outperforms standard thin-gauge options.

• Heavy-Duty Industrial Zinc Plating: Finished with a protective bright zinc layer to ensure superior scratch resistance, wear durability, and long-term chemical immunity in demanding manufacturing workshop climates.

• Machining-Free Mid-Span Integration: Mounts externally on the flat profile faces using standard metric hex bolts and slide-in T-nuts, significantly lowering assembly hours, reducing labor overheads, and allowing damage-free framework reconfigurations.

• Precision Tension Distribution Design: The T-shaped footprint bridges profile intersections securely, distributing mechanical tension uniformly and preventing horizontal joint movement or twisting under continuous structural stress.

• Universal Track Cross-Compatibility: Precision-drilled hole centering matches international standard metric profile arrays perfectly, ensuring a flawless fit across 2020, 3030, and 4040 series layouts.

Shipping & Supply Capacity

• Continuous Accessories Stock: We maintain over 2,000+ standard parts and framing fasteners in perpetual stock at our production base to secure instant dispatch.

• 48-Hour Rapid Dispatch: Accelerated pallet packaging, industrial-strength bundling, and quick container loading directly out of our direct factory facility.

• Certified Factory Tolerances: 100% precision checked to guarantee exact bolt-hole alignments and effortless track fitment across global modular structures.
